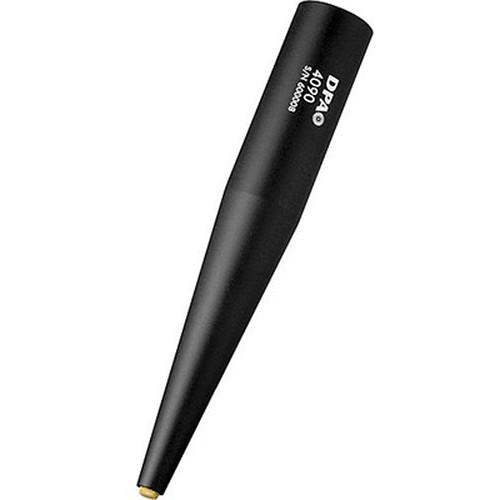

User Manual for DPA Microphones 4090 High Sensitivity Omnidirectional Condenser Microphone Click to enlarge the picture
Contents of the user manual for the DPA Microphones 4090 High Sensitivity Omnidirectional
- Product category: Small Diaphragm Condenser DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Small Diaphragm Condenser
|
User manual for the DPA Microphones 4090 High Sensitivity Omnidirectional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The 4090 High Sensitivity Omnidirectional Condenser Microphone from DPA features a professional, highly sensitive omnidirectional condenser design for capturing vocals, instruments, and ambiance in professional recording and sound reinforcement applications. This sensitive miniature omnidirectional capsule reproduces audio in clear detail without noise or distortion. Additionally, the microphone's contoured frequency response allows for use with guitar, piano, drum overheads, and sound reinforcement measuring. The package includes a microphone clip and a windscreen. - High Sensitivity
- The high sensitivity yields an SPL of 134 dB for accurate reproduction of vocals and instruments at close proximity.
- Omnidirectional Polar Pattern
- The omnidirectional polar pattern reproduces at an even, uniform polar pattern suitable for ambiance and measurement applications.
- Wide Frequency Response
- A wide frequency response results in rich detail and accurate audio reproduction.
In the Box DPA Microphones 4090 High Sensitivity Omnidirectional Condenser Microphone UA0639 Microphone Clip rxbxvrxbcsyvwqzwttveeafd DUA0573 Windscreen for 4090 / 4091 Omni Microphones Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones 4090 High Sensitivity Omnidirectional Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4090 Specs | | | Operating Principle | Pressure Operated | | Transducer | Condenser | | Diaphragm | 0.21" / 5.4 mm | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 71 dB A-Weighted | | Equivalent Noise Level | 23 dB A-Weighted
35 dB ITU-R 468 | | Maximum SPL | 134 dB SPL | | THD | < 1% | | Impedance | 40 Ohms | | Sensitivity | -34 dB at 1 kHz | | CMRR | 40 dB | | Dynamic Range | 100 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2.0 mA | | Operating Voltage | 48 V ± 4 V | | Operating Temperature | -40 to 113°F / -40.00 to 45.00°C | | Operating Humidity | 90 | | Length | 4.80" / 122 mm | | Diameter | 0.75" / 19 mm | | Weight | 1.34 oz / 38 g | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 9.0 x 5.5 x 1.6" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
