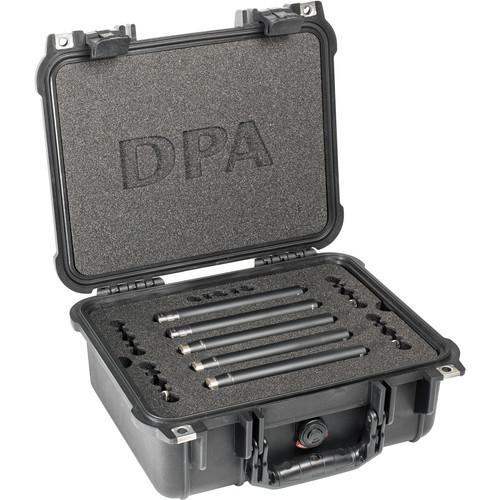

DPA Microphones 5006-11A Surround Microphone Kit

User Manual for DPA Microphones 5006-11A Surround Microphone Kit

• Product category: Small Diaphragm Condenser DPA Microphones
• Brand: DPA Microphones
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for DPA Microphones Small Diaphragm Condenser

Product description

• 4006A Omnidirectional Microphone The 4006A Omnidirectional Microphone from DPA is designed for capturing vocals, close miking instruments, amplifier cabinets, and similar sources in live sound reinforcement and crucial recording applications. It features an omnidirectional condenser element for a linear high-frequency response and detail. Additionally, the microphone allows you to maintain a linear tonal response when closely positioning it near speaker cabinets, percussion, and other instruments. Separately sold acoustic modification accessories, including a nose cone and interchangeable protection grids, allow the 4006A to acoustically transform without changing the phase and sonic character of the microphone. An output stage provides faithful recreations of the original source material and an included microphone clip and windscreen.
  • Maximum linearity, particularly at the high-end
  • Clean, neutral sonic character
  • Omnidirectional polar pattern
  • Can be used for A-B stereo pairs in symphonic concert hall recordings
• 4011A Cardioid Microphone The 4011A Cardioid Microphone from DPA is designed for capturing vocals, close miking instruments, amplifier cabinets, and other sources in live sound reinforcement and crucial recording applications. It features a cardioid condenser element for minimizing off-axis noise in spot-miking applications and an output stage that provides faithful recreations of the original source material. A switchable 20 dB pad provides added headroom and minimizes distortion while capturing transient signals. Additionally, the microphone allows you to maintain a linear tonal response when closely positioning it near speaker cabinets, percussion, and other instruments.
  • Cardioid pickup pattern provides superb separation between sound sources
  • Equally suitable for close-up work on acoustic guitar, grand piano, overheads, percussion, wind instruments, and vocals
  • Flat on-axis frequency response and maximum phase response
  • 20 dB pad switch in the center of the XLR connector to attenuate the output of the microphone

• UA0639 Microphone Clip

• UA0896 Windscreen for 0.75" (19mm) Microphones

• Limited 5-Year Warranty

• UA0639 Microphone Clip

• UA0896 Windscreen for 0.75" (19mm) Microphones

• Limited 5-Year Warranty

Also Includes

• 5 x Mic Holders
• 5 x Mic Grids
• 5 x Mic Windscreens
• Peli Transportation Case
• Limited 5-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 4006A Omnidirectional Microphone

  Operating Principle	Pressure Operated
  Transducer	Condenser
  Diaphragm	0.05' / 16 mm
  Polar Pattern	Omnidirectional
  Frequency Range	10 Hz to 20 kHz
  Signal to Noise Ratio	79 dB A-Weighted
  Equivalent Noise Level	15 dB A-Weighted 27 dB ITU-R 468
  Maximum SPL	147 dB SPL
  Pad	-20 dB
  THD	< 1%
  Impedance	200 Ohms
  Load Impedance	2 kOhms
  Sensitivity	-28 dB
  CMRR	60 dB
  Dynamic Range	124 dB

  Output Connectors	1 x 3-Pin XLR
  Operating Current Consumption	2.8 mA
  Operating Voltage	48 V ± 4 V
  Operating Temperature	-40 to 122°F / -40.00 to 50.00°C
  Operating Humidity	90
  Length	6.69" / 170 mm
  Diameter	0.75" / 19 mm
  Weight	5.75 oz / 163 g

  Box Dimensions (LxWxH)	10.9 x 6.2 x 2.8"

• 4011A Cardioid Microphone

  Operating Principle	Pressure Gradient
  Transducer	Condenser
  Diaphragm	0.75" / 19 mm
  Polar Pattern	Cardioid
  Frequency Range	20 Hz to 20 kHz
  Signal to Noise Ratio	76 dB A-Weighted
  Equivalent Noise Level	18 dB A-Weighted 25 dB ITU-R 468
  Maximum SPL	159 dB SPL
  Pad	-20 dB
  THD	< 1%
  Impedance	200 Ohms
  Load Impedance	2 kOhms
  Sensitivity	-40 dB
  CMRR	60 dB
  Dynamic Range	121 dB

  Output Connectors	1 x 3-Pin XLR
  Operating Current Consumption	2.8 mA
  Operating Voltage	48 V ± 4 V
  Operating Temperature	-40 to 113°F / -40.00 to 45.00°C
  Operating Humidity	90
  Length	6.69" / 170 mm
  Diameter	0.75" / 19 mm
  Weight	5.57 oz / 158 g

  Box Dimensions (LxWxH)	10.7 x 6.1 x 2.9"
