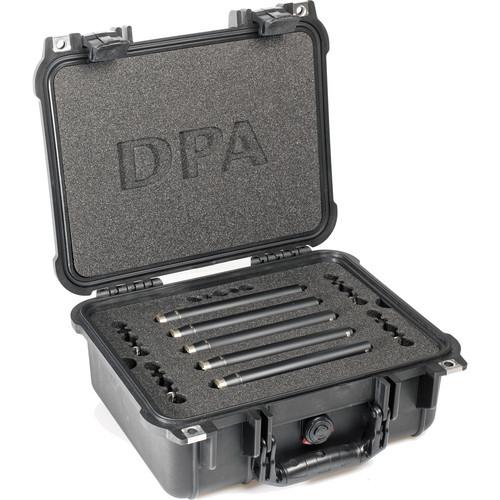

User Manual for DPA Microphones 5006A Surround Microphone Kit Click to enlarge the picture
Contents of the user manual for the DPA Microphones 5006A Surround Microphone Kit
- Product category: Stereo & Specialty Microphones DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Stereo & Specialty Microphones
|
User manual for the DPA Microphones 5006A Surround Microphone Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The 5006A Surround Microphone Kit from DPA Microphones includes five 4006A omnidirectional microphones, matched within 0.5dB on both frequency response and sensitivity. They can be used for AB stereo, Decca Tree, or surround main array recording techniques for orchestral settings. DPA includes mic holders, grids, and windscreens for all mics. The included Peli foam-lined case can be used for transportation and storage. - 5 carefully matched microphones
- Suitable for Decca Tree and rear omni surround array
- Especially useful for acoustically accurate reproductions
- Peli case for transportation and protection
In the Box DPA Microphones 5006A Surround Microphone Kit 5 x 4006A Omnidirectional Microphone srqxadfyruvsvbzzesq Peli Case Holders Grids Windscreens Limited 2-Year Warranty Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones 5006A Surround Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 5006A Specs | Transducer | Pressure, Pre-Polarized Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 10 Hz to 20 kHz | | Sensitivity | Nominal ± 2 dB at 250Hz: 40 mV/Pa; -28 dB re. 1 V/Pa | | EIN | Equivalent Noise Level, A-Weighted: Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A))
Equivalent Noise Level, ITU-R BS.468-4: Typ. 27 dB (max. 29 dB) | | Signal-to-Noise Ratio | Typ. 79 dB(A) | | THD | < 1 % up to 139 dB SPL peak | | Minimum Load Impedance | 2k ohm | | Dynamic Range | Typ. 124 dB | | Max Input Sound Level (SPL) | 147 dB | | Attenuation / Gain | Switchable attenuator: 0 dB / -20 dB | | Output Impedance | < 200 ohm | | Cable Drive Capability | Up to 328' (100m) with DAD6001 XLR adapter | | Output | Connector: 3-pin XLR
Output Balance Principle: Impedance balancing with Active Drive | | Common Mode Rejection | > 60 dB | | Color | Matte Black | | Power Supply | Power Supply: 48 V Phantom Power (+/- 4 V)
Current Consumption: 2.8 mA Output Voltage: > 4 V | | Polarity | +V at Pin 2 for positive sound pressure | | Temperature Range | -40 ° to 122 °F (-40 ° to 50 °C) | | Relative Humidity | Up to 90% | | Dimensions (Diam. x L) | 0.63 x 6.70" (16.00 x 170.00 mm) | | Weight | 5.7 oz (163.0g) | | | | Box Dimensions (LxWxH) | 12.0 x 12.0 x 10.0" |
