User Manual for DPA Microphones 5015A Surround Microphone Kit Click to enlarge the picture
Contents of the user manual for the DPA Microphones 5015A Surround Microphone Kit
- Product category: Stereo & Specialty Microphones DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Stereo & Specialty Microphones
|
User manual for the DPA Microphones 5015A Surround Microphone Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|

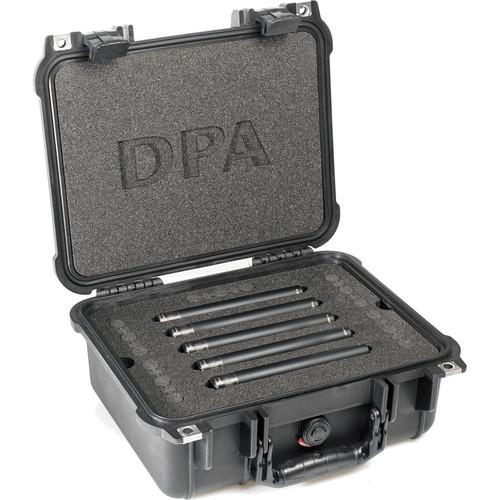

Product description The 5015A Surround Microphone Kit from DPA Microphones includes five 4015A wide cardioid microphones matched within +/-1 dB in both frequency response and sensitivity. They can be used in orchestra and acoustic ensemble tracking where it is desirable to blend directional miking with room sound. DPA includes mic holders, grids, and windscreens for all mics. The included Peli foam-lined case can be used for transportation and storage. - Wide pickup area and natural sound
- 5 carefully matched microphones
- Ambience pickup with convenient directionality
- Peli case for transportation and protection
In the Box DPA Microphones 5015A Surround Microphone Kit 5 x 4015A Wide Cardioid Microphone wfxxqsfbecwdzvewdrtbat Peli Case 5 x Mic Holders 5 x Mic Grids 5 x Mic Windscreens Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones 5015A Surround Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 5015A Specs | Transducer | Pressure, pre-polarized condenser | | Polar Pattern | Wide cardioid | | Frequency Response | 20 Hz to 20 kHz
Frequency range, ± 2 dB: 40 Hz to 20 kHz | | Sensitivity | Nominal ± 2 dB at 1kHz: 10 mV/Pa; -40 dB re. 1 V/Pa | | EIN | Equivalent Noise Level, A-Weighted: Typ. 18 dB(A) re. 20 µPa (max. 20 dB)
Equivalent Noise Level, ITU-R BS.468-4: Typ. 25 dB (correct with the attenuator in 0 dB or -20 dB setting) | | Signal-to-Noise Ratio | Typ. 76 dB(A) | | THD | < 1 % up to 139 dB SPL peak | | Minimum Load Impedance | 2k ohm | | Dynamic Range | Typ. 121 dB | | Max Input Sound Level (SPL) | 159 dB | | Attenuation / Gain | Switchable Attenuator: 0 dB / -20 dB | | Output Impedance | < 200 ohm | | Cable Drive Capability | Up to 328' (100m) with DAD6001 XLR adapter | | Output | Connector: 3-pin XLR
Output Balance Principle: Impedance balancing with Active Drive | | Common Mode Rejection | > 60 dB | | Color | Matte Black | | Power Supply | Power Supply: 48 V Phantom Power (+/- 4 V)
Current Consumption: 2.8 mA Output Voltage: > 4 V | | Polarity | +V at Pin 2 for positive sound pressure | | Temperature Range | -40 ° to 113 °F (-40 ° to 45 °C) | | Relative Humidity | Up to 90% | | Phase | Phase Deviation for Kit: < 10° | | Dimensions (Diam. x L) | 0.75 x 6.70" (19.00 x 170.00 mm) | | Weight | 5.6 oz (158.0 g) | | | | Package Weight | 7.1 lb | | Box Dimensions (LxWxH) | 13.8 x 12.3 x 6.2" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 49 owners. Add your rating and experience with the product.
