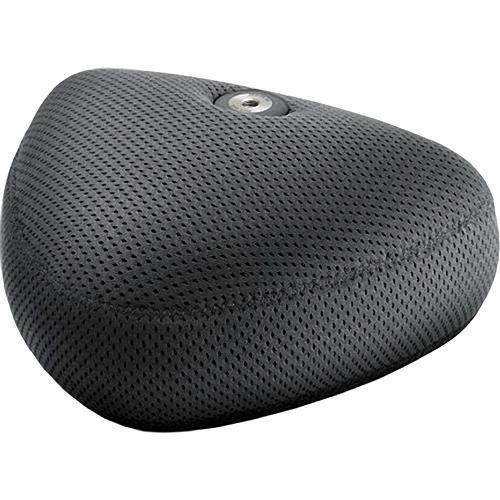

User Manual for DPA Microphones 5100 Mobile 5.1 Surround Microphone Click to enlarge the picture
Contents of the user manual for the DPA Microphones 5100 Mobile 5.1 Surround
- Product category: Stereo & Specialty Microphones DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Stereo & Specialty Microphones
|
User manual for the DPA Microphones 5100 Mobile 5.1 Surround contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The DPA Microphones 5100 is a versatile surround sound microphone, ideal for use in television production and other applications where high-quality audio is of utmost importance. The mic features 5 internal pressure transducers with omnidirectional pickup patterns to capture every sonic detail from your environment. The mic can be mounted on a camera or mic stand, suspended, or handheld via a hand grip. The compact and robust design also provides an excellent resistance to inclement weather.
The 5100 achieves proper channel separation and directionality with the use of proprietary DiPMic (Directional Pressure Microphone) technology, which mounts interference tubes on the left, center, and right capsules, as well as the use of acoustic baffles to increase level accuracy. Each mic transducer has a low sensitivity to wind noise, and offers a consistent frequency response with a wide dynamic range and low distortion.
The rear microphones are optimally spaced from the other capsules to simulate the most natural time arrival differences. The LFE channel is a left/right sum, which is then lowered by 10dB in comparison with the main channels. The 5100 has a multi-pin Lemo connector that provides discrete 5.1 analog output, so no processing is required. The included 16' Mogami breakout cable connects to the Lemo output and converts it into 6 Neutrik 3-pin XLR male connectors. - Lightweight and Rugged
- The compact design provides terrific portability, and allows the mic to be camera or stand mounted, suspended, or handheld with a grip. It is also resistant to inclement weather conditions
- True 5.1 Audio
- The microphone has 5 miniature pressure transducers with low sensitivity to wind noise, a consistent frequency response, large dynamic range, and low distortion
- DiPMic Technology
- Proprietary DiPMic technology achieves proper channel separation and directionality by mounting interference tubes on the left, center, and right capsules. Acoustic baffles preserve level accuracy
- Accurate Timing
- The 3 front mic capsules are time coincident to eliminate comb filtering when mixing down to stereo or mono. The rear mic capsules are properly spaced to simulate natural time arrival differences
- Summed LFE Channel
- The LFE channel is made from a left/right sum, and lowered by 10dB in comparison to the main channels
- 5.1 Analog Output
- The multi-pin Lemo connector provides discrete 5.1 analog output, so no processing is required. A Mogami breakout cable is included that converts the Lemo connector into 6 Neutrik 3-pin XLR male connectors
In the Box DPA Microphones 5100 Mobile 5.1 Surround Microphone Breakout Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones 5100 Mobile 5.1 Surround Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 5100 Specs | Transducer | 5 x Pre-Polarized Pressure Condenser Elements | | Polar Pattern | Omnidirectional | | Frequency Response | L/C/R: 200Hz - 16kHz (±3dB)
LS/RS: 100Hz - 12kHz (±3dB)
LFE: 20Hz - 120Hz (±3dB) | | Dynamic Range (Typical) | L/C/R/LS/RS: 103dB
LFE: 100dB | | Signal-to-Noise Ratio | L/C/R: 76dBA (Typical)
LS/RS: 74dBA (Typical) | | Sensitivity | L/C/R: 26mV/Pa
LS/RS: 28mV/Pa | | Max Input Sound Level (SPL) | 132dB | | Total Harmonic Distortion (THD) | < 1% | | Power Requirements | 48V Phantom Power | | Output Impedance | 50 Ohms | | Output Connectors | 1 x Multi-Pin Lemo with XLR Breakout Cable | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions (WxHxD) | 9.4 x 5.5 x 7.7" (240 x 140 x 195mm) | | Weight | 17.6 oz (500g) | | | | Package Weight | 3.45 lb | | Box Dimensions (LxWxH) | 11.0 x 10.0 x 8.1" |
