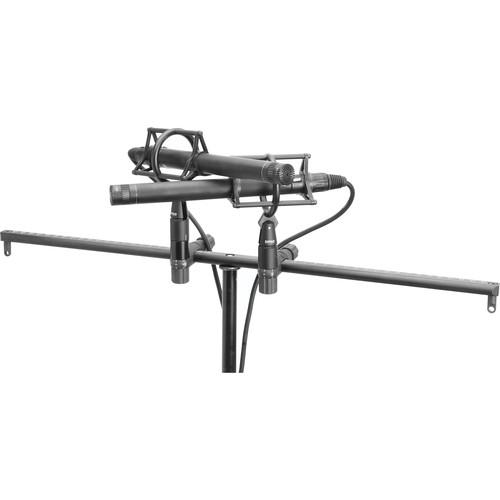

User Manual for DPA Microphones d:dicate 3511A Stereo Kit with 4011A Cardioid Microphones Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:dicate 3511A Stereo Kit
- Product category: Small Diaphragm Condenser DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Small Diaphragm Condenser
|
User manual for the DPA Microphones d:dicate 3511A Stereo Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The d:dicate 3511A Stereo Kit with 4011A Cardioid Microphones by DPA is a kit designed for use when capturing instruments or vocals in recording and live sound reinforcement applications. The 3511A kit includes two frequency matched 4011A cardioid microphones, two UA0897 shock mounts, two UA0896 foam windscreens, two UA0961 microphone holders, one DUA0019 spacer for stereo boom, and one UA0837 stereo boom excluding holders The 4011A Cardioid Microphones are matched within 1 dB on frequency response, sensitivity, and self-noise. These cardioids are linear in their frequency response and allow for several different set-ups, such as ORTF and XY configurations. The microphones can handle high SPL for both close-miking and distant placement. The 3511A kit can be used for piano recordings of jazz or pop, or as an overhead for drums and other instruments. - Cardioid pickup pattern provides maximum separation between sound sources
- Equally suitable for close-up work on acoustic guitar, grand piano, overheads, percussion, wind instruments, and vocals
- Flat on-axis frequency response and high-quality phase response
- 20 dB pad switch in the center of the XLR connector to attenuate the output of the microphone
In the Box DPA Microphones d:dicate 3511A Stereo Kit with 4011A Cardioid Microphones 2 x 4011A Cardioid Microphone 2 x Microphone Shock Mount 2 x UA0896 Windscreen for 0.75" (19mm) Microphones 2 x Microphone Holder DUA0019 Spacer for Stereo Boom 0.75 Stereo Boom Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:dicate 3511A Stereo Kit with 4011A Cardioid Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 3511A Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 0.75" / 19 mm | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 76 dB A-Weighted | | Equivalent Noise Level | 18 dB A-Weighted
25 dB ITU-R 468 | | Maximum SPL | 159 dB SPL | | THD | < 1% | | Impedance | 200 Ohms | | Load Impedance | 2 kOhms | | Sensitivity | -40 dB | | CMRR | 60 dB | | Dynamic Range | 121 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2.8 mA | | Operating Voltage | 48 V | | Operating Temperature | -40 to 113°F / -40.00 to 45.00°C | | Operating Humidity | 90 | | Length | 8.07" / 205 mm | | Diameter | 0.75" / 19 mm | | Weight | 5.57 oz / 158 g |
