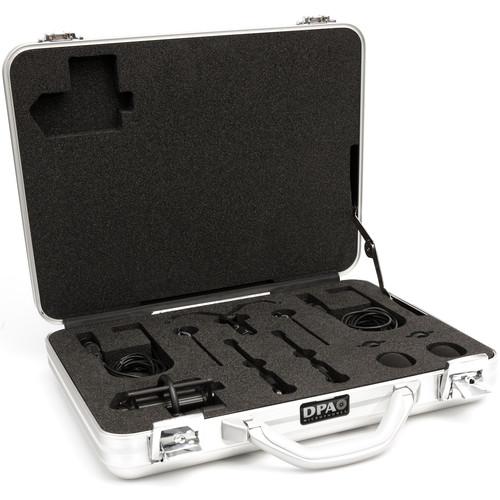

DPA Microphones d:dicate 3511ES Stereo Kit

User Manual for DPA Microphones d:dicate 3511ES Stereo Kit with 4011ES Cardioid Mics

• Product category: Small Diaphragm Condenser DPA Microphones
• Brand: DPA Microphones
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for DPA Microphones Small Diaphragm Condenser

Product description

• d:dicate 4011ES Cardioid Microphone with Active Side Cable The d:dicate 4011ES Cardiod Microphone with Active Side Cable from DPA is designed for capturing audio. It can be used with vocals, close miking instruments, amplifier cabinets, and similar sources in live sound reinforcement and recording applications. The microphone features a cardioid condenser element for minimizing off-axis noise in spot-miking applications, allowing for use in close-miking scenarios and to minimize bleed from other instruments. The 4011ES is powered by 48V of phantom power and offers a frequency range of 20 Hz to 20 kHz. It is capable of handling high SPLs without distortion and uses an MMP preamp with a 12mm XLR cable. A foam windscreen and SM4000-C suspension mount are included.
  • Cardioid pickup pattern provides maximum separation between sound sources
  • Equally suitable for close-up work on acoustic guitar, grand piano, overheads, percussion, wind instruments, and vocals
  • Flat on-axis frequency response and phase response
  • Combine with additional separately sold DPA capsules or preamps for new configuration
• Compact XY/ORTF Stereo Holder Get the sound you want, by having the right microphone mount and the right mics. DPA designs this Compact XY/ORTF Stereo Holder for advanced sound reproduction. It brings boom sound, mono compatibility, and convenient compatibility with windscreens. In ORTF stereo, use this holder for close miking pianos, overheads for drum kits, orchestras, and ambient sound recordings.The holder allows you to arrange mics in both a coincident XY stereo configuration as well as in a near-coincident ORTF combined time and intensity difference stereo configuration. It comes with three common international-standard threads to easily secure the holder shaft to a range of microphone stands. DPA delivers extreme quality; start here.
• Microphone Shock Mount The DPA Microphone Shock Mount UA0897 is designed for use in environments where vibration levels are unusually high. The shock mount features anti-vibration technology that minimizes movement, but does not affect acoustic quality. This unit is ideally suited for stand-mounted use in the studio or hand-held boom applications. This model comes standard with DDS0731 Rubber Mounts for 19mm microphones. It is also fitted with a thread adapter that accepts three of the most popular international standard threads used on microphone stands.
  Less Movement, Better Quality
  • Use this shock mount to reduce vibrations while recording, and improve the acoustic quality of your sound work.
• EXY4000 Extension for Compact Stereo Holder The DPA Microphones EXY4000 Extension for Compact Stereo Holder is intended for use with compact stereo holders (i.e., the DPA CXY4000 and CXO4000) if rubber suspension is needed.
  Rubber Suspension
  • Intended for use with the CXY4000 and CXO4000 compact stereo holders if rubber suspension is needed, the EXY4000 has a 0.75" outside diameter and fits directly into the UA0897 Shock Mount, the RSM4000 Shock Mount for Windjammer, or the WSM4000 WINDPAC Shock Mount.
• DUA0041 Foam Windscreen for d:dicate Microphones with Active Cable The DUA0041 from DPA is a foam windscreen for d:dicate microphones with an active cable. It can be used to provide protection against wind and pop noises without attenuating the higher frequencies beyond the tolerance field of the microphone's frequency response. In addition, it protects the mic capsule from moisture.
• SM4000-C Suspension Mount for MMP-C Preamplifier The DPA Microphones SM4000-C Suspension Mount is designed for compact, reference standard microphones with an MMP-C pre-amplifier. This mount allows the microphone to hang from its cable and then be oriented in any direction desired by bending the holder.
• GM1500 Gooseneck Mount Meant to be mounted in a piano frame (or any other magnetic surface), the DPA GM1500 Gooseneck Mount is a combination of magnet mount gooseneck and shock mount. Both omni-directional and directional microphones that are compact as well as larger fit this line. Based on the Rycote Lyre suspension system, almost any microphone can be used simply by adding another Lyre rubber piece. The shock mount is extremely flexible, the holders can be mounted facing both upside and downside and the poles can be adjusted by pushing them back and forth. The DAO4010 microphone cable using Mogami compact cable and an ultra slim DPA XLR housing will give an excellent visual elegance, adding only a few millimeters further length to the microphone. Most of the connector will be locked and hidden in the microphone itself.
• MB1500 Magnet Base for Microphone Holder The MB1500 Magnet Base from DPA Microphones is designed for use with a microphone holder.

• Foam Windscreen

• SM4000-C Suspension Mount for MMP-C Preamplifier

• Limited 5-Year Warranty

• 90-Day Warranty

• Shock Mount

• Two-Year Limited Warranty

• 2-year limited warranty

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• 2-Year Warranty

• Limited 2-Year Warranty

Also Includes

• 2 x MC4001 Microphone Clip for MMP-E Active Cable
• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• d:dicate 4011ES Cardioid Microphone with Active Side Cable

  Operating Principle	Pressure Gradient
  Transducer	Condenser
  Diaphragm	0.75" / 19 mm
  Polar Pattern	Cardioid
  Frequency Range	20 Hz to 20 kHz
  Signal to Noise Ratio	76 dB A-Weighted
  Equivalent Noise Level	18 dB A-Weighted 25 dB ITU-R 468
  Maximum SPL	144 dB SPL
  THD	< 1%
  Impedance	100 Ohms
  Load Impedance	2 kOhms
  Sensitivity	-40 dB at 1 kHz
  CMRR	40 dB
  Dynamic Range	121 dB

  Output Connectors	1 x 3-Pin XLR
  Operating Current Consumption	3.5 mA
  Operating Voltage	48 V ± 4 V
  Operating Temperature	-40 to 113°F / -40.00 to 45.00°C
  Operating Humidity	90
  Length	1.38" / 35 mm
  Diameter	0.75" / 19 mm
  Weight	3.84 oz / 109 g

  Box Dimensions (LxWxH)	12.0 x 7.7 x 3.8"

• Compact XY/ORTF Stereo Holder

  Box Dimensions (LxWxH)	7.4 x 4.6 x 2.7"

• Microphone Shock Mount

  Construction	Not Specified by Manufacturer
  Finish	Black

  Box Dimensions (LxWxH)	7.48 x 4.646 x 2.677"

• EXY4000 Extension for Compact Stereo Holder

  Diameter	0.75" (19mm)
  Construction	Rubber

  Box Dimensions (LxWxH)	5.0 x 4.0 x 1.0"

• DUA0041 Foam Windscreen for d:dicate Microphones with Active Cable

  Material

  Foam

  Box Dimensions (LxWxH)	6.0 x 6.0 x 2.0"

• SM4000-C Suspension Mount for MMP-C Preamplifier

  Box Dimensions (LxWxH)	6.0 x 6.0 x 4.0"

• GM1500 Gooseneck Mount

  Box Dimensions (LxWxH)	7.4 x 4.6 x 2.8"

• MB1500 Magnet Base for Microphone Holder

  Box Dimensions (LxWxH)	6.0 x 6.0 x 2.0"
