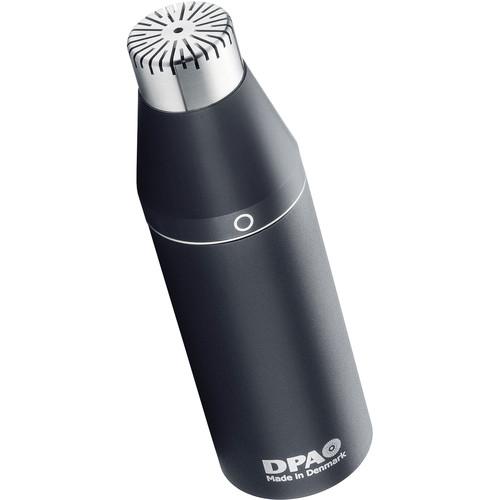

User Manual for DPA Microphones d:dicate 4007C Compact Omnidirectional Microphone Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:dicate 4007C Compact Omnidirectional
- Product category: Small Diaphragm Condenser DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Small Diaphragm Condenser
|
User manual for the DPA Microphones d:dicate 4007C Compact Omnidirectional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The 12mm d:dicate 4007C Compact Omnidirectional Microphone by DPA features a high-performance condenser design for capturing audio. It produces natural and non-distorted audio capture in various scenarios, including recording studios, live sound situations, theater orchestras, and similar applications. The microphone offers an omnidirectional polar pattern and a frequency range of 10 Hz to 40 kHz. It is capable of handling up to 153 dB SPL peak before clipping occurs and is suitable for recording drums, percussion, and brass instruments. The 4007C is powered by 48V of phantom power and provides a dynamic range of 124 dB from the noise floor. A microphone clip and foam windscreen are included. - Compact Pre-Amplifier
- The compact "C" pre-amplifier measures 41mm in length and provides clean transparent sound.
- Extreme Peak Handling Capability
- The 4007C is designed for accurate, transparent reproduction of signals that exhibit high peak response at close range. It can be used for close capturing of drums, percussion, brass, guitar cabinets, and similar applications.
- Linear Frequency Response
- A wide, linear frequency response results in accurate, transparent signal reproduction at close or far proximity.
- Omnidirectional Polar Pattern
- The omnidirectional polar pattern provides a generous pick-up area at the direct-axis of the capsule for even frequency reproduction at the off-axis and direct sections of the microphone.
In the Box DPA Microphones d:dicate 4007C Compact Omnidirectional Microphone (12mm) UA0658 Windscreen for 4004 and 4007 Microphones wsdryeqzze UA0639 Microphone Clip Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:dicate 4007C Compact Omnidirectional Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4007C Specs | | | Operating Principle | Pressure Operated | | Transducer | Condenser | | Diaphragm | 0.47" / 12 mm | | Polar Pattern | Omnidirectional | | Frequency Range | 10 Hz to 40 kHz | | Signal to Noise Ratio | 70 dB A-Weighted | | Equivalent Noise Level | 24 dB A-Weighted
36 dB ITU-R 468 | | Maximum SPL | 153 dB SPL | | THD | < 0.5% | | Impedance | 100 Ohms | | Sensitivity | -40 dB at 250 Hz | | CMRR | 50 dB | | Dynamic Range | 124 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2.8 mA | | Operating Voltage | 48 V ± 4 V | | Operating Temperature | -40 to 122°F / -40.00 to 50.00°C | | Operating Humidity | 90 | | Length | 2.52" / 64 mm | | Diameter | 0.75" / 19 mm | | Weight | 2.22 oz / 63 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 12.0 x 8.0 x 4.0" |
