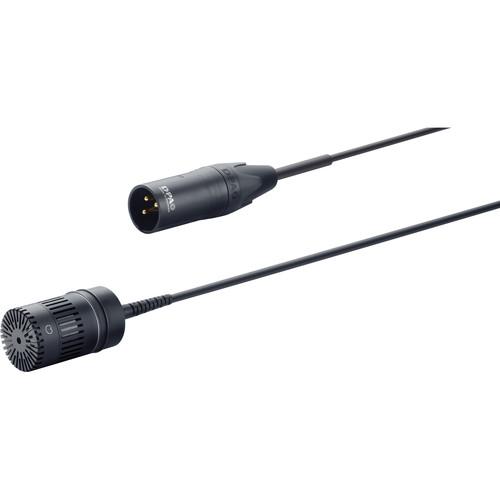

User Manual for DPA Microphones d:dicate 4011ER Cardioid Microphone with Active Rear Cable Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:dicate 4011ER Cardioid Microphone
- Product category: Small Diaphragm Condenser DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Small Diaphragm Condenser
|
User manual for the DPA Microphones d:dicate 4011ER Cardioid Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The d:dicate 4011ER Cardiod Microphone with Active Rear Cable from DPA is designed for capturing audio. It can be used with vocals, close miking instruments, amplifier cabinets, and similar sources in live sound reinforcement and recording applications. The microphone features a cardioid condenser element for minimizing off-axis noise in spot-miking applications, allowing for use in close-miking scenarios and to minimize bleed from other instruments. The 4011ER is powered by 48V of phantom power and offers a frequency range of 20 Hz to 20 kHz. It is capable of handling high SPLs without distortion and uses an MMP preamp with a 12mm XLR cable. A foam windscreen and SM4000-C suspension mount are included. - Cardioid pickup pattern provides maximum separation between sound sources
- Equally suitable for close-up work on acoustic guitar, grand piano, overheads, percussion, wind instruments, and vocals
- Flat on-axis frequency response and phase response
- Combine with additional separately sold DPA capsules or preamps for new configuration
In the Box DPA Microphones d:dicate 4011ER Cardioid Microphone with Active Rear Cable Foam Windscreen SM4000-C Suspension Mount for MMP-C Preamplifier xdywqqs Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:dicate 4011ER Cardioid Microphone with Active Rear Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4011ER Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 0.75" / 19 mm | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 76 dB A-Weighted | | Equivalent Noise Level | 18 dB A-Weighted
25 dB ITU-R 468 | | Maximum SPL | 144 dB SPL | | THD | < 1% | | Impedance | 100 Ohms | | Load Impedance | 2 kOhms | | Sensitivity | -40 dB at 1 kHz | | CMRR | 40 dB | | Dynamic Range | 121 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.5 mA | | Operating Voltage | 48 V ± 4 V | | Operating Temperature | -40 to 113°F / -40.00 to 45.00°C | | Operating Humidity | 90 | | Length | 1.38" / 35 mm | | Diameter | 0.75" / 19 mm | | Weight | 3.84 oz / 109 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 12.0 x 8.0 x 4.0" |
