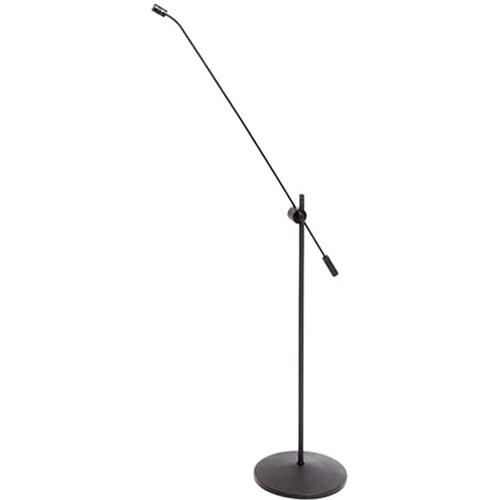

User Manual for DPA Microphones d:dicate 4011FJS Cardioid Microphone with 75cm Boom Floor Stand Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:dicate 4011FJS Cardioid Microphone
- Product category: Small Diaphragm Condenser DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Small Diaphragm Condenser
|
User manual for the DPA Microphones d:dicate 4011FJS Cardioid Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The d:dicate 4011FJS Cardioid Microphone from DPA features a 75cm boom floor stand and is designed for capturing professional-grade audio. It can be used in venues such as lectures, live stage, studio, public speaking events, and similar applications. The microphone features a cardioid capsule and a frequency range of 20 to 20 kHz. It is powered by 48V of phantom power. When used for musical instruments, the microphone's capsule is a reference standard for its low-distortion and wide dynamic range. When used for voice scenarios, the 4011FJS microphone sounds natural and provides clear and accurate sound. The cardioid polar pattern also provides a noise rejecting quality for clear and intelligible speech. Additionally, no equalization is needed to remove microphone artifacts. A 75cm floor stand, a microphone clip, and a windscreen are included. - Comes with 75cm floor stand
- Voice intelligibility straight out of the mic, no equalization needed to remove microphone artifacts
- The capsule is a reference standard for low-distortion and linear approach when used with musical instruments
- Provides an accurate and transparent sound
In the Box DPA Microphones d:dicate 4011FJS Cardioid Microphone with 75cm Boom Floor Stand MMC4011 Cardioid Microphone Capsule DUA0250 Floor Base DUA0600 Stand Extension SJS4001 Swivel Joint, Single MMP-F75 Modular Active Boom, 75cm Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:dicate 4011FJS Cardioid Microphone with 75cm Boom Floor Stand in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4011-DF-F-B01-120 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 0.75" / 19 mm | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 76 dB A-Weighted | | Equivalent Noise Level | 18 dB A-Weighted
25 dB ITU-R 468 | | Maximum SPL | 144 dB SPL | | THD | < 1% | | Impedance | 100 Ohms | | Load Impedance | 2 kOhms | | Sensitivity | -40 dB at 1 kHz | | CMRR | 40 dB | | Dynamic Range | 121 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.5 mA | | Operating Voltage | 48 V ± 4 V | | Operating Temperature | -40 to 113°F / -40.00 to 45.00°C | | Operating Humidity | 90 | | Length | 1.38" / 35 mm | | Diameter | 0.75" / 19 mm |
