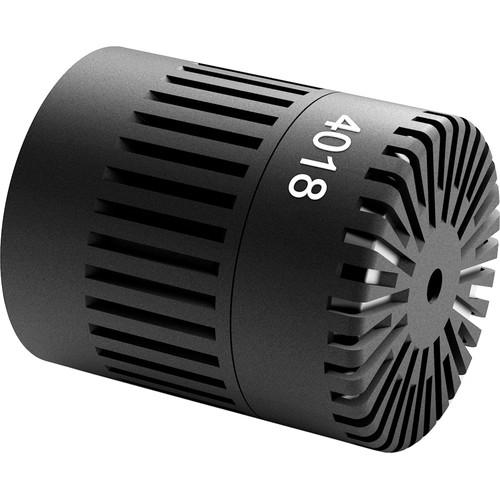

User Manual for DPA Microphones d:dicate MMC4018 Supercardioid Microphone Capsule Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:dicate MMC4018 Supercardioid Microphone
- Product category: Modular Microphone Components DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Modular Microphone Components
|
User manual for the DPA Microphones d:dicate MMC4018 Supercardioid Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The MMC-4018 from DPA is a modular microphone capsule that has a highly directional supercardioid pickup pattern with a smooth and uniform off-axis frequency response. It can be used in a broad range of broadcast/ENG/film long-distance miking applications for booming, dialogue, podiums, interviews, and more. In addition, it can be used as a spot or hanging mic for orchestra recordings too. The capsule's supercardioid shape is frequency-independent, securing an identical sound color around the microphone. The usual rear lobe heard on most supercardioids is minimized on the 4018 capsule, which makes it much more isolated without the sudden frequency-dependent peaks and dips. Combine the MMC4018 with any of the pre-amps in the d:dicate modular series to fit your needs (sold separately). In the Box DPA Microphones d:dicate MMC4018 Supercardioid Microphone Capsule Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:dicate MMC4018 Supercardioid Microphone Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones MMC4018 Specs | Directional Pattern | Supercardioid | | Principle of Operation | Pressure gradient | | Cartridge Type | Pre-polarized condenser | | Frequency Range | 20 Hz to 20 kHz
± 2 dB at 30 cm: 40 Hz to 18 kHz | | Sensitivity | Nominal ± 2 dB at 1 kHz: 12 m V/Pa; -38.4 dB re. 1 V/Pa | | Equivalent Noise Level | A-weighted: Typ. 16 dB (A) re. 20 µPa max. 19 dB | | Signal to Noise Ratio | (A-weighted), re. 1 kHz at 1 Pa 94 dB SPL: Typ. 78 dB (A) | | Max SPL Level | 157 db peak before clipping | | Temperature Range | -40 to 113° F (-40 to 45° C) | | Relative Humidity | Up to 90% | | Capsule Size | 0.75" (19 mm) | | Dimensions (L x Diam) | 0.9 x 0.8" (23 x 19 mm) | | Weight | 0.6 oz (18 g) | | | | Box Dimensions (LxWxH) | 6.0 x 6.0 x 2.0" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
