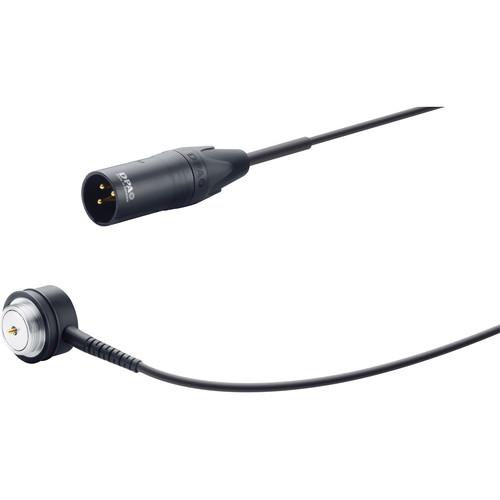

User Manual for DPA Microphones d:dicate MMP-ES Modular Active Side Cable Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:dicate MMP-ES Modular Active
- Product category: Modular Microphone Components DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Modular Microphone Components
|
User manual for the DPA Microphones d:dicate MMP-ES Modular Active contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The d:dicate MMP-ES Modular Active Side Cable by DPA Microphones is a microphone preamp. It is used with any d:dicate modular capsule for capturing audio in applications such as with hanging mics or low-profile table or instrument mics. The MMP-ES features a high quality preamp built with a 12mm housing and a 3-pin XLR connector. The capsule attaches to a cable with a length of 3 meters or optionally up to 30 meters. The preamp features impedance balancing with active drive to reject radio frequency interference. This model is built with a side mounted cable. - The preamp is ultra transparent and features the DPA designed impedance balancing with active drive to reject radio frequency interference
- Can be combined with any DPA d:dicate modular capsule
In the Box DPA Microphones d:dicate MMP-ES Modular Active Side Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:dicate MMP-ES Modular Active Side Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones MMP-ES Specs | Output Connector | XLR-3M, pin 1 shield, pin 2 signal + phase, pin 3 - phase | | Low-Cut Frequency | -3 dB: 15 Hz | | Noise | With Shorted Input, A-weighted: 0.6 µV | | Output Voltage | RMS: 2.2 V
Peak: 3.1 V | | Type Of Electronic Circuit | Active | | Total Harmonic Distortion (THD) | At 1VRMS, 1kHz: < 0.2 % | | Dynamic Range | 131 dB | | Output Impedance | 100 Ω | | Cable Drive Capability | 324' (100 m) | | Minimum Load Impedance | 2 kΩ | | Common Mode Rejection Ratio | > 40 dB | | Power Supply | For Full Specifications: 48 V Phantom power (± 4 V) | | Current Consumption | 3.5 mA | | Output Balance Principle | Impedance balancing | | Temperature Range | -40 to 113°F (-40 to 45°C) | | Relative Humidity | Up to 90 % | | Dimensions (L x Diam) | 118 x 0.75" (3000 x 19 mm) | | Weight | 3.2 oz (91 g) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.0 x 6.0 x 3.0" |
