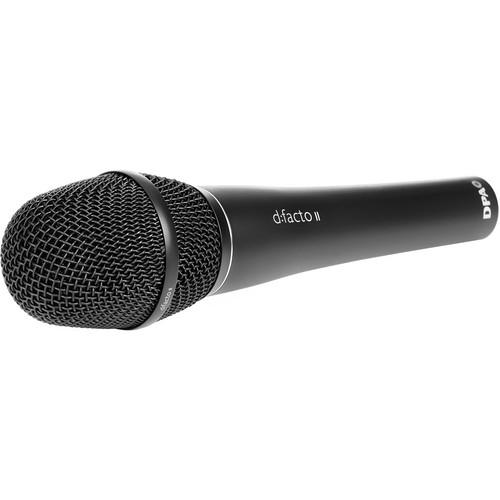

User Manual for DPA Microphones d:facto II Supercardioid Vocal Microphone with DPA Handle Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:facto II Supercardioid Vocal
- Product category: Handheld Performance Microphones DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Handheld Performance Microphones
|
User manual for the DPA Microphones d:facto II Supercardioid Vocal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The matte black d:facto II Vocal Mic with DPA Handle from DPA is a professional vocal microphone. It can be used to capture audio in several environments for applications such as live stage, theater, houses of worship, and more. The d:facto II supercardioid mic capsule features a three-stage pop protection grid and has a built-in shock mount. It uses a pre-polarized condenser capsule and has a frequency range of 20 Hz to 20 kHz. The removable DPA handle is built with an XLR connector and is powered by 48V phantom power. In addition, you can use the d:facto II capsule without the DPA handle with most popular wireless systems such as Sony, Lectrosonics, Shure, Wisycom, and Sennheiser; however, an optional adapter (sold separately) is required. The flexibility gives you an option to choose either a wired DPA handle, or the professional wireless system, with no loss of sound quality. In the Box DPA Microphones d:facto II Supercardioid Vocal Microphone with DPA Handle (Matte Black) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:facto II Supercardioid Vocal Microphone with DPA Handle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4018V-B-B01 Specs | Directional Pattern | Supercardioid | | Principle of Operation | Pressure gradient | | Cartridge Type | Pre-polarized condenser | | Frequency Range | 20 Hz to 20 kHz
±2 dB, at 4.7" (12 cm):
100 Hz to 16 kHz with 3 dB soft boost at 12 kHz
Permanent 3rd order low-cut filter (-3 dB at 80 Hz) | | Sensitivity | ±2 dB at 1 kHz (Nominal): 5 mV/Pa; -46 dB re. 1 V/Pa | | Equivalent Noise Level | A-Weighted:
Typical: 19 dBA re. 20 µPa
Maximum: 21 dBA | | S/N Ratio | A-weighted, re. 1 kHz at 1 Pa (94 dB SPL): Typical 75 dBA | | Total Harmonic Distortion (THD) | Not specified by manufacturer | | Dynamic Range | Typical 120 dB | | Maximum Sound Pressure Level (SPL) | Peak Before Clipping: 160 dB | | Output | Not specified by manufacturer | | Minimum Load Impedance | Not specified by manufacturer | | Cable Drive Capability | Not specified by manufacturer | | Output Balance Principle | Not specified by manufacturer | | Common Mode Rejection Ratio | Not specified by manufacturer | | Output Voltage | Not specified by manufacturer | | Polarity | Not specified by manufacturer | | Power Supply | 48 V Phantom power (±4 V) | | Dimensions | Capsule Diameter: 0.75" (19 mm)
Microphone (Φ x L): 2.05 x 8.10" (52 x 205 mm) | | Weight | Microphone: 10.9 oz (309 g) | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 9.7 x 5.9 x 2.9" |
