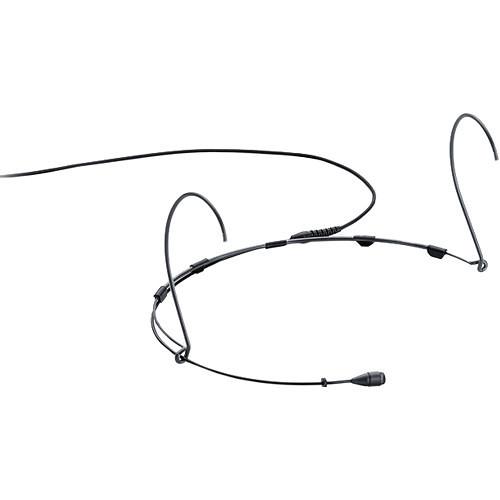

User Manual for DPA Microphones d:fine 4066 Omnidirectional Headset Microphone with a Microdot Termination Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:fine 4066 Omnidirectional Headset
- Product category: Microphones for Wireless DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Microphones for Wireless
|
User manual for the DPA Microphones d:fine 4066 Omnidirectional Headset contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The black d:fine 4066 Omnidirectional Headset Microphone with a Microdot Termination from DPA Microphones is designed for theater applications and can be mounted on either left or right ear, depending on your preference. It features a double vent protection system that works in tandem with a drop stopper and water-resistant materials in the mic to help prevent damage from humidity. High- and soft-boost grids along with 5 foam windscreens are included. In the Box DPA Microphones d:fine 4066 Omnidirectional Headset Microphone with a Microdot Termination (Black) High-Boost Grid Soft-Boost Grid 5 x Foam Windscreens Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:fine 4066 Omnidirectional Headset Microphone with a Microdot Termination in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4066 Specs | Polar Pattern | Omnidirectional | | Principle of Operation | Pressure | | Cartridge Type | Pre-polarized condenser element with vertical diaphragm | | Frequency Range | Soft-Boost Grid: 20 Hz to 20 kHz +/-2 dB, 3 dB soft boost at 8 to 20 kHz
High-Boost Grid: 20 Hz to 20 kHz +/-2 dB, 10 dB boost at 12 kHz | | Sensitivity | 6 mV/Pa, -44 dB re. 1 V/Pa (nominal, +/-3 dB at 1 kHz) | | Equivalent Noise Level | A-Weighted:
Typical: 26 dBA re. 20 µPa
Maximum: 28 dBA
ITU-R BS.468-4:
Typical: 38 dB
Maximum: 40 dB | | S/N Ratio | 68 dBA, 1 kHz at 1 Pa (94 dB SPL): | | Total Harmonic Distortion (THD) | <1% THD up to 123 dB SPL peak
<1% THD up to 120 dB SPL RMS sine | | Dynamic Range | Typical 97 dB | | Maximum Sound Pressure Level (SPL) | Peak Before Clipping: 144 dB | | Output Impedance | 30 to 40 Ω | | Cable Drive Capability | Up to 984' (300 m) | | Connector | Microdot termination | | Temperature Range | 14 to 113°F (-10 to 45°C) | | Relative Humidity | Up to 90% | | Cable Length | 3.9' (1.2 m)
Cable Diameter: 0.06" (1.6 mm) | | Microphone Diameters | 0.21" (5.4 mm) | | Weight | 0.5 oz (14 g) | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 8.0 x 6.0 x 1.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 76 owners. Add your rating and experience with the product.
