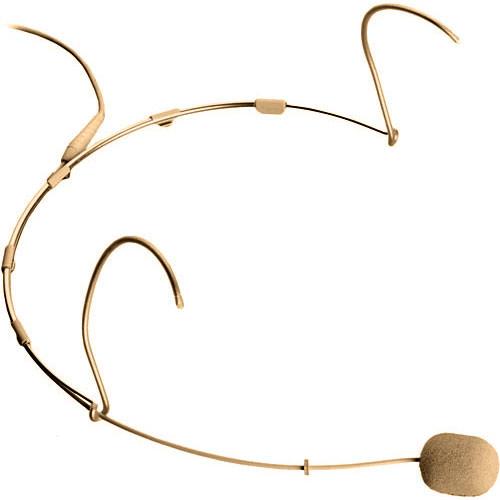

User Manual for DPA Microphones d:fine 4088 Directional Headset Microphone with a Microdot Connector Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:fine 4088 Directional Headset
- Product category: Microphones for Wireless DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Microphones for Wireless
|
User manual for the DPA Microphones d:fine 4088 Directional Headset contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The brown d:fine 4088 Directional Headset Microphone with a Microdot Connector from DPA Microphones is a headworn cardioid microphone with a dual-ear design that can be used for various performing talent applications. Its small, 0.25" diameter allows for discreet use while its 0.5-ounce body allows for comfort while being worn. 5 foam windscreens are included. In the Box DPA Microphones d:fine 4088 Directional Headset Microphone with a Microdot Connector (Brown) 5 x Foam Windscreens Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:fine 4088 Directional Headset Microphone with a Microdot Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4088 Specs | Polar Pattern | Cardioid | | Principle of Operation | Pressure gradient | | Cartridge Type | Pre-polarized condenser element with vertical diaphragm | | Frequency Range | 100 Hz to 20 kHz (4 to 6 dB soft boost at 15 kHz), ± 2 dB | | Sensitivity | 6 mV/Pa, -44 dB re. 1 V/Pa (nominal, +/-3 dB at 1 kHz) | | Equivalent Noise Level | A-Weighted:
Typical: 26 dBA re. 20 µPa
Maximum: 28 dBA
ITU-R BS.468-4:
Typical: 38 dB
Maximum: 40 dB | | S/N Ratio | 68 dBA, 1 kHz at 1 Pa (94 dB SPL): | | Total Harmonic Distortion (THD) | <1% THD up to 123 dB SPL peak
<1% THD up to 120 dB SPL RMS sine | | Dynamic Range | Typical 97 dB | | Maximum Sound Pressure Level (SPL) | Peak Before Clipping: 144 dB | | Output Impedance | 30 to 40 Ω | | Cable Drive Capability | Up to 984' (300 m) | | Connector | Microdot termination | | Temperature Range | 14 to 113°F (-10 to 45°C) | | Cable Length | 3.9' (1.2 m) | | Dimensions (Ø x L) | 0.25 x 0.50" (5.40 x 11 mm) | | Weight | 0.5 oz (14 g) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 8.0 x 6.0 x 2.0" |
