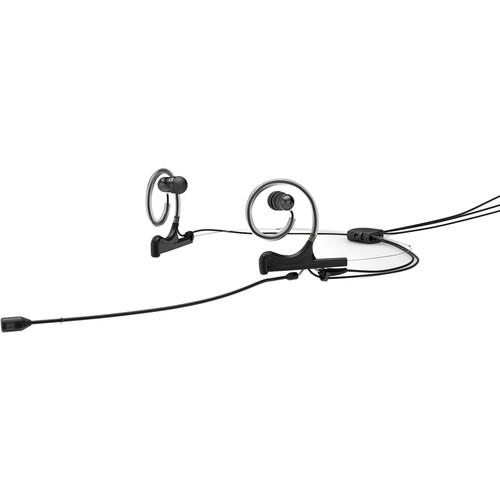

User Manual for DPA Microphones d:fine 4088 In-Ear Broadcast Headset Mic, 2-Ear Mount, 2-In-Ear with MicroDot Connector Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:fine 4088 In-Ear Broadcast
- Product category: Microphones for Wireless DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Microphones for Wireless
|
User manual for the DPA Microphones d:fine 4088 In-Ear Broadcast contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description - Quick Look: DPA d:fine In Ear Broadcast Headset Microphone
The black d:fine 4088 In-Ear Broadcast Headset Microphone from DPA is a dual-ear mount, dual in-ear, broadcast and communication headset microphone, which is lightweight and allows for two-channel monitoring. It can be used in several environments for applications such as broadcast TV, radio hosts, sports announcers, producers, theater actors, and more. The In-Ear Broadcast Headset Microphone features a frequency range of 20 Hz to 20 kHz. In addition, when using the headset, the in-ear drivers allow no audio leakage to the microphone capsule. The cable steer, located at the headset mount, controls the cable run down the neck. You can adjust the headset-mount size and choose between left or right ear orientations. DPA's spring steel construction integrates the cable within the earhook of the headset so that it mounts quickly and comfortably to fit any ear size. With the low noise and the high sensitivity of this headset mic, it delivers a clear and natural sound. Furthermore, the in-ear monitor also delivers crystal-clear communication too. The In-Ear Broadcast Headset Microphone has a 1/8" mini-jack connector for the in-ear driver. Two sizes of ear-pads are included to fit most ears. - The mics handle up to 144 dB peak before clipping. This is due to their linear response, low distortion and broad dynamic range, they sound natural no matter what the application
- Mic and in-ear monitor integrated in one solution
- Easy to mount with minimum cable clutter
- The microphone cable can be changed independently of the headset mount
In the Box DPA Microphones d:fine 4088 In-Ear Broadcast Headset Mic, 2-Ear Mount, 2-In-Ear with MicroDot Connector (Black) 2 x Ear Adapters Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:fine 4088 In-Ear Broadcast Headset Mic, 2-Ear Mount, 2-In-Ear with MicroDot Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4288-DL-I-B00-LH-2 Specs | Directional Characteristic | Directional | | Principle of Operation | Pressure gradient | | Cartridge Type | Pre-polarized condenser | | Frequency Range | 20 Hz - 20 kHz
Frequency Range ± 2 dB: (Near field) 0.8 to 1.2" (2-3 cm)
100 Hz to 20 kHz with 4-6 dB soft boost at 15 kHz | | Sensitivity | Nominal, ± 3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa | | Equivalent Noise Level | A-Weighted: Typ. 28 dB (A) re. 20 µPa (max. 30 dB (A))
ITU-R BS.468-4: Typ. 40 dB (max. 42 dB) | | Signal to Noise Ratio | A-Weighted, re. 1 kHz at 1 Pa (94 dB SPL): Typ. 66 dB (A) | | Total Harmonic Distortion (THD) | <1% up to 123 dB SPL peak; <1% up to 120 dB SPL RMS sine | | Dynamic Range | Typ. 95 dB | | Maximum SPL | Peak Before Clipping: 144 dB | | Output Impedance | From MicroDot: 30 - 40 ohms. From DAD6001-BC: 100 ohms | | Cable Drive Capability | Up to 984' (300 m) with DAD6001-BC XLR adapter | | Output Balance Principle | Signal balanced with DAD6001-BC XLR adapter | | Common Mode Rejection Ratio | >60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR adapter | | Current Consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR adapter | | Connector | MicroDot connector | | Boom Length | Microphone: Standard: 4.7" (120 mm) | | Polarity | +V at MicroDot pin for positive sound pressure (and pin 2 on DAD6001-BC XLR adapter) | | Electro Magnetic Compatibility | Fully compatible | | Temperature Range | -40 to 113°F (40 to 45°C) | | Relative Humidity | Up to 90% | | Cable Diameter | Microphone Cable: 0.06" (1.6 mm)
In-Ear Cable: 0.08" (1.95 mm) | | Cable Length | 4.3' (1.3 m) | | Weight | 0.92 oz (26 g) | | | | Type | Dynamic earplug (acknowledged Hi-Fi plugs) | | Connector | 1/8" (3.5 mm) stereo mini-jack | | In-Ear Type | Single: Signal at mini-jack tip
Dual: Signal at mini-jack tip (left) and ring (right) | | Sensitivity | 107 dBV | | Impedance | Nominal: 18 ohms | | | | Box Dimensions (LxWxH) | 10.0 x 6.0 x 3.0" |
