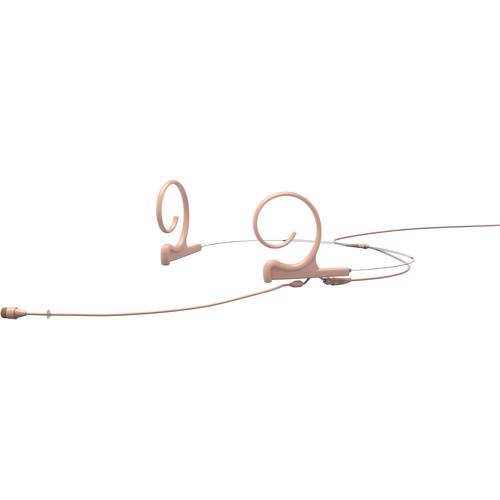

User Manual for DPA Microphones d:fine 66 2-Ear Omnidirectional Headset Microphone and 110mm Boom with MicroDot Connector Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:fine 66 2-Ear Omnidirectional
- Product category: Microphones for Wireless DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Microphones for Wireless
|
User manual for the DPA Microphones d:fine 66 2-Ear Omnidirectional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The beige d:fine 66 2-Ear Omnidirectional Headset Microphone and 110mm Boom with MicroDot Connector by DPA Microphones is designed for capturing professional audio. It is used in various environments for applications such as singers, public speakers, actors, musicians, and broadcast professionals. It features the DPA 4066 capsule, which is omnidirectional with a frequency range of 20 Hz to 20 kHz. This microphone offers accurate and natural voice intelligibility, and has high SPL capabilities. The d:fine 66 headset microphone is built with a 110mm boom and is featured with a 2-ear mount, designed to fit any head and ear size. Just by rotating the boom and the earhook, the microphone can be moved from left to right ear. This headset includes a 4.1' cable and terminates in a MicroDot connector. A carry box, cable clip, soft boost grid, and 3 additional windscreens are included. - Users can adjust the d:fine headset for left or right ear placement
- Service connector splits the cable from the microphone boom and allows for quick exchange of cable lengths/colors/connectors
- Allows you to both speak and sing into the microphone with no hint of distortion
- Ear mount is designed to fit any head and ear size
- Omnidirectional 2-ear headset microphone offers natural voice intelligibility and very high SPL handling
In the Box DPA Microphones d:fine 66 2-Ear Omnidirectional Headset Microphone and 110mm Boom with MicroDot Connector (Beige) Soft-Boost Grid Carry Box 5 x Color-Coded Identification Rings 3 x Foam Windscreens Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:fine 66 2-Ear Omnidirectional Headset Microphone and 110mm Boom with MicroDot Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4266-OL-F-F00-LH Specs | Polar Pattern | Omnidirectional | | Principle of Operation | Pressure | | Cartridge Type | Pre-polarized condenser element with vertical diaphragm | | Frequency Range | 20 Hz to 20 kHz
Soft-Boost Grid: 20 Hz to 20 kHz ±2 dB, 3 dB soft boost at 8 to 20 kHz
Optional High-Boost Grid: 20 Hz to 20 kHz ±2 dB, 10 dB boost at 12 kHz | | Sensitivity | 6 mV/Pa, -44 dB re. 1 V/Pa (nominal, ±3 dB at 1 kHz) | | Equivalent Noise Level | A-Weighted:
Typical: 26 dBA re. 20 µPa
Maximum: 28 dBA
ITU-R BS.468-4:
Typical: 38 dB
Maximum: 40 dB | | S/N Ratio | 68 dBA, 1 kHz at 1 Pa (94 dB SPL): | | Total Harmonic Distortion (THD) | <1% THD up to 123 dB SPL peak
<1% THD up to 120 dB SPL RMS sine | | Dynamic Range | Typical 97 dB | | Maximum Sound Pressure Level (SPL) | Peak Before Clipping: 144 dB | | Output Impedance | 30 to 40 ohms | | Cable Drive Capability | Up to 984' (300 m) | | Connector | MicroDot | | Temperature Range | 14 to 113°F (-10 to 45°C) | | Relative Humidity | Up to 90% | | Cable Length | 4.1' (1.25 m)
Cable Diameter: 0.06" (1.6 mm) | | Microphone Diameters | 0.20" (5 mm)
Length: 0.39" (10 mm) | | Weight | Single Ear Microphone Boom: 0.035 oz (1 g)
Earhook: 0.035 oz (1 g)
Cable: 0.28 oz (8 g)
Total: 0.35 oz (10 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 10.0 x 6.0 x 3.0" |
