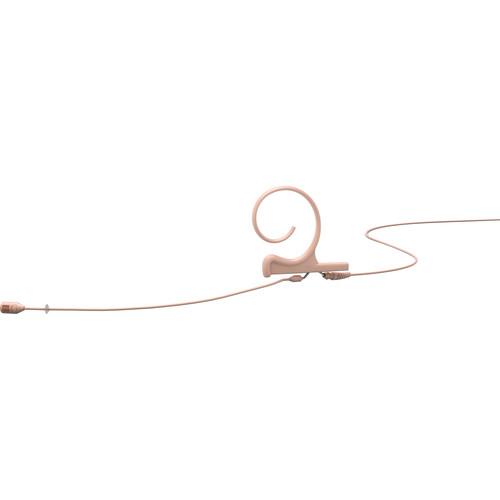

User Manual for DPA Microphones d:fine 88 Single-Ear Directional Headset Mic and MicroDot Hardwired Connector Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:fine 88 Single-Ear Directional
- Product category: Microphones for Wireless DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Microphones for Wireless
|
User manual for the DPA Microphones d:fine 88 Single-Ear Directional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description For capturing audio the beige d:fine 88 Single-Ear Directional Headset Microphone and MicroDot Hardwired Connector by DPA Microphones combines the 4088 capsule, with a lightweight headset. It can be used in various environments for audio applications such as public speaking, live stage, theater, boardrooms, houses of worship, and more. Featuring a 20 Hz to 20 kHz frequency response range, this ergonomically designed headset with its low profile design is hardly noticeable from a distance. It is built to adjust to any ear size or head shape while mounting securely. Just by rotating the boom and the earhook, the microphone can be moved from left to right ear, or into the optimum position for the user. This d:fine 88 headset microphone offers accurate, natural voice intelligibility and very high SPL capabilities. Users can both speak and sing into the mic with no hint of distortion. The d:fine Single-Ear Directional Headset Microphone includes carrying case, ear-hook, cable, cable clip to anchor the cable to your clothing, five identification rings, one make-up cover, a pre-mounted pop screen and foam windscreen, and four additional windscreens. - d:fine headsets deliver high-quality audio with no hint of distortion
- This directional headset mic features Single-ear mounting options
- The low profile design provides minimal visual impact and is hardly noticeable from a distance
- Can adapt to pro wireless systems with adapters sold separately
In the Box DPA Microphones d:fine 88 Single-Ear Directional Headset Mic and MicroDot Hardwired Connector (Beige) CH16F00 Microphone Cable for Earhook Slide (4.2', Beige) Single Earhook Clothing Clip 5 x Identification Rings & Make-Up Cover for d:fine Headset Microphone Pre-Mounted Pop Screen Pre-Mounted Foam Windscreen 4 x DUA0531F Foam Windscreen for d:fine Headset (Beige, 5-Pack) Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:fine 88 Single-Ear Directional Headset Mic and MicroDot Hardwired Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4288-DL-F-F00-ME Specs | Directional Characteristic | Cardioid | | Principle of Operation | Pressure gradient | | Cartridge Type | Pre-polarized condenser | | Frequency Range | 20 Hz to 20 kHz
+/- 2 dB, Near field 0.8-1.2" (2-3 cm): 100 Hz to 20 kHz (4 to 6 dB soft boost at 15 kHz | | Sensitivity | Nominal, +/-3 dB at 1 kHz: 6 mV/Pa, -44 dB re. 1 V/Pa | | Equivalent Noise Level | A-Weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
ITU-R BS.468-4: Typ. 38 dB (max. 40 dB) | | Signal to Noise Ratio | (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A) | | Total Harmonic Distortion (THD) | <1% THD up to 123 dB SPL peak
<1% THD up to 120 dB SPL RMS sine | | Dynamic Range | Typ. 97 dB | | Maximum Sound Pressure Level (SPL) | Peak Before Clipping: 144 dB | | Output Impedance | From MicroDot: 30 to 40 Ω From DAD6001-BC: 100 Ω | | Cable Drive Capability | Up to 984' (300 m) with DAD6001-BC XLR adapter | | Output Balance Principle | Signal balanced with DAD6001-BC XLR adapter | | Common Mode Rejection Ratio | > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR adapter | | Power Supply | For Wireless Systems: Min. 5 V through DPA adapter | | Current Consumption | Typ. 1.5 mA (microphone), 3.5 mA with DAD6001-BC XLR adapter | | Connector | MicroDot | | Temperature Range | -40 to 113°F (-40 to 45°C) | | Cable | Length: 4.1' (1.25 m)
Diameter: 0.06" (1.6 mm) | | Boom Length | 3.9" (100 mm) (M) | | Dimensions (Ø x L) | Mic: 0.20 x 0.39" (5 x 10 mm) | | Weight | Single-Ear Microphone Boom: 0.035 oz (1 g)
Earhook: 0.035 oz (1 g)
Cable: 0.28 oz (8 g)
Total: 0.35 oz (10 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 10.0 x 6.0 x 3.0" |
