User Manual for DPA Microphones d:fine Core 4288 Directional Flex Headset Mic, 120mm Boom with MicroDot Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:fine Core 4288 Directional
- Product category: Microphones for Wireless DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Microphones for Wireless
|
User manual for the DPA Microphones d:fine Core 4288 Directional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|

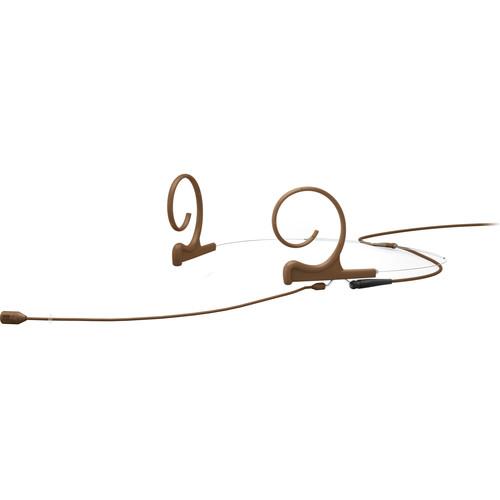

Product description The brown d:fine Core 4288 Directional Flex Headset Mic, 120mm Boom with MicroDot from DPA combines the sound of the d:fine 4088 directional capsule and Core amplifier in a lightweight and flexible two-ear headset. It can be used when miking needs to be fast and easy, and where the person wearing the microphone will barely feel the presence of it; such as in conference, speech, and active live performance applications.The cardioid polar-patterned Core 4288 offers a 4 dB increase in dynamic range and a 14 dB decrease in THD (total harmonic distortion) over the Legacy version and is ergonomically designed to fit comfortably. It easily adjusts to fit any ear size and head shape, while at the same time, it mounts securely and is hardly visible. By rotating the boom and the ear hook, the microphone can be used on either the left or the right ear. In addition, the connector splits the cable from the microphone boom allowing you to swap broken cables and/or transmitter connectors quickly. Finally, it includes a makeup cover, four windscreens, and a pop screen. - Easy mounting to the left or right
- Flexible adapter system fits most professional wireless systems
In the Box DPA Microphones d:fine Core 4288 Directional Flex Headset Mic, 120mm Boom with MicroDot (Brown) 4 x Foam Windscreens ID Rings and Cover Clothing Clip Makeup Filter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:fine Core 4288 Directional Flex Headset Mic, 120mm Boom with MicroDot in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones Core 4288 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 68 dB A-Weighted | | Equivalent Noise Level | 28 dB A-Weighted | | Maximum SPL | 144 dB SPL Peak | | THD | < 1% | | Sensitivity | 6 mV/Pa at 1 kHz | | CMRR | 60 dB | | Dynamic Range | 111 dB A-Weighted | | | | Output Connector | Microdot | | Cable Length | 4.1' / 1.25 m | | Operating Voltage | 5 to 50 V | | Operating Current Consumption | 1.5 mA | | Operating Humidity | 0 to 90% | | Length | 0.5" / 1.27 cm | | Diameter | 0.21" / 5.33 mm | | Weight | 0.35 oz / 9.92 g |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 06 owners. Add your rating and experience with the product.
