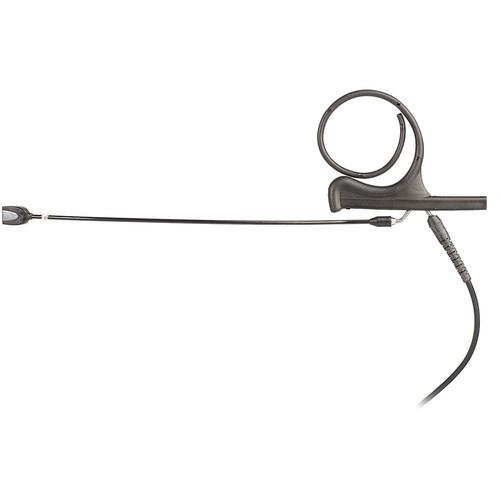

User Manual for DPA Microphones d:fine Single Ear-Mounted Omnidirectional Headset Microphone Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:fine Single Ear-Mounted Omnidirectional
- Product category: Headset & Earset Microphones DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Headset & Earset Microphones
|
User manual for the DPA Microphones d:fine Single Ear-Mounted Omnidirectional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The black DPA Microphones d:fine Single Ear-Mounted Omnidirectional Headset Microphone features a 110mm boom arm that has wind and pop protection integrated into the microphone design. The boom and earhook can be rotated for use on your left or right ear and have a lightweight 0.30-ounce design for minimal visual impact. The d:fine Headset Microphone has a maximum sound pressure level (SPL) of 144dB, allowing it to be used for both speaking and singing applications. It can be used in scenarios when hands-free miking is desired, such as corporate presentations, lectures, or in houses of worship.
The d:fine Headset Microphone terminates in a MicroDot connection for use with the optional DPDAD line of connectors from DPA, which can be used to provide compatibility for a variety of wireless transmitters. - Includes three windscreens, make-up and moisture filter, a cable clip, five color coded identification rings, protection cap, and case
- A service connector splits the cable from the microphone boom and allows for quick exchange of cable lengths, colors, and connectors as well as service for broken cables
In the Box DPA Microphones d:fine Single Ear-Mounted Omnidirectional Headset Microphone (Black) 3 x Windscreens Make-Up and Moisture Filter Cable Clip 5 x Color Coded Identification Rings Make-Up Cover/Capsule Protection Cap Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:fine Single Ear-Mounted Omnidirectional Headset Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4166-OL-F-B00-LE Specs | Transducer | Pre-polarized condenser | | Polar Pattern | Omnidirectional | | Principle of Operation | Pressure or pressure gradient | | Frequency Response | 20 Hz to 20 kHz
3 dB boost at 8 to 15 kHz | | Maximum SPL | 144 dB | | Dynamic Range (Typical) | 97 dB (typical) | | Signal-to-Noise Ratio | 68 dB A typical, A-weighted @ 1 kHz @ 1 Pa (94 dB SPL) | | Power Requirements | 5 to maximum 50 V through DPA adapter for wireless systems | | Total Harmonic Distortion | < 1 % up to 123 dB SPL peak
< 1 % up to 120 dB SPL RMS sine | | Output Impedance | 30 to 40 Ω | | Output Connectors | 1x MicroDot | | CMRR | > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR adapter | | Current Consumption | 1.5 mA (microphone, typical) | | Sensitivity | 6 mV/Pa; -44 dB @ 1 V/Pa (nominal, ± 3 dB @ 1 kHz) | | Noise Level | A-weighted: 26 dB A @ 20 µPa (maximum 28 dB A, typical)
ITU-R BS.468-4: 38 dB (maximum 40 dB, typical) | | Cable | Length: 4.3' (1.3 m)
Diameter: 0.06" (1.60 mm) | | Boom | Length: 4.3" (110 mm) | | Capsule Diameter | 0.2" (5.4 mm) | | Polarity | + V at MicroDot pin for positive sound pressure | | EMC Compatibility | Fully compatible | | Temperature Range | -40 to 113°F (-40 to 45°C) | | Relative Humidity | ≤ 90% | | Microphone Head Size | 0.37 x 0.21 x 0.11" (9.50 x 5.30 x 2.90 mm) | | Weight | Microphone boom: 0.03 oz (0.8 g)
Earhook: 0.04 oz (1.1 g)
Cable: 0.23 oz (6.6 g)
Total weight: 0.3 oz (8.5 g) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 9.8 x 5.7 x 2.9" |
