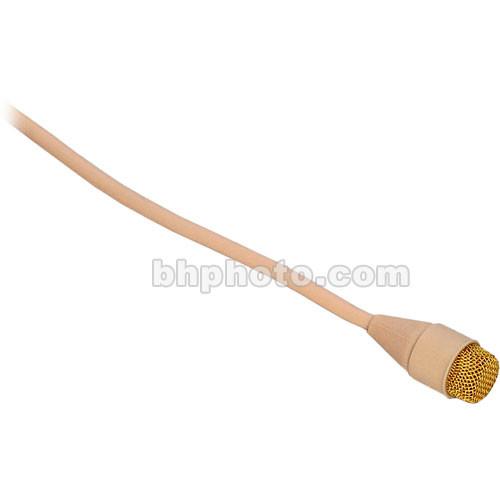

User Manual for DPA Microphones d:screet 4060 Omnidirectional Miniature Microphone with MicroDot Connector Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:screet 4060 Omnidirectional Miniature
- Product category: Microphones for Wireless DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Microphones for Wireless
|
User manual for the DPA Microphones d:screet 4060 Omnidirectional Miniature contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The beige d:screet 4060 Omnidirectional Miniature Microphone with MicroDot Connector from DPA is a miniature lavalier microphone designed for use in performance and theatrical applications. The 4060 lavalier features a condenser element with a frequency and sensitivity response that will accurately reproduce audio signals from the human voice and instruments. The capsule is designed with a double vent protection system and moisture resistant materials inside the capsule, which ensure maximum protection from humidity and moisture caused by perspiration, makeup, etc.The 4060 includes interchangeable capsule protection grids that alter the signal character of the microphone. A High-Boost Grid creates a peak at 12 kHz, creating an airy texture to audio signals. The Soft-Boost Grid creates a subtle boost between 8-20 kHz, enhancing signal presence. With a SPL rating of 134 dB, the microphone is more than capable of reproducing transient (peaking) audio before clipping. The 4060 features a MicroDot output connector, compatible with various wireless microphone transmitters or power supplies with standard XLR outputs. - Moisture Resistant
- The 4060 features a double vent protection grid and moisture resistant materials, which prevent damage from humidity, perspiration and makeup.
- Frequency Altering Grids
- The microphone includes "High Boost" and "Soft Boost" protection grids that alter the frequency response and accentuate high-frequency signals.
- Sensitive Condenser
- The condenser element provides a wide frequency response while boasting an SPL rating of 134 dB.
- Omnidirectional Polar Pattern
- The omnidirectional polar pattern effectively captures audio at the direct and off-axis sections of the capsule.
In the Box DPA Microphones d:screet 4060 Omnidirectional Miniature Microphone with MicroDot Connector (Beige) High-Boost Protection Grid Soft-Boost Protection Grid Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:screet 4060 Omnidirectional Miniature Microphone with MicroDot Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4060 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Operated | | Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 71 dB A-Weighted | | Equivalent Noise Level | 26 dB A-Weighted | | Maximum SPL | 134 dB SPL Peak | | THD | < 1% | | Impedance | 40 Ohms | | Sensitivity | 20 mV/Pa at 1 kHz | | Dynamic Range | 100 dB A-Weighted | | | | Output Connector | Microdot | | Cable Length | 5.9' / 1.80 m | | Operating Voltage | 5 to 50 V | | Operating Humidity | 0 to 90% (Recommended) | | Length | 0.5" / 1.27 cm | | Diameter | 0.21" / 5.33 mm | | Weight | 0.26 oz / 7 g | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 4.3 x 2.7 x 1.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 39 owners. Add your rating and experience with the product.
