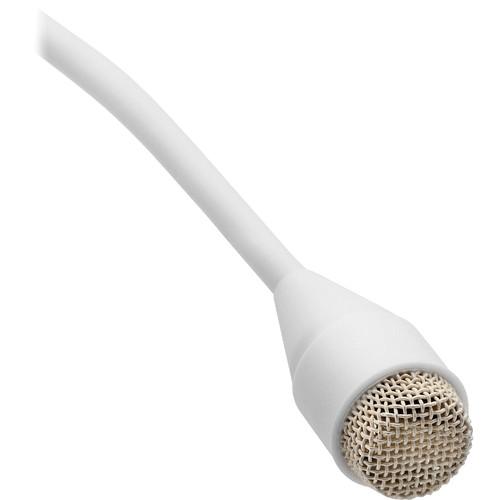

User Manual for DPA Microphones d:screet 4061 Omnidirectional Miniature Low-Sensitivity Microphone Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:screet 4061 Omnidirectional Miniature
- Product category: Microphones for Wireless DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Microphones for Wireless
|
User manual for the DPA Microphones d:screet 4061 Omnidirectional Miniature contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The white d:screet 4061 from DPA is a miniature omnidirectional lavalier microphone designed for use in performance and theatrical applications. The miniature lavalier features a condenser element with a frequency and sensitivity response that will accurately reproduce audio signals from the human voice and instruments. The capsule is designed with a double vent protection system and moisture-resistant materials inside the capsule, which ensure maximum protection from humidity and moisture caused by perspiration, makeup, etc. The 4061 includes interchangeable capsule protection grids that alter the signal character of the microphone. A "High Boost" capsule creates a peak at 12 kHz, creating an airy texture to audio signals. The "Soft Boost" capsule creates a subtle boost between 8 to 20 kHz, enhancing signal presence. With a SPL rating of 144 dB, the microphone is more than capable of reproducing transient (peaking) audio before clipping. The 4061 is powered via +48V phantom power and features a MicroDot output connector, compatible with various wireless microphone transmitters or power supplies with standard XLR outputs. A MicroDot adapter is required to use with a wireless system. - Standard Sensitivity
- Identical to the DPA 4060, the 4061's sensitivity is adjusted to 6 mV/Pa to match some of the more sensitive transmitters on the market.
- Moisture Resistant
- The 4061 features a double vent protection grid and moisture-resistant materials which prevent damage from humidity, perspiration and makeup.
- Frequency-Altering Grids
- The microphone includes "high boost" and "soft boost" protection grids that alter the frequency response and accentuate high-frequency signals.
- Sensitive Condenser
- If powered correctly the microphone will be able to handle sound pressure levels up to 144 dB SPL before clipping occurs.
- Omnidirectional Polar Pattern
- The omnidirectional polar pattern effectively captures audio at the direct and off-axis sections of the capsule.
In the Box DPA Microphones d:screet 4061 Omnidirectional Miniature Low-Sensitivity Microphone (White) High Boost Protection Grid Soft Boost Protection Grid Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:screet 4061 Omnidirectional Miniature Low-Sensitivity Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4061 Specs | Transducer | Pre-polarized Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | Soft Boost Grid: 20 Hz to 20 kHz +/- 2 dB, 3 dB soft boost at 8 Hz to 20 kHz
High Boost Grid: 20 Hz tto 20 kHz +/- 2 dB, 10 dB boost at 12 kHz | | Dynamic Range (Typical) | Not Specified by Manufacturer | | Signal-to-Noise Ratio | Typ. 35 dB (max. 38 dB) | | Maximum Input Sound Level | 144 dB SPL Before Clipping | | Power Requirements | +48 V | | Output Jitter | 30 to 40 Ohms | | Output Connectors | MicroDot | | Pad | No | | Low Frequency Roll-Off | No | | Cable Length | 5.9' (1.8 m) | | Weight | 0.26 oz (7.5 g) Including cable and MicroDot | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 4.0 x 3.0 x 1.0" |
