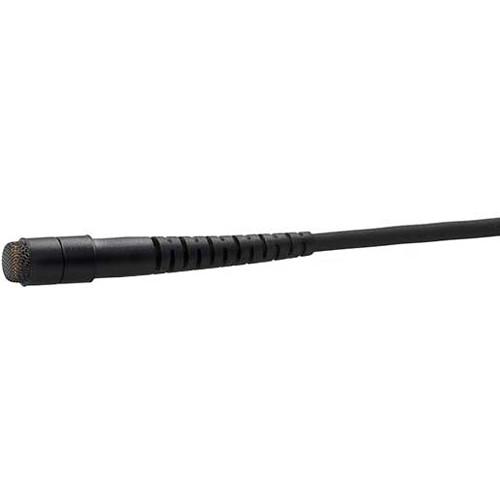

Product description Essential Guide on How to Mic Talent for Video Read More tfsryaxqwxfw The black d:screet 4063 Heavy-Duty Omnidirectional Lo-Sens & DC Microphone from DPA Microphones is designed for maximum security and where visual size of the mic is less important. It features stainless steel housing, a heavy-duty cable relief, and a thick 0.9" cable. The FET preamplifier in the input stage is designed for working with lower supply voltage.
The d:screet 4063 is designed for use with wireless systems in theater, television, and closely-miked instrument applications. Because of its small size, it exhibits an accurate omnidirectional pattern and therefore does not need to be aimed directly at the sound source to achieve quality pickup.The microphone is designed for use with wireless mic solutions from Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom, and many more. - Stainless steel housing, heavy-duty cable relief, and thick cable
- Low noise and high sensitivity
- Wide variety of accessories available
- Modular adapter system fits most professional wireless systems
In the Box DPA Microphones d:screet 4063 Heavy-Duty Omnidirectional Lo-Sens & DC Mic (Black) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:screet 4063 Heavy-Duty Omnidirectional Lo-Sens & DC Mic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4063 Specs | Transducer | Pre-polarized condenser | | Polar Pattern | Omnidirectional | | Frequency Response | @ ±2 dB
Soft Boost Grid: 20 Hz to 20 kHz, 3 dB soft boost at 8 to 20 kHz
High Boost Grid: 20 Hz to 20 kHz, 10 dB boost at 12 kHz
20 Hz to 20 kHz | | Principle of Operation | Pressure | | THD | < 1% THD up to 123 dB SPL peak
< 1% THD up to 120 dB SPL RMS sine | | Cable Drive Capability | Up to 984' (300 m) | | Dynamic Range (Typical) | 97 dB | | Signal-to-Noise Ratio | A-Weighted, re. 1 kHz at 1 Pa (94 dB SPL): 68 dBA | | Polarity | Positively increasing sound pressure produces positive-going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter) | | Power Requirements | For Wireless Systems: Minimum 3 V, maximum 50 V through DPA adapter
With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power, ±4 V for full performance | | Output Impedance | 30 to 40 Ohms | | Pad | Not specified by manufacturer | | Low Frequency Roll-Off | Not specified by manufacturer | | Sensitivity | Nominal, ±3 dB at 1 kHz: 6 mV/Pa, -44 dB re. 1 V/Pa | | SPL | Maximum Peak before Clipping: 138 dB | | Noise Level | A-Weighted: Typical 26 dBA re. 20 µPa (maximum 28 dBA)
ITU-R BS.468-4: Typical 38 dB (maximum 40 dB) | | Recommended Load Impedance | Not specified by manufacturer | | Connector | MicroDot | | Temperature Range | -40 to 113°F (-40 to 45°C) | | Relative Humidity | Up to 90% | | Dimensions (Ø x L) | 0.2 x 0.7" (5.4 x 17.6 mm) | | Weight | 0.5 oz (13 g) with cable and MicroDot connector | | | | Box Dimensions (LxWxH) | 6.0 x 6.0 x 2.0" |
