User Manual for DPA Microphones d:screet 4160 Core Slim Omnidirectional Microphone with Hardwired MicroDot Connector Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:screet 4160 Core Slim
- Product category: Microphones for Wireless DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Microphones for Wireless
|
User manual for the DPA Microphones d:screet 4160 Core Slim contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|

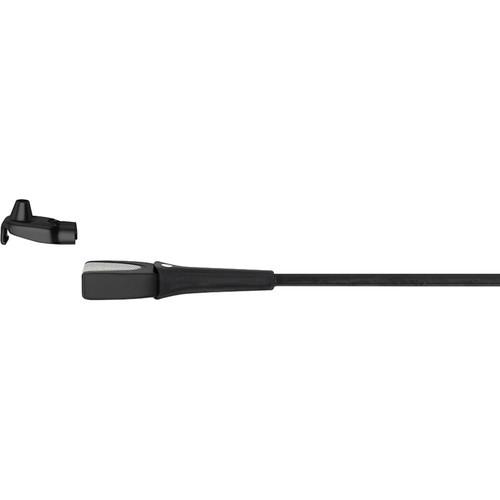

Product description The black d:screet 4160 Core Slim Omnidirectional Microphone with Hardwired MicroDot Connector from DPA features the same capsule as the d:screet 4060 omnidirectional miniature mic, but in a different housing. This makes it a good choice for any application requiring a big sound and a small, hidden footprint. It can be used to capture audio for speech, television, and film applications.This mic handles sound pressure levels up to 134 dB before clipping occurs and is well suited for situations where the sound source is more remote or dampened, and you need to have a good balance of signal versus noise. When used with the detachable button-hole mount, the mic becomes almost completely invisible. This button-hole mount is placed on the mic head and has a small side-entry pipe making it possible to have the sound enter through a button hole, directly to the diaphragm. - Practically invisible when used with button-hole mount or optional concealer
- Uniform, consistent sound between DPA mics
- Modular adapter system fits most professional wireless systems
In the Box DPA Microphones d:screet 4160 Core Slim Omnidirectional Microphone with Hardwired MicroDot Connector (Black) Button-Hole Mount Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:screet 4160 Core Slim Omnidirectional Microphone with Hardwired MicroDot Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones Core 4160 Specs | Sound Field | Mono | Operating Principle | Pressure Operated | Transducer | Condenser | Polar Pattern | Omnidirectional | Frequency Range | 20 Hz to 20 kHz | Signal to Noise Ratio | 71 dB A-Weighted | Equivalent Noise Level | 23 dB A-Weighted | Maximum SPL | 134 dB SPL Peak | THD | < 1% | Impedance | 40 Ohms | Sensitivity | 20 mV/Pa at 1 kHz | CMRR | 60 dB | Dynamic Range | 100 dB A-Weighted | | Output Connector | Microdot | Cable Length | 5.9' / 1.80 m | Operating Voltage | 5 to 50 V | Operating Current Consumption | 1.5 mA 3.5 mA with DAD6001-BC XLR adapter | Operating Humidity | 0 to 90% | Length | 0.39" / 10 mm | Diameter | 0.12" / 3 mm | Weight | 0.3 oz / 9 g Includes cable and MicroDot connector |
