User Manual for DPA Microphones d:screet Core 4060 Instrument Microphone Kit Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:screet Core 4060 Instrument
- Product category: Small Diaphragm Condenser DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Small Diaphragm Condenser
|
User manual for the DPA Microphones d:screet Core 4060 Instrument contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|

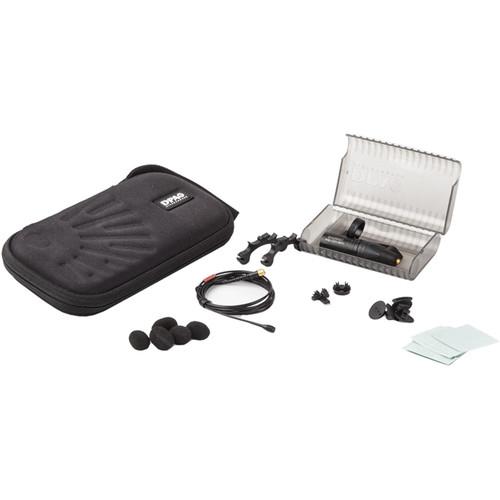

Product description The high-sens, normal SPL, black d:screet Core 4060 Instrument Microphone Kit from DPA includes a 4060 omnidirectional lavalier microphone hardwired to a MicroDot connector, an XLR adapter and belt clip, a double miniature mic holder, a surface mount, a magnetic mount, five foam windscreens, two holders for strings, and a storage case. The Core 4060 miniature microphone amplifier delivers a 6 dB increase in dynamic range and a 6 dB reduction in THD (total harmonic distortion) over the 4060 Legacy model. This kit can be used to capture audio for a wide variety of musical instruments and is well suited for applications where the sound is more remote or damped. - d:screet Core 4060 Miniature Omnidirectional Microphone with MicroDot Connector (High-Sens, Black) The high-sens, normal SPL, black d:screet Core 4060 Miniature Omnidirectional Microphone with Hardwired MicroDot Connector from DPA is designed for use with wireless systems in performance and theatrical presentations. The Core 4060 miniature microphone amplifier delivers a 6 dB increase in dynamic range and a 6 dB reduction in THD (total harmonic distortion) over the 4060 Legacy model. Because of its small size, the microphone is highly unobtrusive and is suitable for broadcast, live stage, and instrument applications as well.The d:screet Core 4060 includes interchangeable capsule protection grids that alter the sonic character of the microphone. A high-boost grid creates a peak at 12 kHz, bringing an airy texture to audio signals. The soft-boost grid creates a subtle boost between 8 to 20 kHz, enhancing signal presence.With an SPL rating of 134 dB, the microphone is more than capable of reproducing transient (peaking) audio before clipping. The Core 4060 is powered via +48V phantom power and features a MicroDot output connector, compatible with various wireless microphone transmitters, or power supplies with standard XLR outputs.
- DAD6001 MicroDot to 3-pin XLR Adapter (Belt Clip) The DAD6001 is an adapter featuring XLR-male and MicroDot connections. The adapter is designed to attach DPA microphones to external phantom power sources such as preamps, mixers, etc. This version features a belt clip for added convenience while using in mobile situations.
- SCM0018 Double Miniature Microphone Holder (Black) The black SCM0018 from DPA is a double mic holder for d:screet miniature microphones (sold separately). It can be used for mounting dual microphones to clothing to create a distance from the capsule and minimize clothing and fabric noise. Furthermore, it is prepared for both left and right mounting, for applications such as live stage, broadcast TV, houses of worship, and more. The SCM0018 is used with omnidirectional microphones that pick up sound no matter which direction the microphone is placed in. The rear cable hook controls cable run behind clothes and improves minimum visual appearance.
- Miniature Magnet (Black) The DPA Microphones Miniature Magnet DMM00011-B (Black) is a microphone holder that uses a strong magnet for mounting. And as the magnet is attached to the mounting piece, it is possible to use this unit on other a number of metal surfaces. It is well suited for everything metal, including grand and up-right pianos (on their frames), or drums with metal rims. This unit can hold up to two miniature microphones by their cables, or one by the housing.
- Perfect Position
- Use this convenient clip to perfectly position your microphones.
- Foam Windscreens for 4060, 4061, 4062, 4063, 4071 (5-Pack, Black) The 5-pack of black DUA0560 Foam Windscreens for DPA Microphones 4060, 4061, 4062, 4063, 4071 reduces speaking and environmental noise for 4060, 4061, 4062, 4063, 4071 Series miniature omnidirectional microphones.
In the Box Bundle Items d:screet Core 4060 Miniature Omnidirectional Microphone with MicroDot Connector (High-Sens, Black) vbwewseduwbvdfdtfxb - High-Boost Protection Grid
- Soft-Boost Protection Grid
DAD6001 MicroDot to 3-pin XLR Adapter (Belt Clip) SCM0018 Double Miniature Microphone Holder (Black) Miniature Magnet (Black) vbwewseduwbvdfdtfxb - Two-Year Limited Warranty
Foam Windscreens for 4060, 4061, 4062, 4063, 4071 (5-Pack, Black)
Also Includes - Surface Mount
- 2 x Microphone Holders for Stringed Instruments
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:screet Core 4060 Instrument Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - d:screet Core 4060 Miniature Omnidirectional Microphone with MicroDot Connector (High-Sens, Black)
| | | Sound Field | Mono | | Operating Principle | Pressure Operated | | Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 71 dB A-Weighted | | Equivalent Noise Level | 35 dB ITU-R 468 | | Maximum SPL | 134 dB SPL Peak | | THD | < 1% | | Impedance | 40 Ohms | | Sensitivity | 20 mV/Pa at 1 Hz | | Dynamic Range | 106 dB A-Weighted | | | | Output Connector | Microdot | | Cable Length | 5.9' / 179.83 cm | | Operating Voltage | 5 to 50 V | | Operating Humidity | 0 to 90% | | Length | 0.5" / 12.70 mm | | Diameter | 0.21" / 5.33 mm | | Weight | 0.26 oz / 7.5 g | | | | Box Dimensions (LxWxH) | 4.75 x 3.0 x 1.0" | - DAD6001 MicroDot to 3-pin XLR Adapter (Belt Clip)
| | | Box Dimensions (LxWxH) | 4.3 x 2.7 x 0.9" | - SCM0018 Double Miniature Microphone Holder (Black)
| Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 4.3 x 2.7 x 1.0" | - Miniature Magnet (Black)
| | | Box Dimensions (LxWxH) | 4.2 x 2.7 x 1.0" | - Foam Windscreens for 4060, 4061, 4062, 4063, 4071 (5-Pack, Black)
| | | Box Dimensions (LxWxH) | 4.3 x 2.8 x 1.05" |
