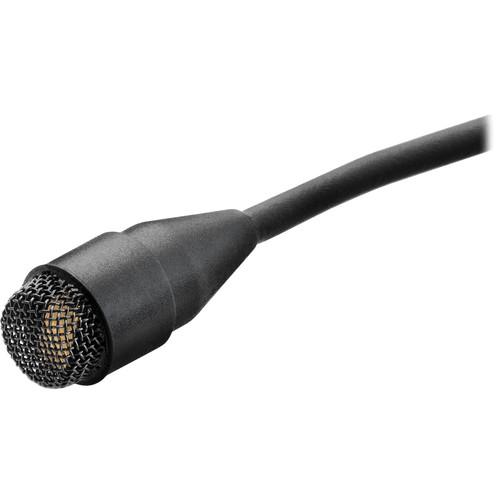

User Manual for DPA Microphones d:screet Core 4060 Miniature Omnidirectional Microphone with MicroDot Connector Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:screet Core 4060 Miniature
- Product category: Microphones for Wireless DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Microphones for Wireless
|
User manual for the DPA Microphones d:screet Core 4060 Miniature contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The high-sens, normal SPL, black d:screet Core 4060 Miniature Omnidirectional Microphone with Hardwired MicroDot Connector from DPA is designed for use with wireless systems in performance and theatrical presentations. The Core 4060 miniature microphone amplifier delivers a 6 dB increase in dynamic range and a 6 dB reduction in THD (total harmonic distortion) over the 4060 Legacy model. Because of its small size, the microphone is highly unobtrusive and is suitable for broadcast, live stage, and instrument applications as well.The d:screet Core 4060 includes interchangeable capsule protection grids that alter the sonic character of the microphone. A high-boost grid creates a peak at 12 kHz, bringing an airy texture to audio signals. The soft-boost grid creates a subtle boost between 8 to 20 kHz, enhancing signal presence.With an SPL rating of 134 dB, the microphone is more than capable of reproducing transient (peaking) audio before clipping. The Core 4060 is powered via +48V phantom power and features a MicroDot output connector, compatible with various wireless microphone transmitters, or power supplies with standard XLR outputs. In the Box DPA Microphones d:screet Core 4060 Miniature Omnidirectional Microphone with MicroDot Connector (High-Sens, Black) High-Boost Protection Grid Soft-Boost Protection Grid Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:screet Core 4060 Miniature Omnidirectional Microphone with MicroDot Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones Core 4060 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Operated | | Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 71 dB A-Weighted | | Equivalent Noise Level | 35 dB ITU-R 468 | | Maximum SPL | 134 dB SPL Peak | | THD | < 1% | | Impedance | 40 Ohms | | Sensitivity | 20 mV/Pa at 1 Hz | | Dynamic Range | 106 dB A-Weighted | | | | Output Connector | Microdot | | Cable Length | 5.9' / 179.83 cm | | Operating Voltage | 5 to 50 V | | Operating Humidity | 0 to 90% | | Length | 0.5" / 12.70 mm | | Diameter | 0.21" / 5.33 mm | | Weight | 0.26 oz / 7.5 g | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 4.75 x 3.0 x 1.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
