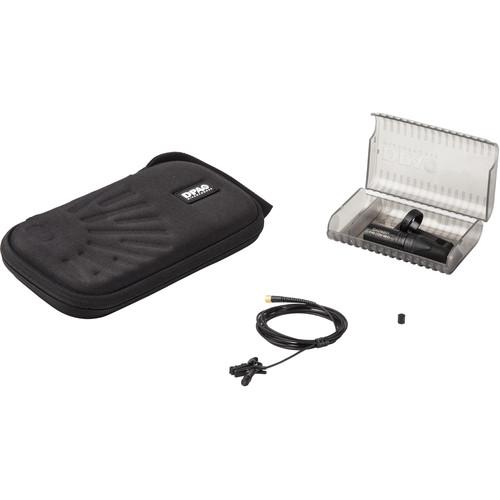

User Manual for DPA Microphones d:screet Core 4060 Omnidirectional Lavalier Microphone Kit Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:screet Core 4060 Omnidirectional
- Product category: Small Diaphragm Condenser DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Small Diaphragm Condenser
|
User manual for the DPA Microphones d:screet Core 4060 Omnidirectional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The high-sensitivity, normal SPL, black d:screet Core 4060 Omnidirectional Lavalier Microphone Kit from DPA includes a 4060 lavalier microphone hardwired to a MicroDot connector, an XLR adapter and belt clip, a high- and soft-boost grid, a microphone holder, and a travel case and pouch. The Core 4060 miniature microphone amplifier delivers a 6 dB increase in dynamic range and a 6 dB reduction in THD (total harmonic distortion) over the 4060 Legacy model. This kit can be used to capture audio for broadcast, theater, TV studios, news anchors, and more. - d:screet Core 4060 Miniature Omnidirectional Microphone with MicroDot Connector (High-Sens, Black) The high-sens, normal SPL, black d:screet Core 4060 Miniature Omnidirectional Microphone with Hardwired MicroDot Connector from DPA is designed for use with wireless systems in performance and theatrical presentations. The Core 4060 miniature microphone amplifier delivers a 6 dB increase in dynamic range and a 6 dB reduction in THD (total harmonic distortion) over the 4060 Legacy model. Because of its small size, the microphone is highly unobtrusive and is suitable for broadcast, live stage, and instrument applications as well.The d:screet Core 4060 includes interchangeable capsule protection grids that alter the sonic character of the microphone. A high-boost grid creates a peak at 12 kHz, bringing an airy texture to audio signals. The soft-boost grid creates a subtle boost between 8 to 20 kHz, enhancing signal presence.With an SPL rating of 134 dB, the microphone is more than capable of reproducing transient (peaking) audio before clipping. The Core 4060 is powered via +48V phantom power and features a MicroDot output connector, compatible with various wireless microphone transmitters, or power supplies with standard XLR outputs.
- DAD6001 MicroDot to 3-pin XLR Adapter (Belt Clip) The DAD6001 is an adapter featuring XLR-male and MicroDot connections. The adapter is designed to attach DPA microphones to external phantom power sources such as preamps, mixers, etc. This version features a belt clip for added convenience while using in mobile situations.
- SCM0017 Miniature Mic Holder (Black) The black SCM0017 from DPA is a mic holder for the d:screet Miniature Microphone (sold separately). It can be used to create distance from the capsule, and minimize clothing and fabric noise; also, it is prepared for both left and right mounting in applications such as live stage, broadcast TV, houses of worship, and more. In addition, the SCM0017 is used with an omnidirectional microphone that picks up the sound, no matter which direction the microphone is placed in. The rear cable hook controls cable run behind clothes and improves minimum visual appearance.
In the Box Bundle Items d:screet Core 4060 Miniature Omnidirectional Microphone with MicroDot Connector (High-Sens, Black) vsuyuyzvuxwx - High-Boost Protection Grid
- Soft-Boost Protection Grid
DAD6001 MicroDot to 3-pin XLR Adapter (Belt Clip) SCM0017 Miniature Mic Holder (Black)
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:screet Core 4060 Omnidirectional Lavalier Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - d:screet Core 4060 Miniature Omnidirectional Microphone with MicroDot Connector (High-Sens, Black)
| | | Sound Field | Mono | | Operating Principle | Pressure Operated | | Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 71 dB A-Weighted | | Equivalent Noise Level | 35 dB ITU-R 468 | | Maximum SPL | 134 dB SPL Peak | | THD | < 1% | | Impedance | 40 Ohms | | Sensitivity | 20 mV/Pa at 1 Hz | | Dynamic Range | 106 dB A-Weighted | | | | Output Connector | Microdot | | Cable Length | 5.9' / 179.83 cm | | Operating Voltage | 5 to 50 V | | Operating Humidity | 0 to 90% | | Length | 0.5" / 12.70 mm | | Diameter | 0.21" / 5.33 mm | | Weight | 0.26 oz / 7.5 g | | | | Box Dimensions (LxWxH) | 4.75 x 3.0 x 1.0" | - DAD6001 MicroDot to 3-pin XLR Adapter (Belt Clip)
| | | Box Dimensions (LxWxH) | 4.3 x 2.7 x 0.9" | - SCM0017 Miniature Mic Holder (Black)
| Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 4.7 x 2.8 x 1.0" |
