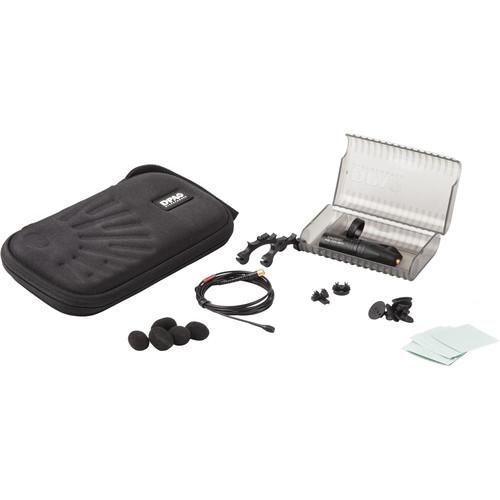

Product description The loud SPL, black d:screet Core 4061 Instrument Microphone Kit from DPA includes a 4061 omnidirectional lavalier microphone hardwired to a MicroDot connector, an XLR adapter and belt clip, a double holder, a surface mount, a magnet mount, five foam windscreens, two holders for strings, and a travel case and pouch. The Core 4061 miniature microphone amplifier delivers a 4 dB increase in dynamic range and a 14 dB reduction in THD (total harmonic distortion) over the 4061 Legacy model. This kit can be used to capture audio for a wide variety of musical instruments in close-miking situations such as snare drums, guitar/bass speaker cabinets, violins, pianos, or other high-SPL sound sources. - d:screet Core 4061 Miniature Omnidirectional Microphone with MicroDot Connector (Lo-Sens, Black) The lo-sens, loud SPL, black d:screet Core 4061 Miniature Omnidirectional Microphone with Hardwired MicroDot Connector from DPA is designed for use with wireless systems in performance and theatrical presentations. The Core 4061 miniature microphone amplifier delivers a 4 dB increase in dynamic range and a 14 dB decrease in THD (total harmonic distortion) over the 4061 Legacy model. Because of its small size, the microphone is highly unobtrusive and is suitable for broadcast, live stage, and instrument applications as well.The d:screet Core 4061 includes interchangeable capsule protection grids that alter the sonic character of the microphone. A high-boost grid creates a peak at 12 kHz, bringing an airy texture to audio signals. The soft-boost grid creates a subtle boost between 8 to 20 kHz, enhancing signal presence.With an SPL rating of 144 dB, the microphone is more than capable of reproducing transient (peaking) audio before clipping. The Core 4061 is powered via +48V phantom power and features a MicroDot output connector, compatible with various wireless microphone transmitters, or power supplies with standard XLR outputs.
- Large selection of accessories
- DAD6001 MicroDot to 3-pin XLR Adapter (Belt Clip) The DAD6001 is an adapter featuring XLR-male and MicroDot connections. The adapter is designed to attach DPA microphones to external phantom power sources such as preamps, mixers, etc. This version features a belt clip for added convenience while using in mobile situations.
- SCM0018 Double Miniature Microphone Holder (Black) The black SCM0018 from DPA is a double mic holder for d:screet miniature microphones (sold separately). It can be used for mounting dual microphones to clothing to create a distance from the capsule and minimize clothing and fabric noise. Furthermore, it is prepared for both left and right mounting, for applications such as live stage, broadcast TV, houses of worship, and more. The SCM0018 is used with omnidirectional microphones that pick up sound no matter which direction the microphone is placed in. The rear cable hook controls cable run behind clothes and improves minimum visual appearance.
- DMM0003 - Magnetic Clip Mount The DPA DMM0003 Magnetic Clip Mount is a microphone holder designed for mounting up to two DPA lavalier microphones by their cables, or a single lavalier by its capsule. The DMM0003 is supplied with a small iron tag on an elastic necklace for mounting underneath clothing and fabric.
- Foam Windscreens for 4060, 4061, 4062, 4063, 4071 (5-Pack, Black) The 5-pack of black DUA0560 Foam Windscreens for DPA Microphones 4060, 4061, 4062, 4063, 4071 reduces speaking and environmental noise for 4060, 4061, 4062, 4063, 4071 Series miniature omnidirectional microphones.
In the Box Bundle Items d:screet Core 4061 Miniature Omnidirectional Microphone with MicroDot Connector (Lo-Sens, Black) wqbyasstztcsrtrttddrzru - High-Boost Protection Grid
- Soft-Boost Protection Grid
DAD6001 MicroDot to 3-pin XLR Adapter (Belt Clip) SCM0018 Double Miniature Microphone Holder (Black) DMM0003 - Magnetic Clip Mount wqbyasstztcsrtrttddrzru - Miniature Magnet Necklace
- Two-Year Limited Warranty
Foam Windscreens for 4060, 4061, 4062, 4063, 4071 (5-Pack, Black)
Also Includes - Surface Mount
- 2 x Holder for Strings
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:screet Core 4061 Instrument Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - d:screet Core 4061 Miniature Omnidirectional Microphone with MicroDot Connector (Lo-Sens, Black)
| | | Sound Field | Mono | | Operating Principle | Pressure Operated | | Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 68 dB A-Weighted | | Equivalent Noise Level | 38 dB ITU-R 468 | | Maximum SPL | 144 dB SPL Peak | | THD | < 1% | | Impedance | 40 Ohms | | Sensitivity | 6 mV/Pa at 1 kHz | | Dynamic Range | 111 dB A-Weighted | | | | Output Connector | Microdot | | Cable Length | 5.9' / 179.83 cm | | Operating Voltage | 5 to 50 V | | Operating Humidity | 0 to 90% | | Length | 0.5" / 12.70 mm | | Diameter | 0.21" / 5.33 mm | | Weight | 0.26 oz / 7.5 g | | | | Box Dimensions (LxWxH) | 4.1 x 2.5 x 0.9" | - DAD6001 MicroDot to 3-pin XLR Adapter (Belt Clip)
| | | Box Dimensions (LxWxH) | 4.3 x 2.7 x 0.9" | - SCM0018 Double Miniature Microphone Holder (Black)
| Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 4.3 x 2.7 x 1.0" | - DMM0003 - Magnetic Clip Mount
| | | Box Dimensions (LxWxH) | 4.3 x 2.7 x 1.1" | - Foam Windscreens for 4060, 4061, 4062, 4063, 4071 (5-Pack, Black)
| | | Box Dimensions (LxWxH) | 4.3 x 2.8 x 1.05" |
