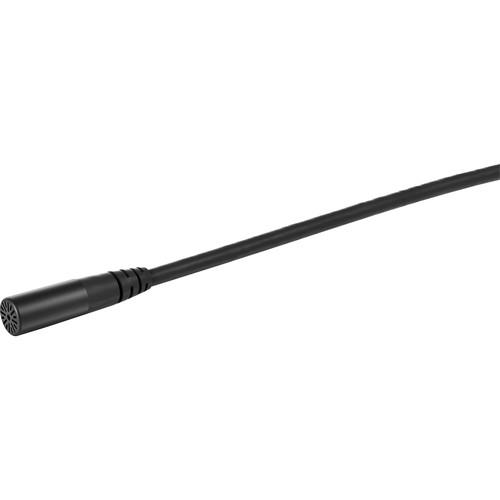

User Manual for DPA Microphones d:screet Core 6061 Series Subminiature Microphone Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:screet Core 6061 Series
- Product category: Microphones for Wireless DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Microphones for Wireless
|
User manual for the DPA Microphones d:screet Core 6061 Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The black, loud SPL d:screet Core 6061 Series Subminiature Microphone from DPA is designed with a hardwired MicroDot connector for use with wireless systems in performance and theatrical presentations. Because of its small size, the microphone is highly unobtrusive and can be used for broadcast, live stage, and instrument applications as well. With the Core 6061 subminiature microphone and Core technology, DPA could reduce the size of the capsule into a 0.12" microphone. Despite the small size the performance is comparable to the 0.20" miniature capsule. It is built with a stainless steel, PVD-coated mic housing. In addition, distortion is minimized and from a whisper to a scream, you will experience increased clarity and openness. - 3mm Core capsule technology
- DPA sound quality in a 60% smaller package
- Stainless Steel, PVD-coated mic housing
- Modular adapter system fits most professional wireless systems
In the Box DPA Microphones d:screet Core 6061 Series Subminiature Microphone (Loud SPL, Black) 8-Way Clip Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:screet Core 6061 Series Subminiature Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones Core 6061 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Operated | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 68 dB A-Weighted | | Equivalent Noise Level | 26 dB A-Weighted | | Maximum SPL | 144 dB SPL RMS | | THD | < 1% | | Impedance | 40 Ohms | | Sensitivity | 6 mV/Pa | | Dynamic Range | 102 dB A-Weighted | | | | Output Connector | Microdot | | Cable Length | 5.9' / 179.83 cm | | Operating Voltage | 5 to 10 V | | Operating Humidity | 90% | | Length | 0.13" / 3.30 mm | | Diameter | 0.57" / 14.48 mm | | Weight | 0.29 oz / 8 g |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
