User Manual for DPA Microphones d:screet Film Kit with Omnidirectional 4071 Presence Boost Microphone Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:screet Film Kit with
- Product category: Microphones for Wireless DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Microphones for Wireless
|
User manual for the DPA Microphones d:screet Film Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|

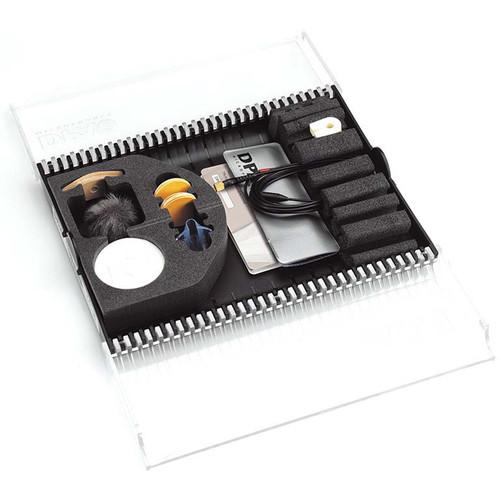

Product description The black d:screet Film Kit with Omnidirectional 4071 Presence Boost Microphone from DPA includes a SC4071 miniature microphone with reinforced cable relief, ten double-sided tapes for concealment fixtures, ten double-sided mic tapes, and a sturdy storage case. It can be used to capture audio for speech and vocals applications, in film or TV productions, and where the microphone needs to be invisible.The mic features a 5 dB soft boost in the 4 to 6 kHz frequency range for added presence and intelligibility on vocals. When recording voices using mic placement on a performer's body, no frequency below 100 Hz is attractive. For this reason, an acoustical low-cut has been incorporated in the mic capsule so the built-in preamplifier (and the wireless system) will have much larger headroom. Furthermore, the filter helps remove distant rumbling from cars, trains, airplanes, etc. The SC4071 is also resistant to humidity and moisture as well as extreme temperature change. The microphone cable terminates with a microdot connector and requires an adapter (sold separately) for compatibility with wireless bodypack transmitters. In the Box DPA Microphones d:screet Film Kit with Omnidirectional 4071 Presence Boost Microphone (Black) 10 x Double-Sided Tape for Concealer 10 x Double-Sided Mic Tape Miniature Mesh for Microphone Sturdy Case with Clear Lid Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:screet Film Kit with Omnidirectional 4071 Presence Boost Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones FMK-SC4071 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Operated | | Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 68 dB A-Weighted | | Equivalent Noise Level | 38 dB A-Weighted | | Maximum SPL | 144 dB SPL Peak | | THD | < 1% | | Impedance | 40 Ohms | | Sensitivity | 6 mV/Pa at 1 kHz | | Dynamic Range | 97 dB A-Weighted | | | | Output Connector | Microdot | | Cable Length | 5.9' / 1.80 m | | Operating Voltage | 5 to 50 V | | Operating Humidity | 0 to 90% | | Length | 0.67" / 1.70 cm | | Diameter | 0.21" / 5.33 mm | | Weight | 0.26 oz / 7 g |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
