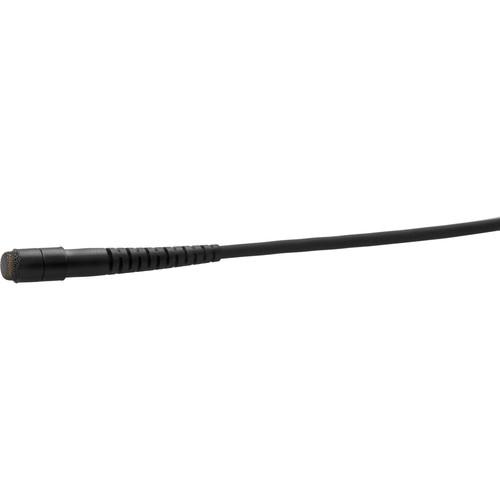

User Manual for DPA Microphones d:screet Heavy Duty 4071 Omnidirectional Microphone with Low-cut, Presence Boost and MicroDot Connector Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:screet Heavy Duty 4071
- Product category: Microphones for Wireless DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Microphones for Wireless
|
User manual for the DPA Microphones d:screet Heavy Duty 4071 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The black d:screet Heavy Duty 4071 Omnidirectional Microphone with Low-cut, Presence Boost and MicroDot Connector from DPA Microphones is designed for use in performance applications to capture audio for broadcasters, TV studios, news anchors, stage plays and more. It features a 4071 omnidirectional condenser microphone with low-cut and presence boost equalization for voice built into the capsule. This provides an increase in headroom when using the built-in pre amp with wireless system. The heavy duty 4071 omnidirectional microphone features a frequency range of 100 Hz to 15 kHz and is resistant to moisture and extreme temperature changes and humidity. This heavy duty microphone is built with a reinforced cable relief to withstand the constant twists, bends, pulls that are part of everyday use. The 4071 miniature microphone has a low noise floor and can handle high SPLs. A carry case is included. - Omnidirectional Pattern
- The omnidirectional condenser mic polar-pattern does not need to be aimed directly at the sound source when recording. This offers more detail and a natural sounding sonic character when recording in various environments.
- Built In Boost to Compensate for Loss
- An important consideration when placing a microphone on the body, especially on the chest, is that the frequency range of the consonants is damped, resulting in poor intelligibility. The 4071 has a built-in boost to compensate for this loss.
- A Durable Package
- The 4071 miniature mic is designed to withstand the toughest of conditions. A double vent protection system provides a greater resistance to humidity and sweat. The microphone features a reinforced cable relief, gold treated diaphragm, and microphone housing, plus a kevlar reinforced cable.
In the Box DPA Microphones d:screet Heavy Duty 4071 Omnidirectional Microphone with Low-cut, Presence Boost and MicroDot Connector (Black) Carry Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:screet Heavy Duty 4071 Omnidirectional Microphone with Low-cut, Presence Boost and MicroDot Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4671-OL-H-B00 Specs | Polar Pattern | Omnidirectional | | Principle of Operation | Pressure | | Cartridge Type | Pre-polarized condenser element with vertical diaphragm | | Frequency Range | 100 Hz to 15 kHz with typical 5 dB soft boost at 4 to 6 kHz, ± 2 dB | | Sensitivity | 6 mV/Pa at 1 kHz; -44.4 dB re. 1 V/Pa (nominal, +/-3 dB) | | Equivalent Noise Level | A-Weighted:
Typical: 26 dBA re. 20 µPa
Maximum: 28 dBA
ITU-R BS.468-4:
Typical: 38 dB
Maximum: 40 dB | | S/N Ratio | 68 dBA, 1 kHz at 1 Pa (94 dB SPL): | | Total Harmonic Distortion (THD) | <1% THD up to 123 dB SPL peak
<1% THD up to 120 dB SPL RMS sine | | Dynamic Range | Typical 97 dB | | Maximum Sound Pressure Level (SPL) | Peak Before Clipping: 144 dB | | Output Impedance | 30 to 40 Ω | | Cable Drive Capability | Up to 984' (300 m) | | Connector | MicroDot | | Temperature Range | -14 to 113°F (-10 to 45°C) | | Relative Humidity | Up to 90% | | Cable Length | 5.9' (1.8 m)
Cable Diameter: 0.06" (1.6 mm) | | Dimensions (Ø x L) | 0.2 x 0.67" (5.4 x 17 mm) | | Weight | 0.32 oz (9 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 6.0 x 6.0 x 2.0" |
