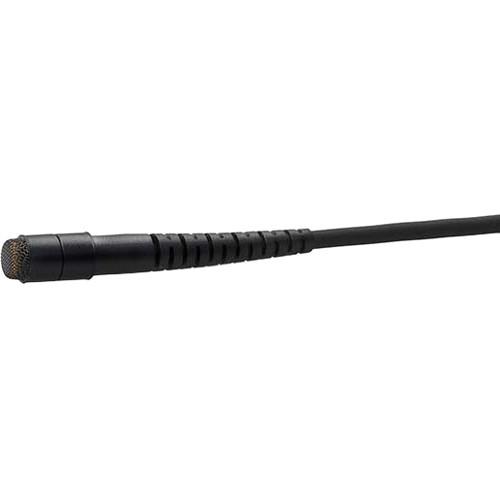

Product description The black d:screet Heavy Duty Omni Mic, Hi-Sensitivity and Hardwired 3-Pin LEMO for Sennheiser Transmitters from DPA Microphones is a miniature microphone for capturing audio. It is used in various environments for applications where the maximum amount of security is required such as in theater, television, and more. This microphone features the 4060 hi-sensitivity capsule. It is used where visual size is of less importance. It features an omnidirectional polar pattern and has a frequency range of 20 Hz to 20 kHz. This d:screet heavy-duty omnidirectional microphone is built with a heavy-duty stainless steel housing, a heavy-duty cable relief, and a thick 2.2mm cable. The microphone is resistant to humidity and moisture. With a large selection of optional accessories available it can be used for wireless or hardwired applications. A carry case, a soft-boost grid, and a high-boost grid are included. - Heavy Duty Miniature Microphone
- Durable and built with a stainless steel housing and features a heavy-duty cable relief and a thick 2.2mm cable
- A Small Footprint
- A great choice for any application requiring a big sound and a small footprint

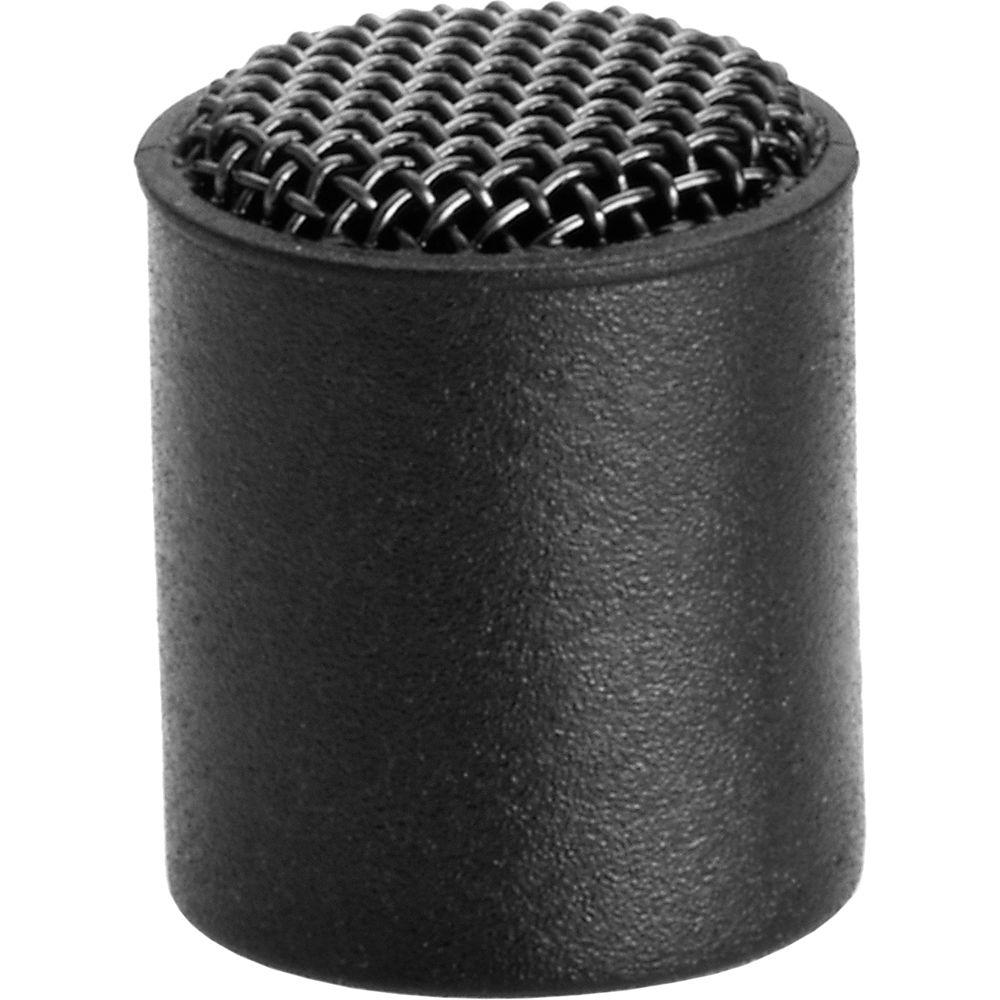

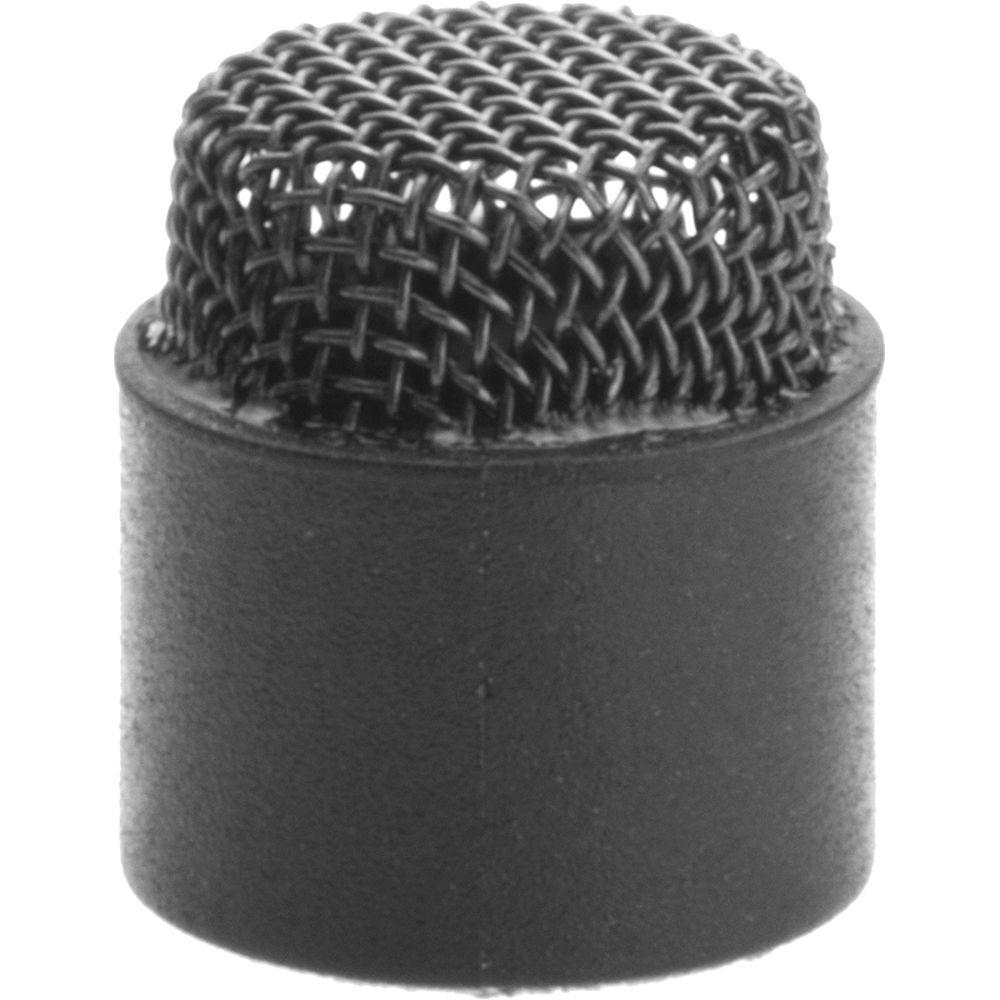

In the Box DPA Microphones d:screet Heavy Duty Omni Mic, Hi-Sensitivity and Hardwired with 3-Pin LEMO for Sennheiser Transmitters (Black) Hardwired 3-Pin LEMO Carry Case Soft-Boost Grid High-Boost Grid Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:screet Heavy Duty Omni Mic, Hi-Sensitivity and Hardwired with 3-Pin LEMO for Sennheiser Transmitters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 60 Specs | Directional Characteristic | Omnidirectional | | Principle of Operation | Pressure gradient | | Cartridge Type | Pre-polarized condenser element with vertical diaphragm | | Frequency Range | +/- 2 db:
Soft-boost grid: 20 Hz to 20 kHz, 3 dB boost at 8 to 20 kHz
High-boost grid: 10 dB boost at 12 kHz | | Sensitivity | 6 mV/Pa, -44.5 dB re. 1 V/Pa (+/- 3 dB at 1 kHz) | | Equivalent Noise Level | A-weighted: Typ. 23 dB (A) re. 20 µPa (max. 26 dB (A))
ITU-R BS.468-4 Typ. 35 dB (max. 38 dB) | | Signal to Noise Ratio | A-weighted, re. 1 kHz at 1 Pa, 94 dB SPL: 71 dB (A) | | Total Harmonic Distortion (THD) | <1% THD up to 123 dB SPL peak
<1% THD up to 120 dB SPL RMS sine | | Dynamic Range | Typ. 100 dB | | Maximum SPL | Peak Before Clipping: 134 dB | | Output Impedance | 30 to 40 Ohms depending on current draw | | Cable Drive Capability | Up to 984' (300 m) | | Power Supply | For Wireless Systems: Min. 5 V - max. 50 V through DPA adapter
With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance | | Connector | Hardwired with 3-pin LEMO | | Polarity | Positively increasing sound pressure produces positive going voltage on MicroDot pin | | Temperature Range | -40 to 113 ° F (-40 to 45 ° C) | | Relative Humidity | Up to 90% | | Cable | Length: 6' (1.8 m)
Diameter: 0.09" (2.2 mm) | | Dimensions (Ø x L) | 0.21 x 0.7" (5.4 x 17.6 mm) | | Weight | 0.46 oz (13 g) including cable |
