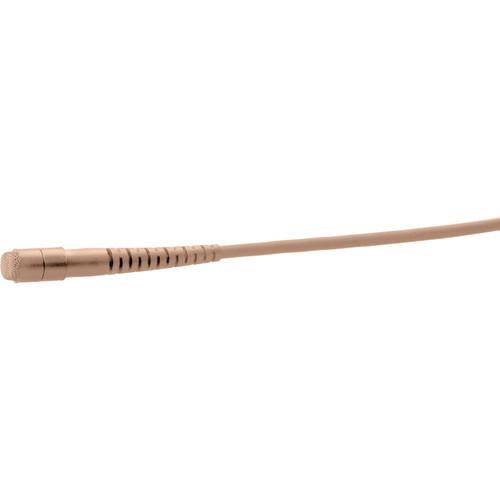

User Manual for DPA Microphones d:screet Heavy Duty Omni Microphone, Hi-Sensitivity with MicroDot Connector Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:screet Heavy Duty Omni
- Product category: Microphones for Wireless DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Microphones for Wireless
|
User manual for the DPA Microphones d:screet Heavy Duty Omni contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The beige d:screet Heavy Duty Omni Microphone, Hi-Sensitivity with MicroDot Connector from DPA Microphones is a miniature microphone for capturing audio. It is used in various environments in applications where you require the maximum amount of security such as in theater, television, and more. This microphone features the 4060 high sensitivity capsule. It is used where visual size is of less importance. It features an omnidirectional polar pattern and has a frequency range of 20Hz to 20kHz. This d:screet omnidirectional microphone is built with a heavy-duty stainless steel housing, a heavy-duty cable relief, and a thick 2.2mm cable. With a large selection of optional accessories available it can be used for wireless or hardwired applications. A carry case, soft boost grid, and a high boost grid are included. - Heavy Duty Miniature Microphone
- Durable and built with a stainless steel housing and features a heavy-duty cable relief and a thick 2.2mm cable
- A Small Footprint
- A great choice for any application requiring a big sound and a small footprint
In the Box DPA Microphones d:screet Heavy Duty Omni Microphone, Hi-Sensitivity with MicroDot Connector (Beige) Carry Case Soft Boost Grid High Boost Grid Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:screet Heavy Duty Omni Microphone, Hi-Sensitivity with MicroDot Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 60 Specs | Directional Characteristic | Omnidirectional | | Principle of Operation | Pressure | | Cartridge Type | Pre-polarized condenser element with vertical diaphragm | | Frequency Range | +/- 2 db:
Soft boost grid: 20 Hz to 20 kHz, 3 dB soft boost at 8 to 20 kHz
High boost grid: 20 Hz to 20 kHz, 10 dB boost at 12 kHz | | Sensitivity | 20 m V/Pa, -34 dB re. 1 V/Pa (+/- 3 dB at 1 kHz) | | Equivalent Noise Level | Typ. 23 dB (A) re. 20 µPa (max. 26 dB (A)), A-weighted
Typ. 35 dB (max. 38 dB) ITU-R BS.468-4 | | Signal to Noise Ratio | 71 dB (A) A-weighted, re. 1 kHz at 1 Pa, 94 dB SPL | | THD | < 1 % THD up to 123 dB SPL peak, < 1 % THD up to 120 dB SPL RMS sine | | Dynamic Range | Typ. 100 dB | | Maximum SPL | 134 dB peak before clipping | | Output Impedance | 30 to 40 Ω | | Cable Drive Capability | Up to 984' (300 m) | | Power Supply | For Wireless Systems: Min. 5 V - max. 50 V through DPA adapter
With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance | | Connector | MicroDot | | Polarity | Positively increasing sound pressure produces positive going voltage on MicroDot pin | | Temperature Range | -40 to 113 ° F (-40 to 45 ° C) | | Relative Humidity | up to 90% | | Cable | Length: 6" (1.8 m)
Diameter: 0.09" (2.2 mm) | | Dimensions (L x Diam) | Microphone: 0.5 x 0.2" (12.7 x 5.1 mm) | | Weight | 0.26 oz (7.5 g) including cable and MicroDot connector | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 6.0 x 6.0 x 2.0" |
