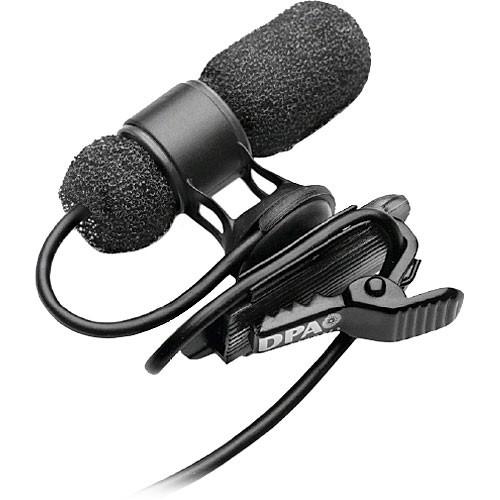

User Manual for DPA Microphones d:screet mini 4080 Miniature Cardioid Lavalier Microphone with a Hardwired TA4F Connector for Shure Wireless Systems Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:screet mini 4080 Miniature
- Product category: Microphones for Wireless DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Microphones for Wireless
|
User manual for the DPA Microphones d:screet mini 4080 Miniature contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The black d:screet mini 4080 Miniature Cardioid Lavalier Microphone with a Hardwired TA4F Connector for Shure Wireless Systems from DPA Microphones is designed for speech reproduction in broadcast, conference, and live applications in the studio or the field. It features a pre-EQ'd 4dB presence boost to help accentuate vocals and the speaking range. The 4080 can be clipped to both left- and right-buttoned shirts and includes black and white pop filters. In the Box DPA Microphones d:screet mini 4080 Miniature Cardioid Lavalier Microphone with a Hardwired TA4F Connector for Shure Wireless Systems (Black) Black Pop Filter White Pop Filter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:screet mini 4080 Miniature Cardioid Lavalier Microphone with a Hardwired TA4F Connector for Shure Wireless Systems in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4080 Specs | Polar Pattern | Cardioid | | Principle of Operation | Pressure gradient | | Cartridge Type | Pre-polarized condenser element with vertical diaphragm | | Frequency Range | 250 Hz to 17 kHz with a typical 4 dB soft boost @ 4 to 6 kHz (-5 dB @ 100 Hz), +/- 2 dB | | Sensitivity | 20 mV/Pa at 1 kHz; -34.4 dB re. 1 V/Pa (nominal, +/-3 dB @ 1 kHz) | | Equivalent Noise Level | A-Weighted:
Typical: 23 dBA re. 20 µPa
Maximum: 26 dBA | | S/N Ratio | 71 dBA, 1 kHz at 1 Pa (94 dB SPL) | | Total Harmonic Distortion (THD) | <1% THD up to 123 dB SPL peak
<1% THD up to 120 dB SPL RMS sine | | Dynamic Range | Typical: 100 dB | | Maximum Sound Pressure Level (SPL) | Peak Before Clipping: 134 dB | | Output Impedance | 30 to 40 Ω | | Cable Drive Capability | Up to 984' (300 m) | | Connector | Hardwired TA4F | | Cable Length | 4' (1.2 m)
Cable Diameter: 0.06" (1.6 mm) | | Dimensions (Ø x L) | 0.4 x 1.2" (10 x 30 mm) | | Weight | 0.5 oz (15 g) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 4.2 x 2.7 x 1.0" |
