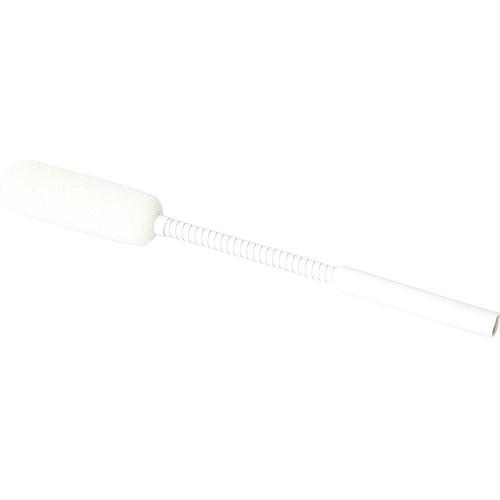

User Manual for DPA Microphones d:screet SC4098 Supercardioid Podium Microphone, 15cm, All Gooseneck with MicroDot Connector Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:screet SC4098 Supercardioid Podium
- Product category: Gooseneck Microphones DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Gooseneck Microphones
|
User manual for the DPA Microphones d:screet SC4098 Supercardioid Podium contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The white d:screet SC4098 Supercardioid Podium Microphone, 15cm, All Gooseneck with MicroDot Connector by DPA Microphones is for capturing audio. It is used in various environments in applications such as public speaking, lectures, houses of worship and more. It features a supercardioid capsule and has a frequency range of 20 Hz to 20 kHz. This microphone is designed to deliver clean intelligible sound and is based on the d:screet miniature series from DPA microphones. It features a high rejection of radio frequency interference. This mic is designed to deliver a high intelligibility with controlled directionality and rejection of background noise. A windscreen and carry tube is included. - Accurate, natural sound with superior gain before feedback
- Great for public speaking and addressing a crowd
- Minimal visual impact, available in black and white
- Exceptional RF interference rejection
In the Box DPA Microphones d:screet SC4098 Supercardioid Podium Microphone, 15cm, All Gooseneck with MicroDot Connector (White) Windscreen Carry Tube Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:screet SC4098 Supercardioid Podium Microphone, 15cm, All Gooseneck with MicroDot Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones SC4098 Specs | Directional Characteristic | Supercardioid | | Principle of Operation | Pressure gradient | | Cartridge Type | Pre-polarized condenser | | Frequency Range | 20 Hz to 20 kHz
± 2 dB, 20 cm (7.9 in) distance: 100 Hz - 15 kHz with 3 dB diffuse field boost at 8-15 kHz.
Permanent 2nd order low-cut filter (-3 dB at 80 Hz) | | Sensitivity | Nominal, ± 3 dB at 1 kHz: 16 mV/Pa; -36 dB re. 1 V/Pa | | Equivalent Noise Level | A-weighted: Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A))
ITU-R BS.468-4: Typ. 35 dB (max. 38 dB) | | Signal-to-Noise Ratio | A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): 71dB (A) | | Total Harmonic Distortion (THD) | <1 % up to 125 db spl peak
<1 % up to 122 dB SPL RMS sine | | Dynamic Range (Typical) | Typ. 102 dB | | Maximum Sound Level | Peak before clipping: 136 dB | | Output Impedance | 100 Ω | | Minimum Load Impedance | 2 kΩ | | Cable Drive Capability | Up to 984' (300 m) | | Output Balance Principle | Impedance balancing with Active Drive | | Common Mode Rejection Ratio | > 50 dB | | Power Supply | For Full Performance: 48 V phantom power ± 4 V | | Current Consumption | 3.5 mA | | Output Connectors | MicroDot | | Polarity | +V at pin 2 for positive sound pressure | | Microphone Length | 6" (15 cm) | | Weight | 2.6 oz (75 g) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.0 x 6.0 x 3.0" |
