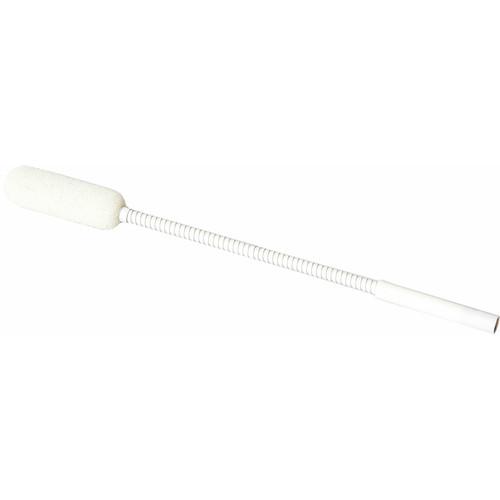

User Manual for DPA Microphones d:screet SC4098 Supercardioid Podium Microphone, 45cm, Hanging with MicroDot Hardwire Connector Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:screet SC4098 Supercardioid Podium
- Product category: Gooseneck Microphones DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Gooseneck Microphones
|
User manual for the DPA Microphones d:screet SC4098 Supercardioid Podium contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The white d:screet SC4098 Supercardioid Podium Microphone, 45cm, Hanging with MicroDot Hardwire Connector from DPA lends itself to a host of applications such as a hanging mic, a floor mic, or a wireless podium solution. The mic offers high-speech intelligibility and clarity of voice, and it provides a linear, natural sound combined with a Scandinavian design and a nice visual look.This microphone is designed around a d:screet miniature microphone capsule and interference tube technology. The controlled capsule's directional characteristic provides a high rejection of background noise and radio-frequency interference.Furthermore, this series of miniature microphones works with all leading wireless mic solutions including Lectrosonics, Sennheiser, Shure, Sony, and more. Find the adapter that fits your system (sold separately) and your stage setup is more flexible than ever. - Variants
- The SC4098 Supercardioid Podium Microphone is available in many variants. It comes in either black or white, with either an XLR or a MicroDot termination, and in five lengths ranging from 6 to 48"(16 to 122cm).
- Flexible Adapter System
- The adapters for wireless systems give you flexible, simple, and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a whole new microphone. And when you make the switch, you won't hear any loss or change in sound quality.
In the Box DPA Microphones d:screet SC4098 Supercardioid Podium Microphone, 45cm, Hanging with MicroDot Hardwire Connector (White) Foam Windscreen for SC4098, 5-Pieces (White) fsuuuywdvfrtyrcbcysw Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:screet SC4098 Supercardioid Podium Microphone, 45cm, Hanging with MicroDot Hardwire Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4098-DL-G-W00-045 Specs | Directional Characteristic | Supercardioid | | Principle of Operation | Pressure gradient | | Cartridge Type | Pre-polarized condenser | | Frequency Range | 20 Hz to 20 kHz
± 2 dB, 20 cm (7.9 in) distance: 80 Hz - 15 kHz with 3 dB diffuse field boost at 8-15 kHz | | Sensitivity | Nominal, ± 3 dB at 1 kHz: 16 mV/Pa; -36 dB re. 1 V/Pa | | Equivalent Noise Level | A-weighted: Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A))
ITU-R BS.468-4: Typ. 35 dB | | Signal-to-Noise Ratio | A-weighted, re. 1 kHz at 1 Pa (94 dB SPL): 71dB (A) | | Total Harmonic Distortion (THD) | <1 % up to 125 dB SPL peak | | Dynamic Range (Typical) | Typ. 102 dB | | Maximum Sound Level | Peak before clipping: 135 dB | | Output Impedance | From MicroDot: 30 to 40 Ohms
From DAD6001 adapter or XLR variant: 100 Ohms | | Minimum Load Impedance | 2 kOhms | | Cable Drive Capability | Up to 984' / 300 m with XLR connected or DAD6001 XLR Adapter | | Output Balance Principle | Signal balanced with DAD6001 XLR adapter or XLR variant | | Common Mode Rejection Ratio | >60 dB from 50 Hz to 15 kHz with DAD6001 XLR Adapter | | Power Supply | Min. 5 V to max. 50 V through DPA adapter for wireless systems
48 V phantom power ±4 V with DPA XLR adapter or XLR variant | | Current Consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD6001 XLR adapter or XLR variant | | Polarity | +V at Microdot pin for positive sound pressure (and pin 2 on DAD6001 XLR adapter or XLR variant) | | Output Connectors | Hardwired MicroDot | | Microphone Length | 18" (45 cm) | | Weight | Not specified by manufacturer |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
