User Manual for DPA Microphones d:screet Slim 4060 Omnidirectional Microphone with Hi-Sensitivity & TA5F Connector for Lectrosonics Wireless Transmitters Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:screet Slim 4060 Omnidirectional
- Product category: Microphones for Wireless DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Microphones for Wireless
 |
User manual for the DPA Microphones d:screet Slim 4060 Omnidirectional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|

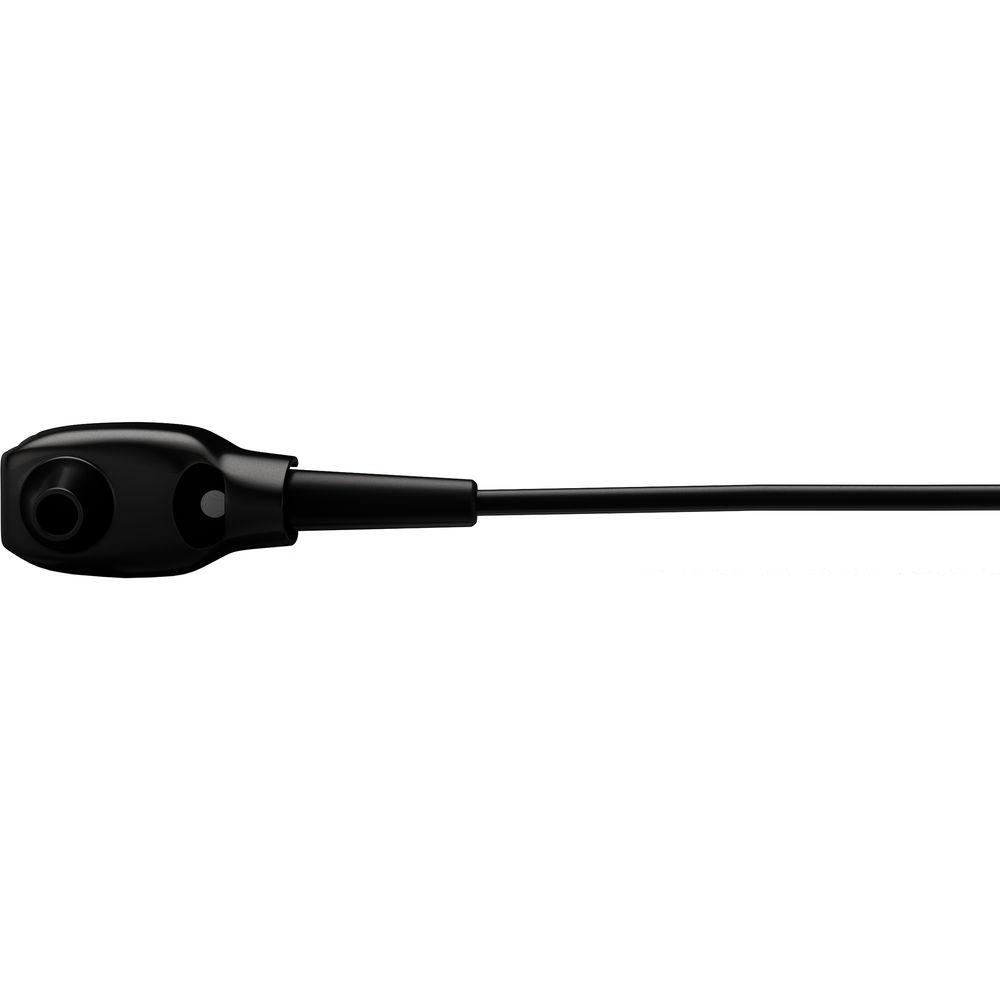

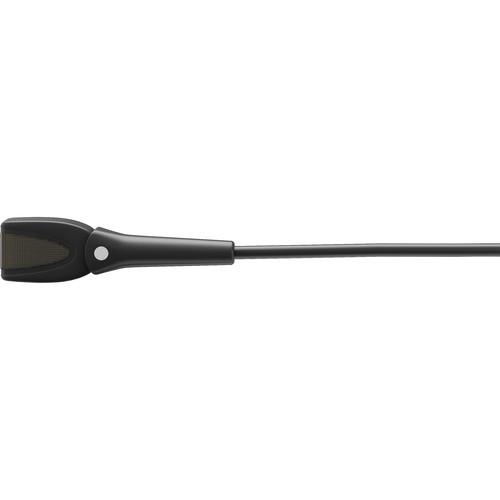

Product description The black d:screet Slim 4060 Omnidirectional Microphone with Hi-Sensitivity & TA5F Connector for Lectrosonics Wireless Transmitters from DPA is a flat, short microphone with a cable that runs perpendicular to the sound inlet, ensuring easy mounting and a tiny footprint. When used with the detachable Button-Hole Mount (included), it becomes completely invisible, ideal in applications for film, theater, broadcast TV, and more.The d:screet Slim 4060 Omnidirectional Microphone easily adapts to your needs via the MicroDot connector, offering a range of accessories and adapters available for all pro wireless systems. Featuring the same capsule as DPA's classic d:screet 4060 Omnidirectional Miniature Microphone, but in a different housing, the Slim Series delivers sound on par with the Miniature Series, making it a suitable choice for any application requiring big sound and a small, hidden footprint. - Button-Hole Mount

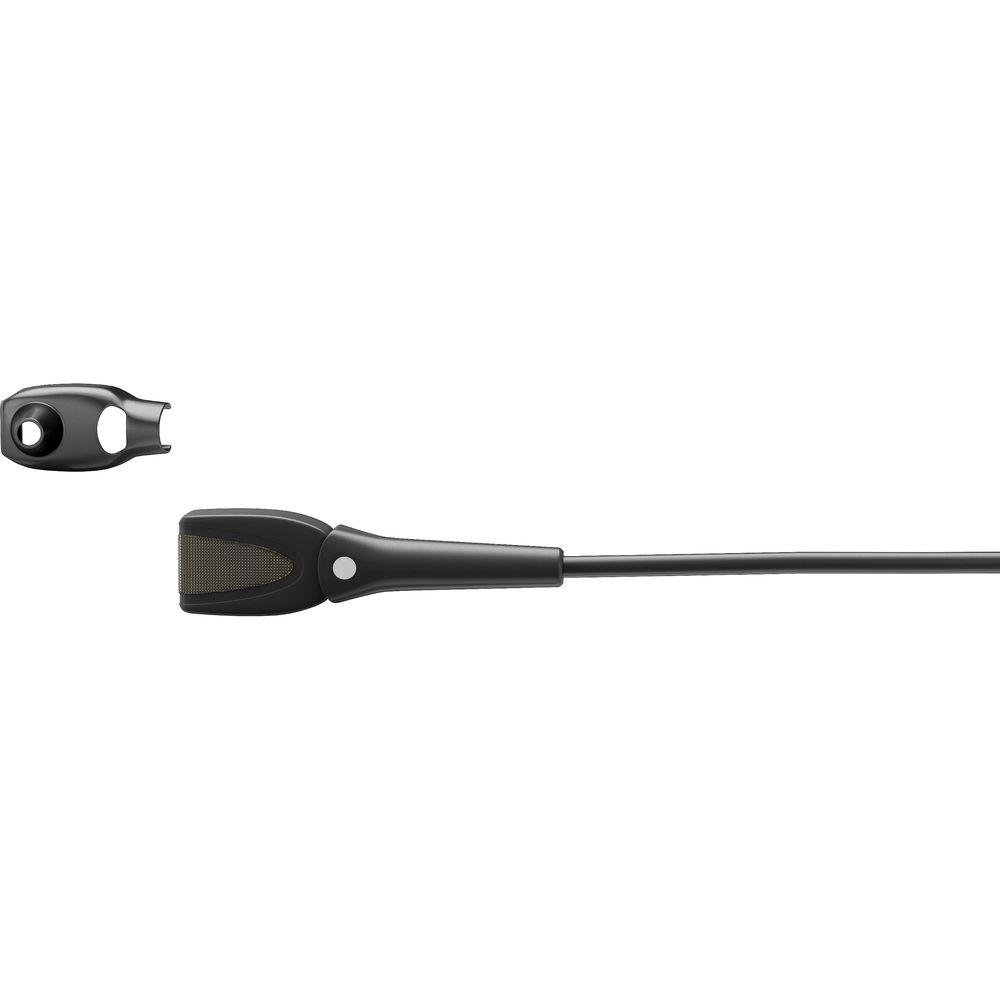

- The d:screet Slim Omnidirectional Microphone comes with a unique Button-Hole Mount. It mounts on the mic head and has a small side-entry pipe (2 mm diameter). The pipe makes it possible for sound to enter the mic when it is concealed in a button hole. It should be mounted on the side of the microphone with the silver dot
- Hardwired for Lectrosonics Wireless Transmitters
In the Box DPA Microphones d:screet Slim 4060 Omnidirectional Microphone with Hi-Sensitivity & TA5F Connector for Lectrosonics Wireless Transmitters (Black) Button-Hole Mount Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:screet Slim 4060 Omnidirectional Microphone with Hi-Sensitivity & TA5F Connector for Lectrosonics Wireless Transmitters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 60 Specs | Directional Characteristic | Omnidirectional | | Principle of Operation | Pressure | | Cartridge Type | Pre-polarized condenser | | Frequency Range | +/- 2 db:
Soft Boost Grid: 20 Hz to 20 kHz, 3 dB soft boost at 8 to 20 kHz
High Boost Grid: 20 Hz to 20 kHz, 10 dB boost at 12 kHz | | Sensitivity | 20 m V/Pa, -34 dB re. 1 V/Pa (+/- 3 dB at 1 kHz) | | Equivalent Noise Level | A-weighted: Typ. 23 dB (A) re. 20 µPa (max. 26 dB (A))
ITU-R BS.468-4: Typ. 35 dB (max. 38 dB) | | Signal to Noise Ratio | 71 dB (A) A-weighted, re. 1 kHz at 1 Pa, 94 dB SPL | | THD | < 1 % THD up to 123 dB SPL peak, < 1 % THD up to 120 dB SPL RMS sine | | Dynamic Range | Typ. 100 dB | | Maximum SPL | 134 dB peak before clipping | | Output Impedance | From MicroDot: 30 to 40 ohms | | Cable Drive Capability | Up to 984' (300 m) | | Power Supply | For Wireless Systems: min. 5 V - max. 50 V through DPA adapter
With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance | | Current Consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR adapter | | Connector | TA5F | | Polarity | Positively increasing sound pressure produces positive going voltage on MicroDot pin | | Temperature Range | -40 to 113 ° F (-40 to 45 ° C) | | Relative Humidity | Up to 90% | | Cable | Length: 5.9' (1.8 m)
Diameter: 0.06" (1.6 mm) | | Dimensions (L x Diam) | Microphone: 0.5 x 0.2" (12.7 x 5.1 mm) | | Weight | 0.3 oz (8.5 g) including cable and MicroDot connector | | | | Box Dimensions (LxWxH) | 6.0 x 6.0 x 2.0" |
