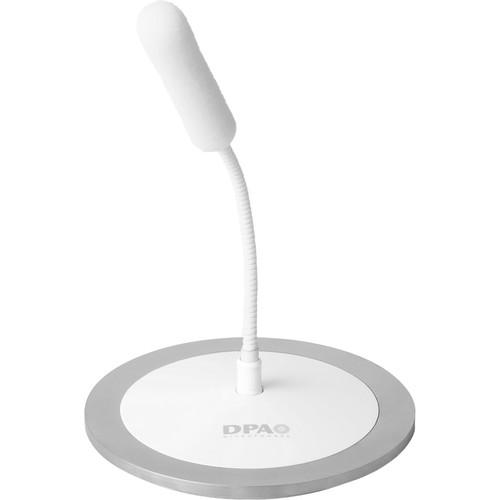

User Manual for DPA Microphones d:sign 4098 Supercardioid 6" Ceiling Microphone Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:sign 4098 Supercardioid 6"
- Product category: Gooseneck Microphones DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Gooseneck Microphones
|
User manual for the DPA Microphones d:sign 4098 Supercardioid 6" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The white d:sign 4098 Supercardioid 6" Ceiling Microphone from DPA is a low noise and high sensitivity microphone that offers a clear, transparent, and natural sound and features a 6" gooseneck and a round base. It can be used to capture audio in conference venues, meeting rooms, and board rooms.The 4098 supercardioid polar pattern captures audio directly in front of the mic, helping to minimize unwanted background noise and other off-axis sounds. The microphone base is designed to work with the 4098 microphone and features an unobtrusive design with a white, non-reflective surface and an integrated shockmount. This insures that vibrations as well as reverberations from people walking in and out of the room, will not affect the sound.Furthermore, the audio cables are an integral part of the microphone and are integrated in the base unit. The d:sign Supercardioid Ceiling Microphone comes in three standard kits to meet your needs. This version is equipped with a base configured with a Microdot connector. A foam windscreen is included. In the Box DPA Microphones d:sign 4098 Supercardioid 6" Ceiling Microphone (White, MicroDot) Base with MicroDot Connector Cable for SC4098 Microphone (White) Foam Windscreen Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:sign 4098 Supercardioid 6" Ceiling Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones d:sign 4098 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Polar Pattern | Supercardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 71 dB A-Weighted | | Equivalent Noise Level | 23 dB A-Weighted | | Maximum SPL | 135 dB SPL RMS | | Pad | None | | THD | < 1% | | Impedance | 40 Ohms | | Load Impedance | 2 kOhms | | Sensitivity | 16 mV/Pa at 1 kHz | | CMRR | 60 dB | | Dynamic Range | 102 dB A-Weighted | | | | Output Connectors | 1 x Microdot | | Operating Current Consumption | 1.5 mA | | Operating Voltage | 5 to 50 V | | Operating Temperature | -40 to 113°F / -40.00 to 45.00°C | | Operating Humidity | 90% | | Length | 6" / 15.24 cm | | Diameter | 0.4" / 10.16 mm | | Weight | 0.4 oz / 11.34 g |
