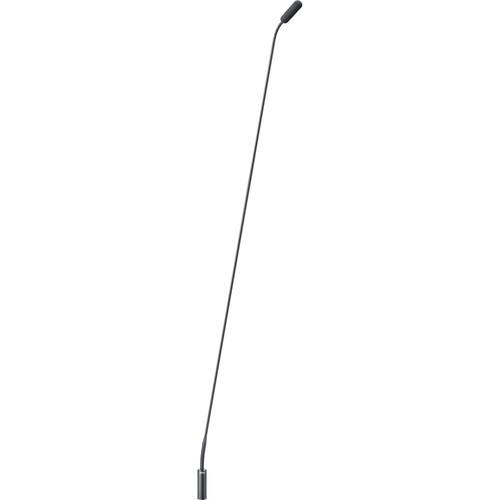

User Manual for DPA Microphones d:sign 4098 Supercardioid Top and Bottom Gooseneck Microphone with 48" Boom Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:sign 4098 Supercardioid Top
- Product category: Gooseneck Microphones DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Gooseneck Microphones
|
User manual for the DPA Microphones d:sign 4098 Supercardioid Top contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The black d:sign 4098 Supercardioid Top and Bottom Gooseneck Microphone with 48" Boom from DPA is a miniature mic with high sensitivity and low noise that offers a clear, transparent, and natural sound. The mic is wired with an XLR connector and can be used as a podium mic to capture audio in speech applications for live stage, boardrooms, and video conferencing situations. The top and bottom gooseneck sections allow for easy positioning adjustment.This 4098 supercardioid microphone is capable of handling high SPLs before clipping and is equipped with a frequency range of 20 Hz to 20 kHz. The microphone delivers high speech intelligibility and is built with a linear response, low distortion, and an extremely large dynamic range. This mic sounds natural even in challenging environments. - Wireless podium mic capability
- Highly directional and very isolated
- High rejection of radio frequency interference
- Sleek Scandinavian design
In the Box DPA Microphones d:sign 4098 Supercardioid Top and Bottom Gooseneck Microphone with 48" Boom (Black, XLR ) Foam Windscreen Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:sign 4098 Supercardioid Top and Bottom Gooseneck Microphone with 48" Boom in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones d:sign 4098 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Polar Pattern | Supercardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 71 dB A-Weighted | | Equivalent Noise Level | 23 dB A-Weighted | | Maximum SPL | 135 dB SPL Peak | | THD | < 1% | | Impedance | 40 Ohms | | Load Impedance | 2 kOhms | | Sensitivity | 16 mV/Pa at 1 kHz | | Dynamic Range | 102 dB A-Weighted | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 1.5 mA | | Operating Voltage | 48 V ± 4 V | | Operating Temperature | -40 to 113°F / -40.00 to 45.00°C | | Operating Humidity | 0 to 90% | | Length | 48" / 121.92 cm | | Diameter | 0.4" / 10.16 mm | | Weight | 4.5 oz / 128 g |
