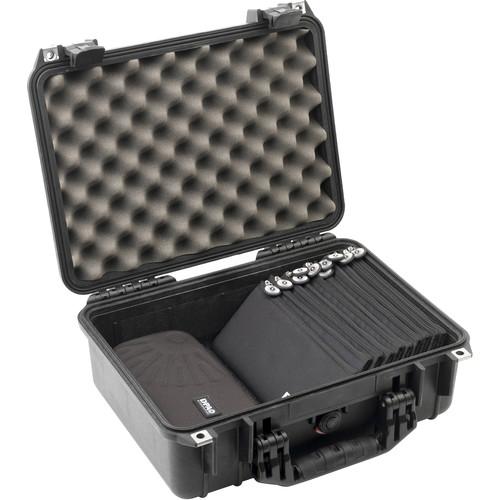

User Manual for DPA Microphones d:vote Core 4099 Classic Touring Kit, 10 Mics and Accessories for Loud SPL Click to enlarge the picture
Contents of the user manual for the DPA Microphones d:vote Core 4099 Classic
- Product category: Small Diaphragm Condenser DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Small Diaphragm Condenser
|
User manual for the DPA Microphones d:vote Core 4099 Classic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The d:vote Core 4099 Classic Touring Kit, 10 Mics and Accessories for Loud SPL from DPA is a complete solution for capturing instruments or vocals in recording and live sound reinforcement applications. It is designed for on-the-road use and is suitable for rental companies, musicians, theaters, touring companies, and similar scenarios.The kit includes ten CORE 4099 instrument microphones with MicroDot connectors, ten MicroDot to 3-pin XLR adapters with belt clips, ten miniature microphone cables, eight violin clips, two cello clips, four guitar clips, two piano clips, two clamp mounts, two clips for trumpet and sax, two universal clips, two bass clips, a stand mount, and a case for transportation.In addition, the detachable lightweight cable connects the 5.5" gooseneck to the XLR adapter, enabling you to conveniently mount the microphone on an instrument before connecting it. The CORE 4099 microphone offers a low profile and unobtrusive design combined with high quality sound and accurate dynamics for a wide variety of instruments. In the Box DPA Microphones d:vote Core 4099 Classic Touring Kit, 10 Mics and Accessories for Loud SPL 10 x d:vote CORE 4099 Microphones 10 x DAD6001 MicroDot to 3-pin XLR Adapter (Belt Clip) 10 x CM2218B00 Heavy Duty Miniature Microdot Extension Cable (5.9', Black) 8 x VC4099 Violin Mounting Clip for 4099 Microphone 2 x Mounting Clip for DPA 4099C Clip Microphone for Cello 2 x PC4099 Magnet Mount 4 x GC4099 Guitar Mounting Clip for 4099 Microphone 2 x STC4099 Saxophone Mounting Clip for 4099 Microphone 2 x UC4099 Universal Clip 2 x Mounting Clip for DPA 4099B Clip Microphone for Acoustic Bass 2 x CM4099 - Clamp Mount for d:vote 4099 Instrument Microphone SM4099 Stand Mount for d:vote 4099 Instrument Microphone Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones d:vote Core 4099 Classic Touring Kit, 10 Mics and Accessories for Loud SPL in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones D:VOTE CORE 4099 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Polar Pattern | Supercardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 71 dB A-Weighted | | Equivalent Noise Level | 23 dB A-Weighted | | Maximum SPL | 142 dB SPL Peak | | Pad | None | | THD | < 1% | | Impedance | 100 Ohms | | Sensitivity | 6 mV/Pa at 1 kHz | | Low-Cut Filter | None | | CMRR | 60 dB | | Dynamic Range | 108 dB A-Weighted | | | | Output Connectors | 1 x Microdot | | Cable Length | 5.9' / 1.80 m | | Operating Current Consumption | 1.5 mA | | Operating Voltage | 5 to 50 V | | Operating Temperature | -40 to 113°F / -40.00 to 45.00°C | | Operating Humidity | 0 to 90% | | Length | 1.8" / 4.57 cm | | Diameter | 0.21" / 5.33 mm | | Weight | 0.95 oz / 27 g |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
