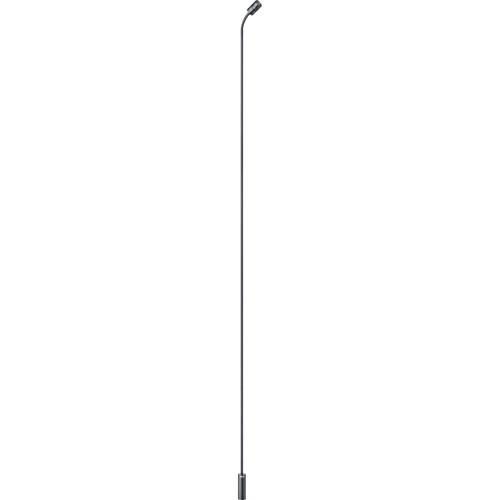

User Manual for DPA Microphones DP4018F120 Supercardioid Microphone with 47" Floor Stand Boom Click to enlarge the picture
Contents of the user manual for the DPA Microphones DP4018F120 Supercardioid Microphone with
- Product category: Small Diaphragm Condenser DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Small Diaphragm Condenser
|
User manual for the DPA Microphones DP4018F120 Supercardioid Microphone with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The DP4018F120 Supercardioid Microphone from DPA features a 47" floor stand boom and is designed for capturing professional-grade audio. It can be used in venues such as live stage shows, broadcast studios, recording studios, public speaking events, and similar scenarios. When used for voice applications, this microphone has a natural response and provides accurate and clear sound. There is a supercardioid capsule for a smooth and uniform off-axis frequency response. The supercardioid shape is also frequency independent, providing an identical sound color on all sides. The microphone's rear lobe is minimized for isolated frequencies without peaks and dips. The DP4018 uses an MMP-F amplifier and has a frequency range of 20 Hz to 20 kHz. It is powered by 48V of phantom power. - Comes with 47" podium boom
- Voice intelligibility is straight out of the mic, no equalization needed to remove microphone artifacts
- The capsule is a reference standard for its low-distortion and linear approach when used with musical instruments
- Impedance balanced active drive provides common mode rejection at or above 60 dB for maximum RFI rejection
- Provides an accurate and transparent sound
In the Box DPA Microphones DP4018F120 Supercardioid Microphone with 47" Floor Stand Boom Microphone Clip Foam Windscreen 47" (120 cm) Floor Stand Boom Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones DP4018F120 Supercardioid Microphone with 47" Floor Stand Boom in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4018F120 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 3.54" / 90 mm | | Polar Pattern | Supercardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 78 dB A-Weighted | | Equivalent Noise Level | 16 dB A-Weighted | | Maximum SPL | 142 dB SPL | | THD | < 1% | | Impedance | 100 Ohms | | Load Impedance | 2 kOhms | | Sensitivity | -38.4 dB at 1 kHz | | CMRR | 40 dB | | Dynamic Range | 121 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.5 mA | | Operating Voltage | 48 V ± 4 V | | Operating Temperature | -40 to 113°F / -40.00 to 45.00°C | | Operating Humidity | 90 | | Diameter | 0.75" / 19 mm |
