Product description

Essential Guide on How to Mic Talent for Video Read More The DPA EMK4071 ENG/EFP Lavalier Microphone Kit provides the audio fidelity necessary for professional applications in an easily concealed profile worthy of performances, video and film shoots, live broadcasts, etc. This DPA kit is specifically configured to include the microphone and accessories necessary for Electronic News Gathering (ENG) and Electronic Field Production (EFP). The kit includes the 4071-BM (presence boost) lavalier, DAD6024 output stage, and all necessary windscreens and tie-clips in a durable storage case.The 4071-BM lavalier features a presence boost of typically 5 dB at 4 to 6 kHz. This frequency boost is effective in maximizing intelligibility of speech, rendering the 4071-BM a suitable choice for vocal capturing. The microphone features a 5.9-foot cable terminated with a MicroDot connection, and the DAD6024 output stage provides a standard 3-pin XLR output. The 4071 features a natural low-frequency roll-off to minimize the low-frequency "proximity" noise associated with lavaliers that are worn close to the body. The kit is an all-in-one solution for news crews, field recording applications, film, and more.
    Complete Kit
  • The kit includes the 4071-BM microphone and all necessary accessories for a successful ENF/EFP capturing
    Presence Boost
  • The 4071-BM features a linear frequency response with a presence boost that improves the intelligibility and clarity of vocals
    Omnidirectional Polar Pattern
  • The omnidirectional polar pattern provides a generous pickup area at the direct and off-axis sections of the microphone capsule
    Low-Frequency Roll-Off
  • A natural low-frequency roll-off eliminates the proximity effect noise associated with body-worn lavalier microphones
    DAD6024 Output Adapter
  • The DAD6024 output stage/3-pin XLR adapter also excepts the +48V phantom power generated via external sources
In the Box DPA Microphones EMK4071 ENG/EFP Lavalier Microphone Kit

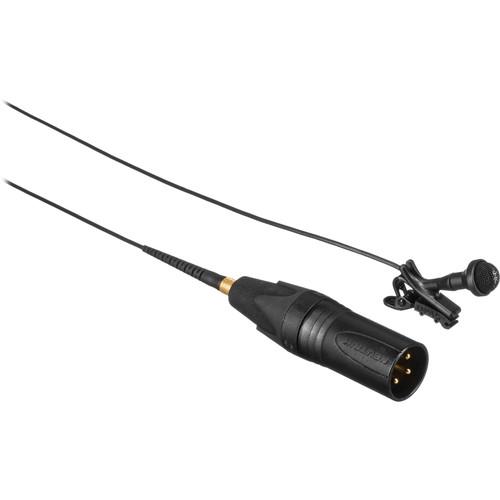

  • 4071-BM Miniature Omnidirectional Mic w/Presence Boost (Black)
  • DAD6024 MicroDot to 3-pin XLR Connector

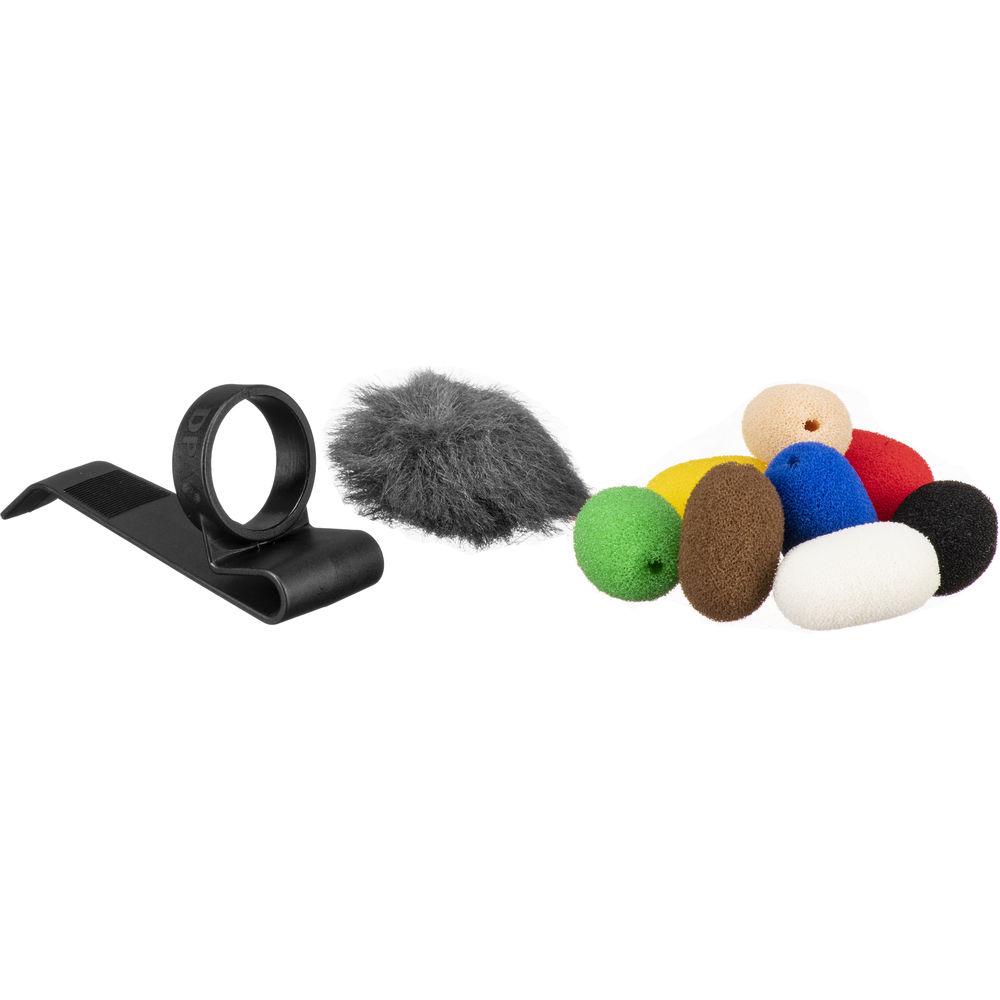

  • SCM0018 Double Miniature Microphone Holder (Black)
  • Miniature Mesh for 4071
  • Mesh Windjammer for 4071 (Gray Fur)
  • Foam Windscreen for 4060, 4061, 4062, 4063, 4071 - 7-Pack
  • SCM0017 Miniature Mic Holder (Black)

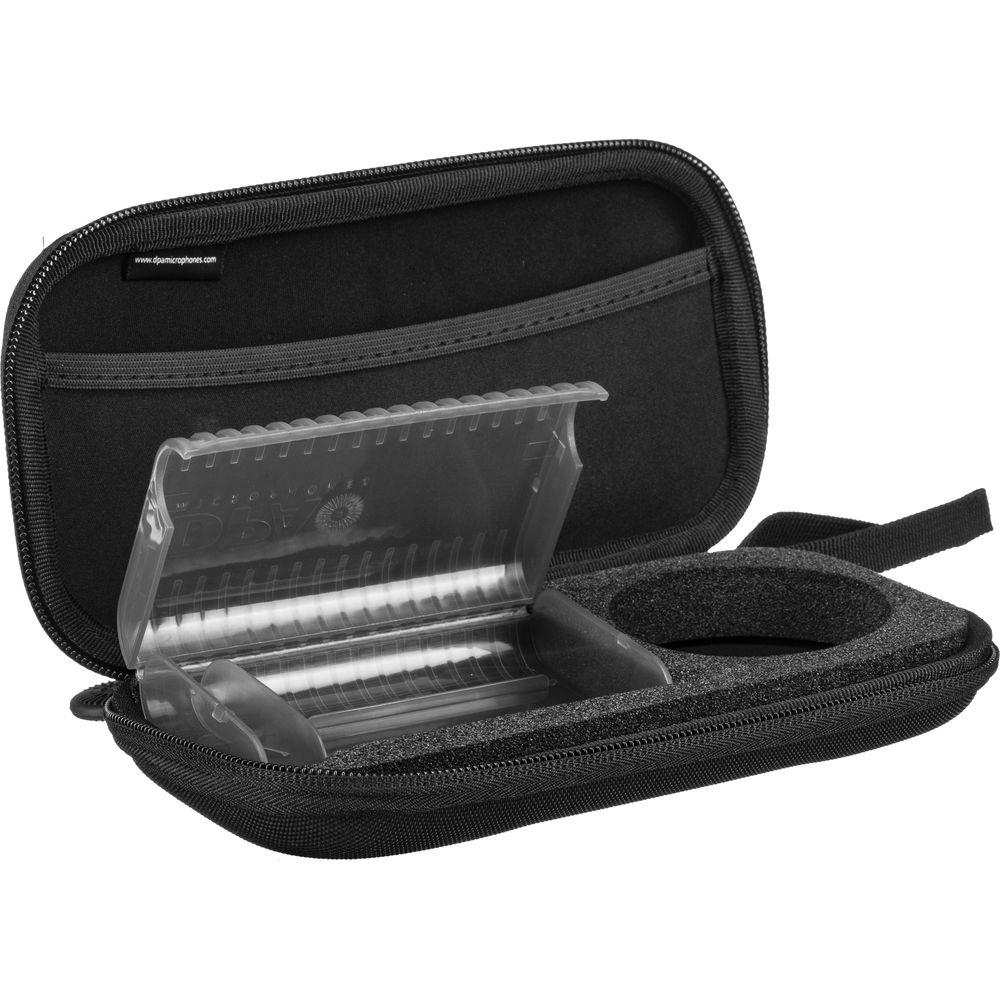

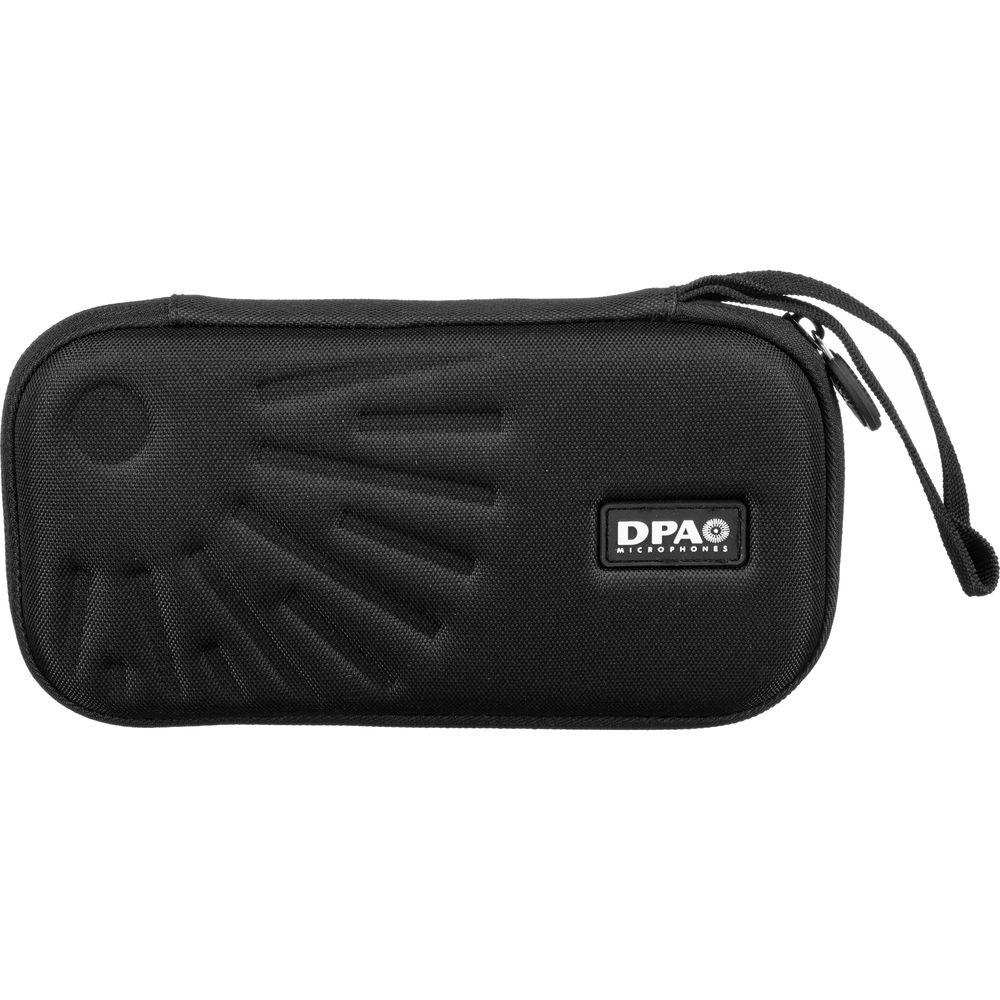

  • Storage Case
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the DPA Microphones EMK4071 ENG EFP Lavalier Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    DPA Microphones KIT-4071-OL-EMK Specs

    Transducer Pre-polarized condenser element with vertical diaphragm
    Polar Pattern Omnidirectional
    Frequency Response 100 Hz to 15 kHz with 5 dB soft boost at 4 to 6 kHz ±2dB
    Dynamic Range (Typical) 97 dB (typical)
    Signal-to-Noise Ratio re. 1 kHz at 1 Pa (94 dB SPL):
    68 dB A-weighted (typical)
    Maximum Input Sound Level 144 dB
    Power Requirements Min 5 V - max 50 V through DPA adapter
    Output Impedance 30 to 40 Ohms
    Output Connectors MicroDot
    XLR out from DAD6024 power supply (included)
    Pad No
    Dimensions .67 x .21" / 17 x 5.4 mm (length x diameter)
    Cable: 5.9' / 1.8 m (length)
    Weight 0.32 oz / 9 g (incl. cable and MicroDot connector)
    Package Weight 0.55 lb
    Box Dimensions (LxWxH) 0.8 x 0.4 x 0.3"
