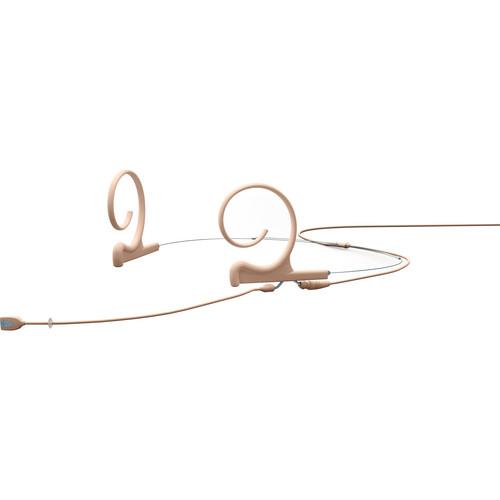

User Manual for DPA Microphones FIDF00-M2 d:fine Dual Ear Directional Headset Microphone Click to enlarge the picture
Contents of the user manual for the DPA Microphones FIDF00-M2 d:fine Dual Ear
- Product category: Microphones for Wireless DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Microphones for Wireless
|
User manual for the DPA Microphones FIDF00-M2 d:fine Dual Ear contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The beige, medium boom FIDF00-M2 d:fine Dual Ear Directional Headset Microphone from DPA Microphones with microdot termination, is ergonomically designed to fit easily and seamlessly. The dual-ear mount is dedicated for more active situations and stays safe in rigorous and energetic performance applications. It can adjust to fit any ear size and head shape while mounting securely and being hardly visible. The microphone can be moved from the left to the right ear, or into an optimum position by just rotating the boom and earhook.This microphone offers accurate, natural voice intelligibility along with its very high SPL capabilities, wherein you can simultaneously speak and sing, with no hint of distortion.Intensive protection against pop and wind noise is integrated in the microphone design and windscreens are included.The directional boom length is available in a size of 3.9" (100 mm). A service connector splits the cable from the microphone boom and allows for quick exchange of cable lengths, colors, and connectors. It is valuable for servicing broken cables.
The d:fine microphone with a boom, earhook, and cable is delivered in a neat, roadworthy box with room for accessories like transmitters and batteries. In the Box DPA Microphones FIDF00-M2 d:fine Dual Ear Directional Headset Microphone (Medium Boom, Beige, Microdot Termination) 3 x Windscreen Make-Up & Moisture Filter Cable Clip 5 x Color Coded Identification Ring Make-Up Cover/Capsule Protection Cap Box Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones FIDF00-M2 d:fine Dual Ear Directional Headset Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4188-DL-F-F00-MH Specs | Directional Pattern | Directional | | Principle of Operation | Pressure-gradient | | Cartridge Type | Pre-polarized condenser | | Frequency Range | Frequency Range: 20 Hz to 20 kHz
Frequency Range, ± 2 dB: 100 Hz to 20 kHz
With 3 dB Soft Boost: 8 to 20 kHz | | Sensitivity | 6 mV/Pa; -44 dB re. 1 V/Pa
Nominal: ± 3 dB @ 1 kHz | | Equivalent Noise Level | A-weighted: 28 dB A re.20 µPa (maximum 30 dB A, typical)
ITU-R BS.468-4: 40 dB (maximum 42 dB, typical) | | Signal-to-Noise Ratio | 66 dB A typical, A-weighted re.1 kHz @ 1 Pa (94 dB SPL) | | Total Harmonic Distortion | < 1% up to 123 dB SPL peak
< 1% up to 120 dB SPL RMS sine | | Dynamic Range | Typical: 95 dB | | Maximum SPL | Peak before Clipping: 144 dB | | Output Impedance | From DAD6001-BC: 100 Ω | | Cable Drive Capability | Up to 984.0' (300.0 m) with DAD6001-BC XLR adapter (sold separately) | | Output Balance Principle | Signal balanced with DAD6001-BC XLR adapter (sold separately) | | Common Mode Rejection Ratio | 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR adapter (sold separately) | | Output Connector | Microdot | | Power Supply | 48 V phantom power ± 4 V with DAD6001-BC XLR adapter (sold separately) | | Current Consumption | Typical: 1.5 mA (microphone)
With DAD6001-BC XLR adapter(sold separately): 3.5 mA | | Cable | Length: 4.3' (1.3 m)
Diameter: 0.06" (1.60 mm) | | Boom Length | 3.9" (100 mm) | | Capsule Diameter | 0.2" (5.4 mm) | | EMC Compatibility | Fully compatible | | Polarity | Pin 2 on DAD6001-BC XLR adapter (sold separately) | | Temperature Range | -40 to 113°F (-40 to 45°C) | | Relative Humidity | Up to 90% | | Microphone Head Size | 0.37 x 0.21 x 0.11" (9.50 x 5.30 x 2.90 mm) | | Weight | Microphone Boom: 0.03 oz (0.80 g)
Earhook: 0.04 oz (1.10 g)
Cable: 0.23 oz (6.60 g)
Total weight: 0.3 oz (8.5 g) | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 9.8 x 5.8 x 2.8" |
