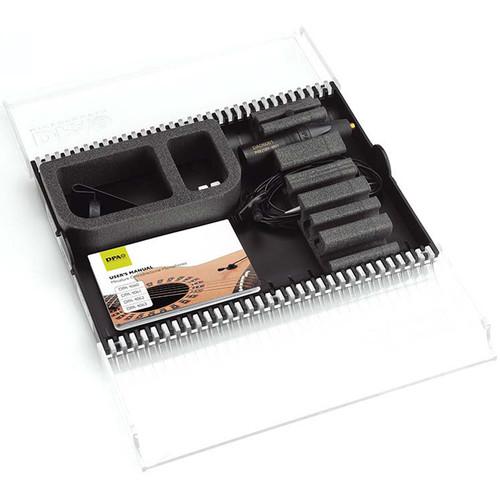

User Manual for DPA Microphones LMK4060 Lavalier Microphone Kit Click to enlarge the picture
Contents of the user manual for the DPA Microphones LMK4060 Lavalier Microphone Kit
- Product category: Microphones for Wireless DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Microphones for Wireless
|
User manual for the DPA Microphones LMK4060 Lavalier Microphone Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The black Lavalier Microphone Kit from DPA Microphones is a kit designed for use in performance applications to capture audio for broadcasters, TV studios, news anchors, stage plays and more. It features a 4060 omnidirectional condenser microphone and is offered with a DMM0017 microphone holder to protect the mic from rough handling. The holder is designed to minimize clothing noise and allows the mic to be mounted on either left or right side of lapels, shirts, and neckties. A cable hook minimizes visual appearance and stabilizes the mic cable behind clothing. The kit includes 2 different protection grids which allow you to acoustically modify the microphones response. The response will vary according to the placement of each grid. The 4060 omnidirectional miniature microphone has a low noise floor and can handle high SPLs. A MicroDot to 3-pin XLR belt clip adapter, miniature mic holder, and 2 protection grids are also included. - Omnidirectional Pattern
- The omnidirectional condenser mic polar-pattern does not need to be aimed directly at the sound source when recording. This offers more detail and a natural sounding sonic character when recording in various environments.
- Different Protection Grids
- The kit includes 2 different protection grids. The soft boost grid introduces a 3 dB soft boost around 8 - 20 kHz for applications where the miniature-microphones need to be placed on the head of the performer. The high boost grid introduces a 10 dB soft boost around 12 kHz for applications where the miniature-microphones need to be placed on the chest of the performer. The metal grids are anodized stainless steel.
- MicroDot to 3-pin XLR (P48) with Belt Clip
- The adapter for powering miniature-microphones via standard P48 phantom power is the DAD6001. It is active signal balanced and improves suppression of induced electromagnetic noise. Common Mode Rejection Ratio (CMRR) is better than 60 dB from 50 Hz to 15 kHz. The adapter is functional at 12 V phantom power but needs 48V ± 4V to reach full specifications. The DAD6001 is designed for use with miniature-microphones from DPA only. A belt clip is included.
In the Box DPA Microphones LMK4060 Lavalier Microphone Kit (Black) d:screet 4060 Omnidirectional Miniature Microphone with MicroDot Connector (Black) DAD6001 MicroDot to 3-pin XLR Adapter (Belt Clip) SCM0017 Miniature Mic Holder (Black) DUA6001 - Grid Cap with Soft Boost Frequency Contour for DPA Miniature Series (Black) (5 Pieces) DUA6002 - Grid Cap with High Boost Frequency Contour for DPA Miniature Series (Black) (5 Pieces) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones LMK4060 Lavalier Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones LMK4060 Specs | | | Characteristics | Directional Characteristics: Omni-directional | | Principle of Operation | Pressure | | Cartridge Type | Pre-polarized condenser element with vertical diaphragm | | Frequency Range | ±2 dB
Soft-Boost Grid: 20 Hz to 20 kHz, 3 dB soft boost at 8 to 20 kHz
High-Boost Grid: 20 Hz to 20 kHz, 10 dB boost at 12 kHz | | Sensitivity | Nominal: ±3 dB at 1 kHz: 20 mV/Pa, -34 dB re. 1 V/Pa | | Equivalent Noise Level | A-Weighted:
Typical: 23 dBA re. 20 µPa
Maximum: 26 dBA
ITU-R BS.468-4:
Typical: 35 dB
Maximum: 38 dB | | S/N Ratio | 1 kHz at 1 Pa (94 dB SPL): 71 dBA | | Total Harmonic Distortion (THD) | <1% THD up to 123 dB SPL peak
<1% THD up to 120 dB SPL RMS sine | | Dynamic Range | Typical 100 dB | | Maximum Sound Pressure Level (SPL) | Peak Before Clipping: 134 dB | | Output Impedance | 30 to 40 Ω | | Cable Drive Capability | Up to 984' (300 m) | | Connector | MicroDot | | Temperature Range | -40 to 113°F (-40 to 45°C) | | Relative Humidity | Up to 90% | | Cable Length | 5.9' (1.8 m) | | Dimensions (Ø x L) | 0.21 x 0.50" (5.40 x 12.70 mm) | | Weight | 0.26 oz (7.5 g) including the cable and MicroDot connector | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 7.8 x 6.1 x 1.6" |
