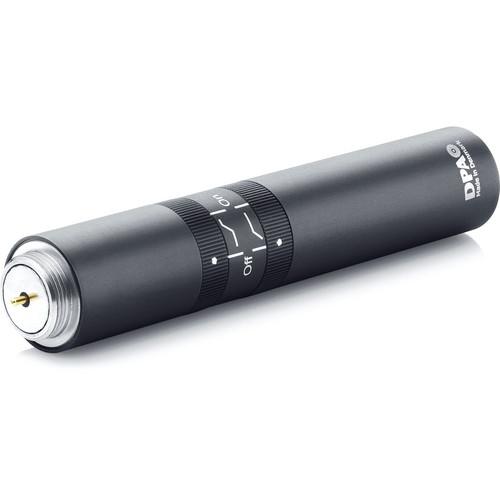

User Manual for DPA Microphones MMP-B Preamplifier Click to enlarge the picture
Contents of the user manual for the DPA Microphones MMP-B Preamplifier
- Product category: Modular Microphone Components DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Modular Microphone Components
|
User manual for the DPA Microphones MMP-B Preamplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The DPA MMP-B Preamplifier is a preamplifier and output stage for DPA Reference Standard MMC series capsules. The modular capsules attach to the MMP-B and the preamplifier provides an XLR output, high quality output signal and 48V phantom power (via external source). - Compatible with the Following Capsules
- MMC4006 Omni Microphone Capsule
MMC4011 Cardioid Microphone Capsule MMC4015 Wide Cardioid Microphone Capsule
MMC4017 Shotgun Microphone Capsule MMC2006 Twin Diaphragm Omni Microphone Capsule
MMC2011 Twin Diaphragm Cardioid Microphone Capsule In the Box DPA Microphones MMP-B Preamplifier 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones MMP-B Preamplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones MMP-B Specs | Output Connector | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase | | Low-Cut Filter | -3 dB: 50Hz | | Noise | Noise with shorted input, A-weighted: 1.1 µV | | Power Supply | 48 V Phantom power (± 4 V)
Output voltage, RMS: > 1.8V Output voltage, peak: > 2.5V
Type of electronic circuit: Active Current consumption: 4.5mA | | THD | @1VRMS, 1kHz: < 0.5 % | | Dynamic Range | 124 dB | | Filters | High boost: +4 dB at 8 kHz. Low cut: First order filter, below 120 Hz | | Output Impedance | < 150 ohm | | Output Balance Principle | Signal balanced | | CMRR | > 40dB | | Temperature | -40 to 113 °F (-40 to 45 °C) | | Relative Humidity | Up to 90% | | Cable Drive Capability | 328' (100m) | | Color | Matte Black | | Dimensions (LxDiameter) | 3.9 x 0.75" (99 x 19mm) | | Weight | 1.3 oz (38g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 10.0 x 6.0 x 3.0" |
