User Manual for DPA Microphones ST2006C Stereo Pair with 2006C Compact Omnidirectional Microphones Click to enlarge the picture
Contents of the user manual for the DPA Microphones ST2006C Stereo Pair with
- Product category: Small Diaphragm Condenser DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Small Diaphragm Condenser
|
User manual for the DPA Microphones ST2006C Stereo Pair with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|

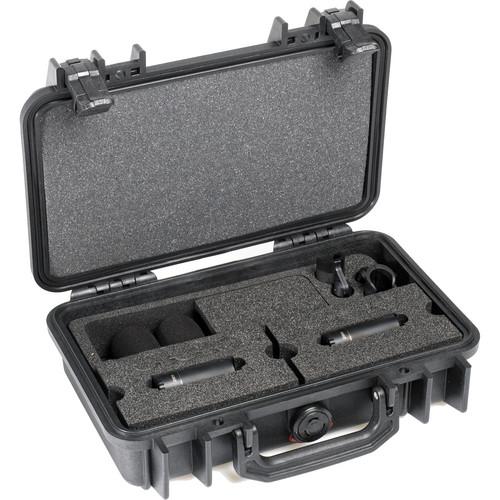

Product description The ST2006C Stereo Pair with 2006C Compact Omnidirectional Microphones from DPA is a kit that consists of two 2006C Microphones, two microphone holders, two windscreens, and one foam-lined Peli carrying case. The microphones are matched within a sensitivity of ±1.5 dB, providing accurate sonic reproduction from both mics. The 2006Cs have a small 2.3" body that allows them to be mounted, hung, or concealed inconspicuously for installation needs. - Microphones matched for sensitivity within ±1.5 dB
- Compact size and authentic sound
- Full-bodied sound from a small-bodied microphone
- Includes Peli case for transportation and protection
In the Box DPA Microphones ST2006C Stereo Pair with 2006C Compact Omnidirectional Microphones 2 x 2006C Twin Diaphragm Omnidirectional Microphone (Compact) 2 x Microphone Holders 2 x Windscreens Peli Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones ST2006C Stereo Pair with 2006C Compact Omnidirectional Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones ST2006C Specs | | | Operating Principle | Pressure Operated | | Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 78 dB A-Weighted | | Equivalent Noise Level | 16 dB A-Weighted
28 dB ITU-R 468 | | Maximum SPL | 139 dB SPL | | THD | < 1% | | Impedance | 100 Ohms | | Load Impedance | 2 kOhms | | Sensitivity | -28 dB at 1 kHz | | CMRR | 50 dB | | Dynamic Range | 114 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2.8 mA | | Operating Voltage | 48 V ± 4 V | | Operating Temperature | -40 to 113°F / -40.00 to 45.00°C | | Operating Humidity | 90 | | Length | 2.28" / 58 mm | | Diameter | 0.75" / 19 mm | | Weight | 2.12 oz / 60 g | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 12.2 x 8.6 x 4.1" |
