User Manual for DPA Microphones ST4011A Stereo Pair with 4011A Cardioid Microphones Click to enlarge the picture
Contents of the user manual for the DPA Microphones ST4011A Stereo Pair with
- Product category: Small Diaphragm Condenser DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Small Diaphragm Condenser
|
User manual for the DPA Microphones ST4011A Stereo Pair with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|

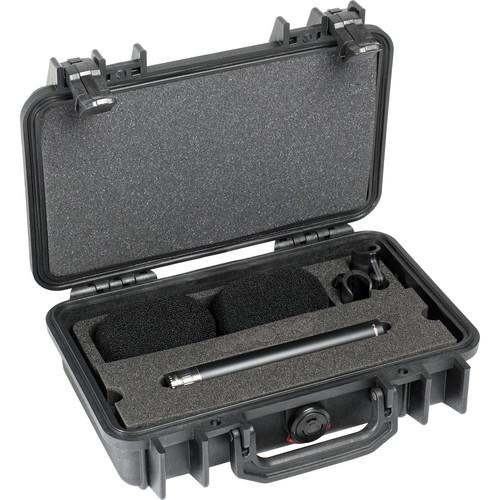

Product description The ST4011A Stereo Pair with 4011A Cardioid Microphones from DPA is kit that includes two 4011A Microphones, two microphone holders, two windscreens, and a foam-lined Peli carrying case. The microphones are matched within ±1 dB on both frequency response and sensitivity, providing accurate sonic reproduction from both mics. The 4011A's are designed to be used for close placement applications, such as near the hammers of a piano, or as drum overheads. - Cardioid reference microphone
- Can handle high sound pressure levels
- Microphones are matched within ±1 dB
- Includes Peli case for transportation and protection
In the Box DPA Microphones ST4011A Stereo Pair with 4011A Cardioid Microphones 2 x 4011A Cardioid Microphone 2 x Microphone Holders 2 x Windscreens Peli Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones ST4011A Stereo Pair with 4011A Cardioid Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones ST4011A Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 0.75" / 19 mm | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 76 dB A-Weighted | | Equivalent Noise Level | 18 dB A-Weighted
25 dB ITU-R 468 | | Maximum SPL | 158 dB SPL | | Pad | -20 dB | | THD | < 1% | | Impedance | 200 Ohms | | Load Impedance | 2 kOhms | | Sensitivity | -40 dB at 1 kHz | | CMRR | 60 dB | | Dynamic Range | 121 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2.8 mA | | Operating Voltage | 48 V ± 4 V | | Operating Temperature | -40 to 113°F / -40.00 to 45.00°C | | Operating Humidity | 90 | | Length | 6.69" / 170 mm | | Diameter | 0.75" / 19 mm | | Weight | 5.57 oz / 158 g | | | | Package Weight | 3.4 lb | | Box Dimensions (LxWxH) | 12.362 x 8.661 x 4.095" |
