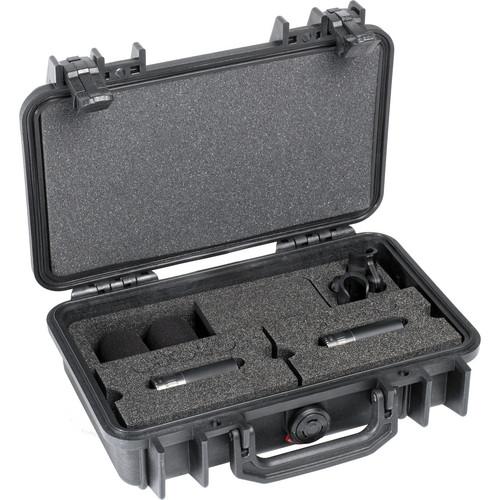

Product description The ST4011C Stereo Pair with 4011C Compact Cardioid Microphones from DPA is a kit that contains two 4011C Microphones, two microphone holders, two windscreens, and a Peli carrying case. The microphones are matched within ±1 dB on both frequency response and sensitivity, providing accurate sonic reproduction from both microphones. The 4011C's cardioid polar pattern and compact design allow them to be used as spot mics for classical recording or close mics for live applications. - Can be used for both PA and live recording
- Microphones matched within ±1 dB
- Low profile mounting options
- Includes Peli case for transportation and protection
In the Box DPA Microphones ST4011C Stereo Pair with 4011C Compact Cardioid Microphones 2 x 4011C Cardioid Microphone (Compact) rrrewqyttzubfzddrybreccu 2 x Microphone Holders 2 x Windscreens Peli Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones ST4011C Stereo Pair with 4011C Compact Cardioid Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4011C Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 0.75" / 19 mm | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 76 dB A-Weighted | | Equivalent Noise Level | 18 dB A-Weighted
25 dB ITU-R 468 | | Maximum SPL | 152 dB SPL | | THD | < 1% | | Impedance | 200 Ohms | | Load Impedance | 2 kOhms | | Sensitivity | -40 dB at 1 kHz | | CMRR | 50 dB | | Dynamic Range | 121 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2.8 mA | | Operating Voltage | 48 V ± 4 V | | Operating Temperature | -40 to 113°F / -40.00 to 45.00°C | | Operating Humidity | 90 | | Length | 2.52" / 64 mm | | Diameter | 0.75" / 19 mm | | Weight | 2.05 oz / 58 g | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 12.2 x 8.5 x 4.2" |
