User Manual for DPA Microphones ST4015A Stereo Pair with 4015A Wide Cardioid Microphones Click to enlarge the picture
Contents of the user manual for the DPA Microphones ST4015A Stereo Pair with
- Product category: Small Diaphragm Condenser DPA Microphones
- Brand: DPA Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DPA Microphones Small Diaphragm Condenser
|
User manual for the DPA Microphones ST4015A Stereo Pair with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DPA Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DPA Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DPA Microphones product will considerably shorten its lifespan!
|
Product description The ST4015A Stereo Pair with 4015A Wide Cardioid Microphones from DPA is a stereo kit that consists of two matched 4015A Wide Cardioid Microphones, two microphone holders, two windscreens, and a Peli Carrying Case. The microphones are matched within ±1 dB on both frequency response and sensitivity for accurate and matched sonic reproduction. Their wide cardioid pattern is designed to provide a broad angle of pick up while still remaining directional, and allows the 4015As to be used with sources such as piano, guitar, marimba, percussion, and orchestral sections. - Wide pickup area and natural sound
- Ambiance pickup with some directionality
- Peli Case transportation and protection

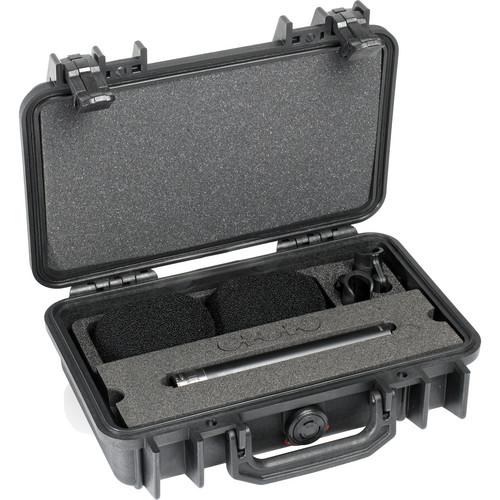

In the Box DPA Microphones ST4015A Stereo Pair with 4015A Wide Cardioid Microphones 2 x 4015A Wide Cardioid Microphone xeeqsyrtaufscaqztsayayswa 2 x Mic Holders 2 x Windscreens Peli Carrying Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones ST4015A Stereo Pair with 4015A Wide Cardioid Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDPA Microphones 4015A Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 0.75" / 19 mm | | Polar Pattern | Wide-Angle Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 76 dB A-Weighted | | Equivalent Noise Level | 18 dB A-Weighted
25 dB ITU-R 468 | | Maximum SPL | 158 dB SPL | | Pad | -20 dB | | THD | < 1% | | Impedance | 200 Ohms | | Load Impedance | 2 kOhms | | Sensitivity | -40 dB | | CMRR | 60 dB | | Dynamic Range | 121 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2.8 mA | | Operating Voltage | 48 V ± 4 V | | Operating Temperature | -40 to 113°F / -40.00 to 45.00°C | | Operating Humidity | 90 | | Length | 6.69" / 170 mm | | Diameter | 0.75" / 19 mm | | Weight | 5.57 oz / 158 g |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 50 owners. Add your rating and experience with the product.
