Product description The VIDMK-4060 digital audio package from DPA Microphones includes a d:vice 2-channel mobile audio interface and a black d:screet 4060 miniature omnidirectional lavalier microphone with its SCM0004 miniature microphone clip and three DUA0060 foam windscreens. It is well suited for recording the voice of a single speaker/journalist directly into a smartphone or tablet, for live broadcast applications, video segment production, social media outlets such as Facebook Live, and more. - d:vice 2-Channel Mobile Audio Interface for iOS, Mac Windows

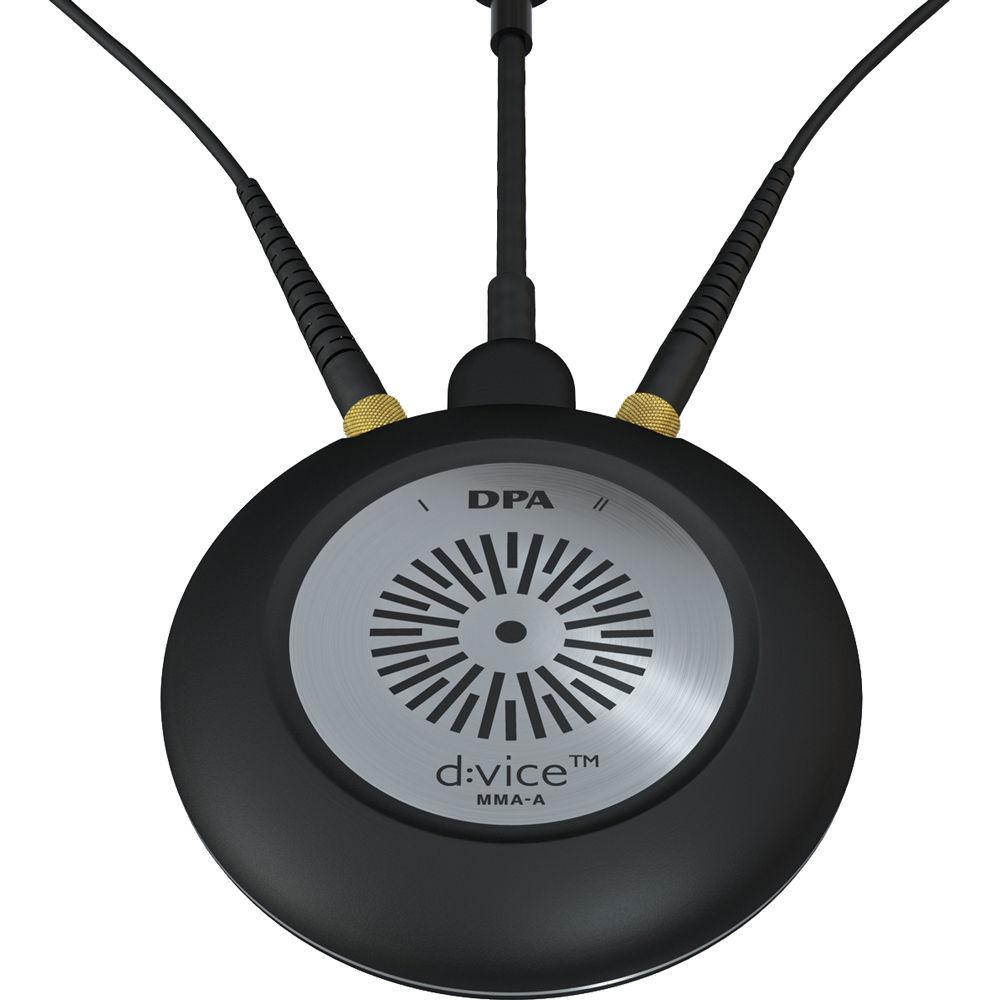

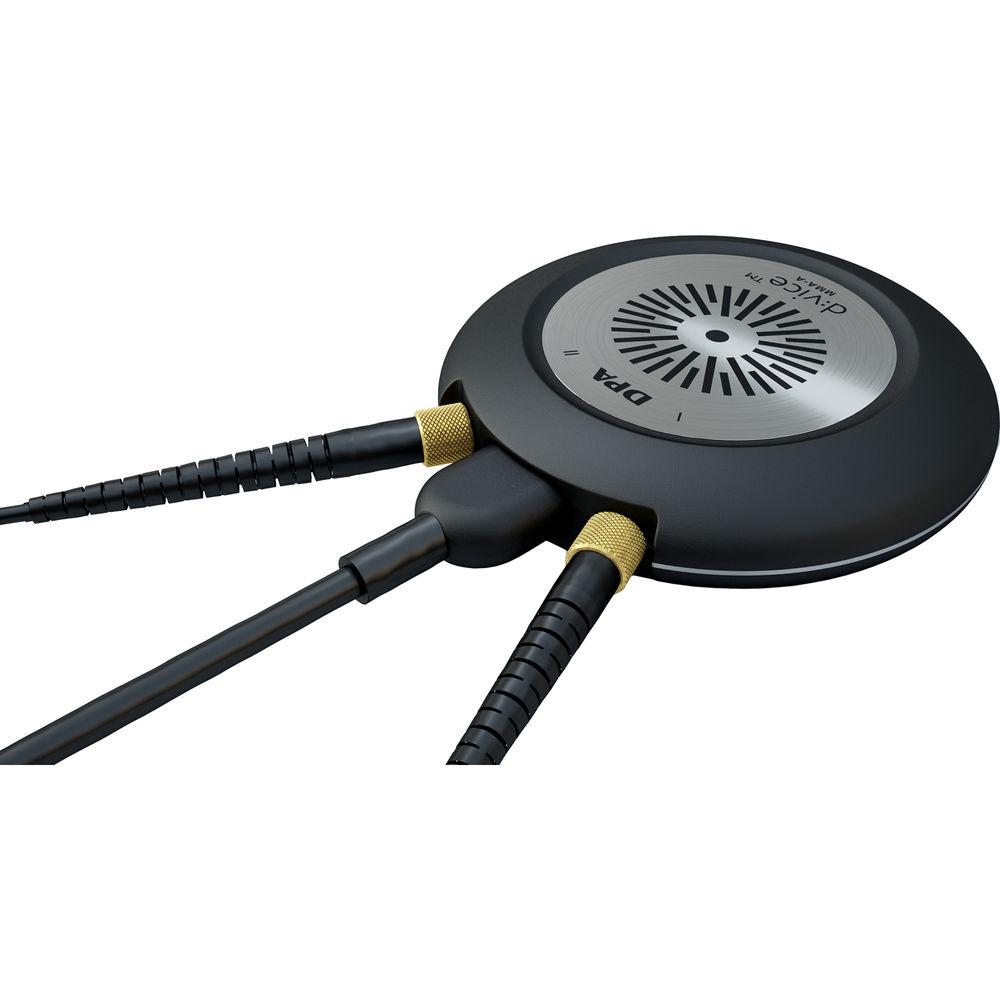

- Introducing the d:vice MMA-A Digital Audio Interface
The d:vice from DPA Microphones is a mobile A/D audio interface developed for content makers who need to capture high-fidelity audio with their smartphones or tablets, when on the go. The thin, portable design lets you discreetly wear the unit in your pocket, ideal when recording interviews, music or ambience for video, live broadcast, social media, and more.The d:vice features two high-quality microphone preamps with MicroDot connectors, which both provide phantom power to the company's lavaliers, shotguns and modular mic capsules, as well as to third-party mics equipped with MicroDot cables.The free DPA App allows you to set parameters before using the d:vice with a third-party app such as Skype, Facebook Live, and others. Choose between mono, dual-mono or stereo output modes, and independently control the level of each mic. The App also lets you store four presets, allowing for quick setup to suit specific tasks.The unit connects to all iOS devices using the Lightning connector or to Windows and Mac computers via the included USB Micro-B to USB Type-A cable. - Compact audio interface for content makers who need to capture high-fidelity audio on their smartphones or tablets
- Ideal for video, live broadcast, social media, on-location music recording, and more
- 2-channel microphone preamplifier, with MicroDot inputs and phantom power – connect lavalier mic, shotgun mic, modular mic capsule or any third-party mic with MicroDot connector
- Choose between three output modes: Mono for one mic on one person, dual-mono for two people with both mic signals mixed down to mono, stereo for music or ambience recording
- Thin, portable design – discretely fits in pockets
- Works with third-party Apps supporting Core Audio – Facebook Live, Skype, LiveU, AviWest, and more
- Free DPA App lets you set parameters before using d:vice with third-party App – four presets can be saved by user, allowing quick setup for specific tasks
- Connects to all iOS devices using Lightning connector or to Windows and Mac devices via included USB Micro-B to USB Type-A cable
- d:screet 4060 Omnidirectional Miniature Microphone with MicroDot Connector (Black) The black d:screet 4060 Omnidirectional Miniature Microphone with MicroDot Connector from DPA is a miniature lavalier microphone designed for use in performance and theatrical applications. The 4060 lavalier features a condenser element with a frequency and sensitivity response that will accurately reproduce audio signals from the human voice and instruments. The capsule is designed with a double vent protection system and moisture resistant materials inside the capsule, which ensure maximum protection from humidity and moisture caused by perspiration, makeup, etc.The 4060 includes interchangeable capsule protection grids that alter the signal character of the microphone. A High-Boost Grid creates a peak at 12 kHz, creating an airy texture to audio signals. The Soft-Boost Grid creates a subtle boost between 8-20 kHz, enhancing signal presence. With a SPL rating of 134 dB, the microphone is more than capable of reproducing transient (peaking) audio before clipping. The 4060 features a MicroDot output connector, compatible with various wireless microphone transmitters or power supplies with standard XLR outputs.
- Moisture Resistant
- The 4060 features a double vent protection grid and moisture resistant materials, which prevent damage from humidity, perspiration and makeup.
- Frequency Altering Grids
- The microphone includes "High Boost" and "Soft Boost" protection grids that alter the frequency response and accentuate high-frequency signals.
- Sensitive Condenser
- The condenser element provides a wide frequency response while boasting an SPL rating of 134 dB.
- Omnidirectional Polar Pattern
- The omnidirectional polar pattern effectively captures audio at the direct and off-axis sections of the capsule.

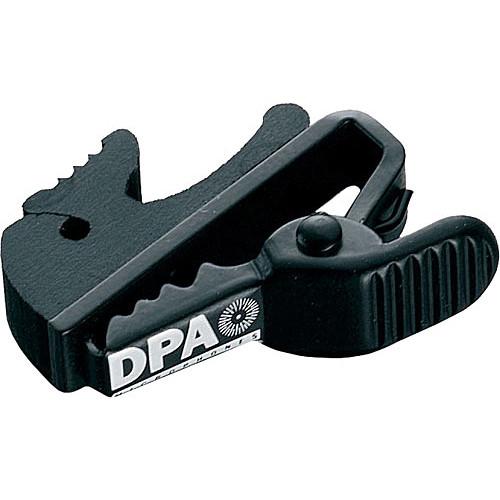

- SCM0004 Miniature Microphone Clip, Small (Black) The black SCM0004 from DPA is a miniature microphone clip especially designed for quick and easy mounting of a DPA miniature microphone on the chest of a speaker or performer. It can be used for situations where an inconspicuous mount is required, or when fast changes on the fly are necessary.
In the Box Bundle Items d:vice 2-Channel Mobile Audio Interface for iOS, Mac Windows ecxfxzxbfb - USB Micro-B to USB Type-A Cable
d:screet 4060 Omnidirectional Miniature Microphone with MicroDot Connector (Black) - High-Boost Protection Grid
- Soft-Boost Protection Grid
SCM0004 Miniature Microphone Clip, Small (Black) ecxfxzxbfb
Also Includes - 3 x DUA0060 Foam Windscreens
Table of Contents
|
Upload User Manual
Have you got an user manual for the DPA Microphones VIDMK-4060 d:vice Audio Interface Kit with d:screet 4060 Lavalier Mic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - d:vice 2-Channel Mobile Audio Interface for iOS, Mac Windows
| Input Connector | 2 x MicroDot | | Phantom Power | 5 V to 50 V | | | | Box Dimensions (LxWxH) | 5.7 x 4.8 x 2.5" | - d:screet 4060 Omnidirectional Miniature Microphone with MicroDot Connector (Black)
| | | Sound Field | Mono | | Operating Principle | Pressure Operated | | Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 71 dB A-Weighted | | Equivalent Noise Level | 26 dB A-Weighted | | Maximum SPL | 134 dB SPL Peak | | THD | < 1% | | Impedance | 40 Ohms | | Sensitivity | 20 mV/Pa at 1 kHz | | Dynamic Range | 100 dB A-Weighted | | | | Output Connector | Microdot | | Cable Length | 5.9' / 1.80 m | | Operating Voltage | 5 to 50 V | | Operating Humidity | 0 to 90% (Recommended) | | Length | 0.5" / 1.27 cm | | Diameter | 0.21" / 5.33 mm | | Weight | 0.26 oz / 7 g | | | | Box Dimensions (LxWxH) | 4.3 x 2.75 x 1.0" | - SCM0004 Miniature Microphone Clip, Small (Black)
| Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 4.0 x 3.0 x 1.0" |
